- Page 1 BR-TMQ7002-DVR Instruction Manual V1.0 2022.3...
- Page 2 Packing list Before using this machine, please check the following items according to the machine model to check whether the following items are complete, if there are omissions please contact customer service. BR-TMQ7002-DVR 1 台 BR-BK04 Bracket 13PIN Power Cable Instruction Manual SD Storage Card...
-
Page 3: Specifications

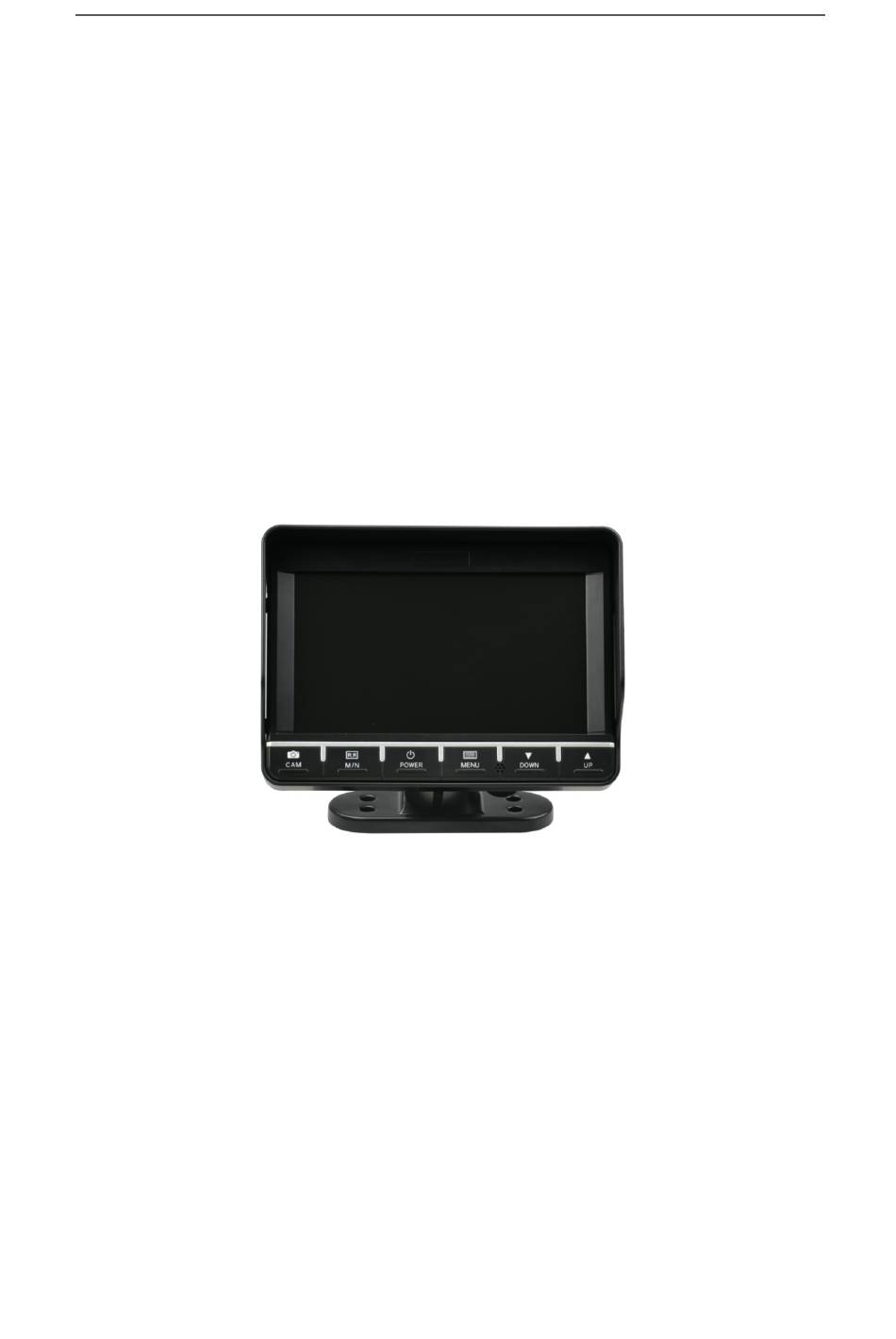

Specifications: MODEL BR-TMQ7002-DVR Screen size 7“ IPS Super TFT panel Aspect Ratio 16:9 image Video Input 4 channels Splid（CVBS/AHD720P/1080P） Audio Input 4 Channels Speaker 1 Channel(Options) Trigger 4 channels Resolution 1024 x 3(RGB) x 600 520cd/m Brightness Contrast radio 700:1... - Page 4 Definition 1. CAM 2. M/N 3. POWER 4.MENU 5. DOWN 6. UP M/N Explain: 1. Positive mirror switching 2. Always switch day and night mode by 3 seconds Power cables and interface define Instructions： 1. The power input is DC9-36V. The positive pole is connected to the red tail...
-
Page 5: Function Menu
wire, and the negative pole is connected to the black tail wire. 2. AV1、AV2、 AV3、AV4 connect the camera separately. 3. Trigger AV1, Trigger AV2, Trigger AV3, Trigger AV4 separately trigger the video AV1、AV2 、AV3、AV4. Function Menu Press arise function menu， Move the cursor to function，Press OK，Enter options； Time Setup Into time setup GUI，Press options year days & times，Press... -
Page 6: Display Setup
Display Setup Into display function, Move the cursor adjust brightness, saturation, contrast hue, proceed line feed， proceed return； Recording Setup Input SD storage Card to device SD card Slot 插入 SD 卡， into systemsetup menu format SD Card， Return display image. - Page 7 Press Start recording，Display channel arise a red dot flashed，more press Stop recording； Playback Press arise function menu， Move the cursor optional palyback，Press OK，Press Options recording channel folder，mor press start play，Press Delete recording；again Press sure to delete， cancel to delete，The playback menu press Return Function menu；...
- Page 8 Sqilt Setup Into split function, Move the cursor optional placement result, Press OK， Press return；support 2channels、3 channels、4 channels split styles displays.
-
Page 9: System Setup
System Setup Into system setup menu, Press ， Move the cursor to function ， Press ok， return； System Menu Instructions： −Reversing Line: On or Off ， three reversing line styles to choose ， When triggered, channel 1 shows the reversing line; −Astern delay: Choose reversing line delay time，exist 3S,6S,9S options； −Language: Language options ( 简... - Page 10 1Min,3Min； −Timestamp: The time stamp displayed by the screen is on/off； −Format : Format SD Storage Card into device Card slot;...
