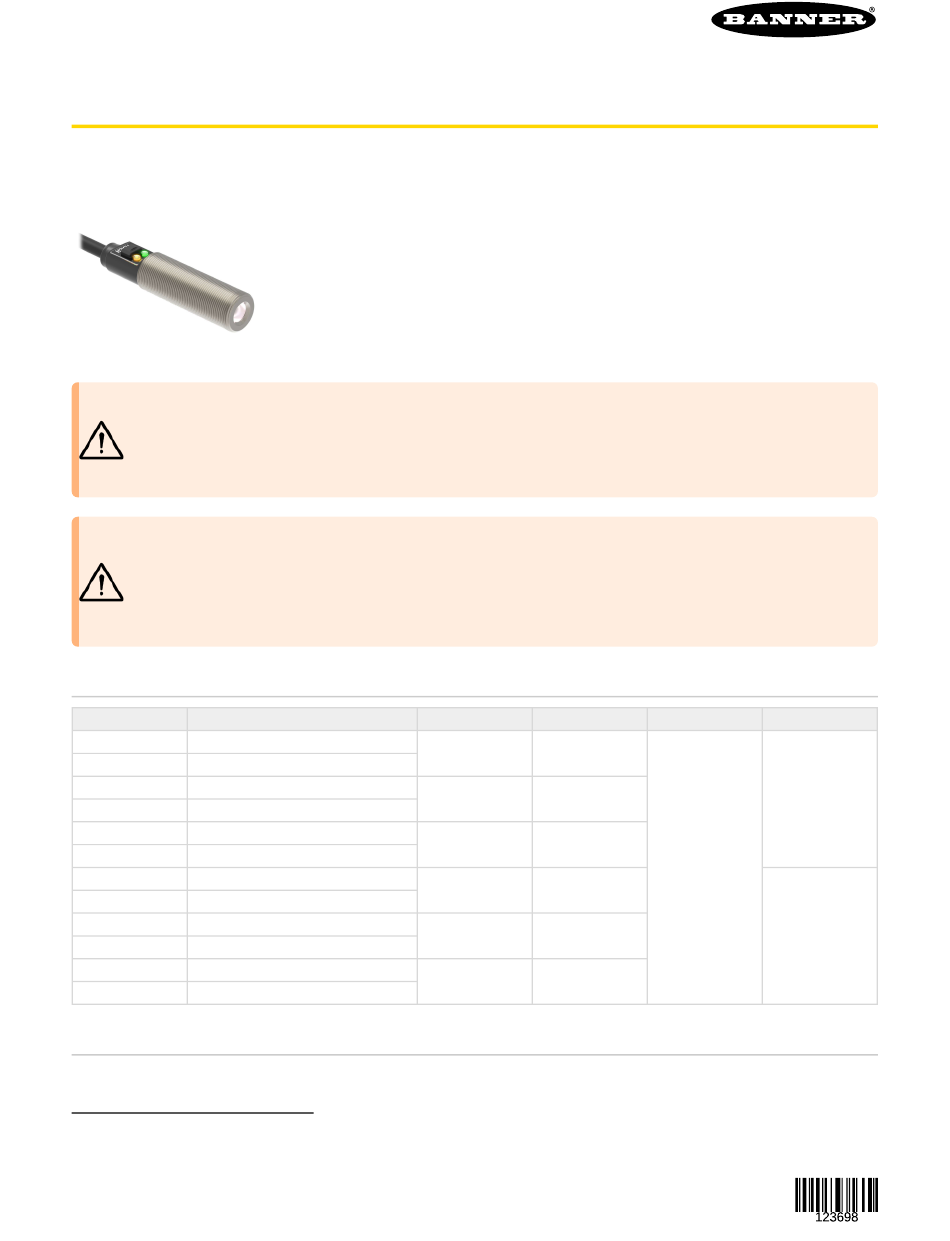

Banner M18T Series Quick Start Manual

M18T Series Infrared T-GAGE™ Temperature
Sensor with Analog Output
Features
18 mm sensor with 0 to 10 V and 4 to 20 mA analog output and TEACH configuration
To view or download the latest technical information about this product, including specifications, dimensions, accessories, and wiring, go
to www.bannerengineering.com.
WARNING:
• Do not use this device for personnel protection
• Using this device for personnel protection could result in serious injury or death.
• This device does not include the self-checking redundant circuitry necessary to allow its use in personnel
safety applications. A device failure or malfunction can cause either an energized (on) or de-energized (off)
output condition.
WARNING:
• N'utilisez pas ce dispositif pour la protection du personnel.
• L'utilisation de ce dispositif pour la protection du personnel pourrait entraîner des blessures graves ou
mortelles.
• Ce dispositif n'est pas équipé du circuit redondant d'autodiagnostic nécessaire pour être utilisé dans des
applications de protection du personnel. Une panne ou un dysfonctionnement du dispositif peut entraîner
l'activation ou la désactivation de la sortie.
Models
Model
M18TUP8 5-wire, 2 m (6.5 ft) shielded cable
M18TUP8Q 5-pin M12 integral QD
M18TUP6E 5-wire, 2 m (6.5 ft) shielded cable
M18TUP6EQ 5-pin M12 integral QD
M18TUP14 5-wire, 2 m (6.5 ft) shielded cable
M18TUP14Q 5-pin M12 integral QD
M18TIP8 5-wire, 2 m (6.5 ft) shielded cable
M18TIP8Q 5-pin M12 integral QD
M18TIP6E 5-wire, 2 m (6.5 ft) shielded cable
M18TIP6EQ 5-pin M12 integral QD
M18TIP14 5-wire, 2 m (6.5 ft) shielded cable
M18TIP14Q 5-pin M12 integral QD
Overview
The T-GAGE analog sensor is a passive, non-contacting, temperature-based device. It is used to detect object temperature within a sensing
window and output a proportional voltage or current.
(1)
To order the 9 m (30 ft) PVC cable model, add the suffix "W/30" to the cabled model number. For example, M18TUP8 W/30. Models with a quick disconnect
require a mating cordset. See "Cordsets - MQDEC2 Series" on page 8
Original Instructions
27-May-25
• Fast 75 ms response time
• Easy-to-use TEACH configuration without potentiometer adjustments
• Small, self-contained package; no auxiliary controller needed
• Rugged encapsulated design for harsh environments
• Choice of 2-meter or 9-meter unterminated cable, or 5-pin M12 quick disconnect
• Product motion is not required for sensing
• Remote configuration is available in both Static and Dynamic modes
• Alarm output for signal maximum
• Configuration for either positive or negative analog slope based on the TEACH order
(1)
D:S Ratio
Cable
8:1
6:1
14:1
8:1
6:1
14:1
for more information.
© Banner Engineering Corp. All rights reserved.
www.bannerengineering.com
Sensing Face Supply Voltage
Integrated lens
Enclosed Plastic face
(for food industry use)
Germanium lens
12 V DC to 30 V DC
Integrated lens
Enclosed Plastic face
(for food industry use)
Germanium lens
Output
0 V DC to 10 V DC
analog, plus PNP
Alarm
4 to 20 mA analog,
plus PNP Alarm
p/n: 123698 Rev F
