Summary of Contents for Parasol OZGLOW P40

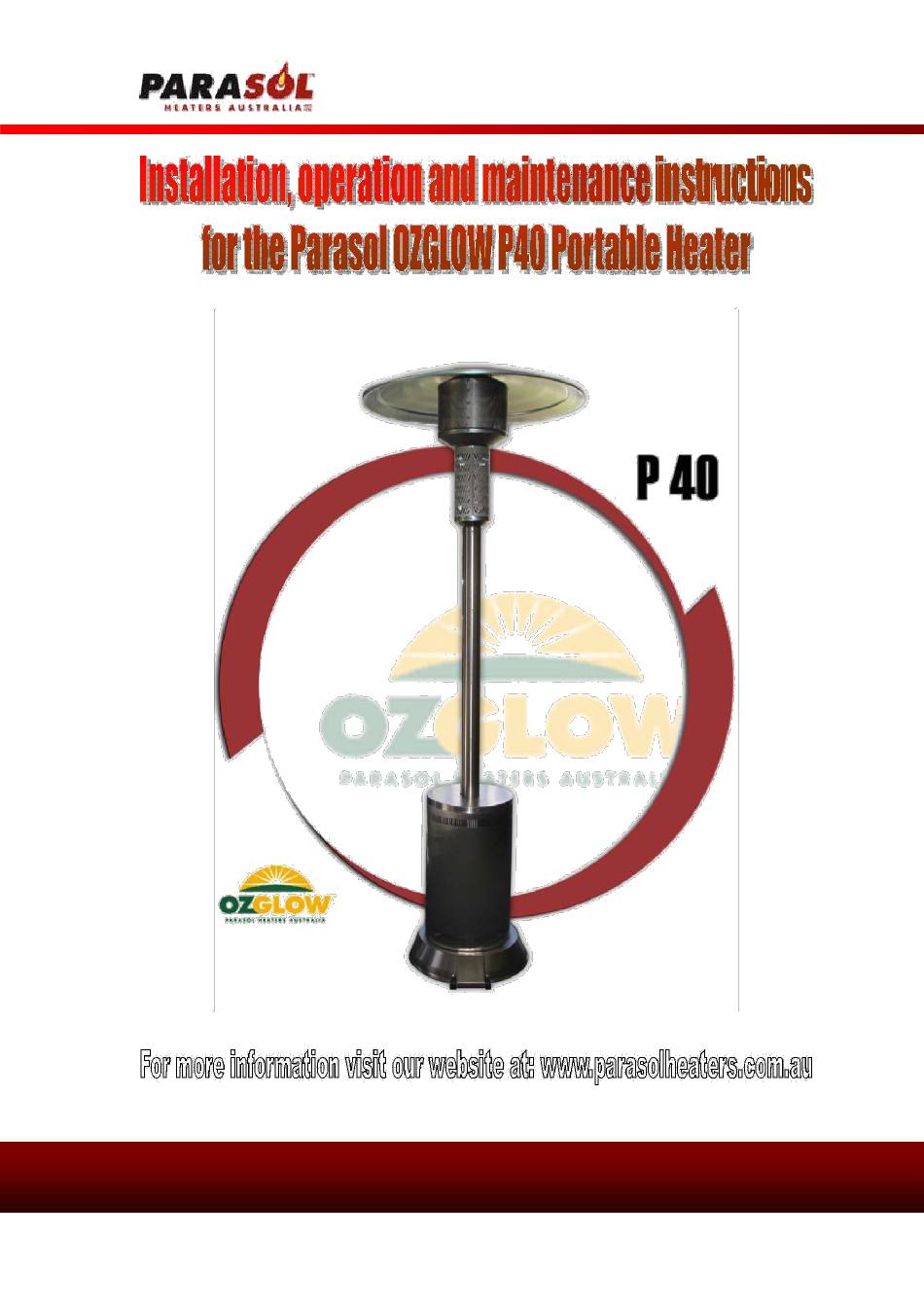

- Page 1 Patio Heater Instructions OZGLOW P40 Portable © PARASOL HEATERS AUSTRALIA MELBOURNE 61 3 9549 4444, 61 3 9549 4466 | SYDNEY 61 2 9624 4486 | BRISBANE 61 7 3807 9094 www.parasolheaters.com.au Page 1 of 12 Created on 09/06/2022...
-
Page 2: Table Of Contents
Patio Heater Instructions OZGLOW P40 Portable CONTENTS PRODUCT DESCRIPTION ..................IMPORTANT INFORMATION REGARDING UNIT ..........GENERAL MAINTENANCE ..................4 DIMENSIONS and COMPONENTS ................UNIT CLEARANCE ...................... 6 UNIT CLEARANCE – PATIO RESTAURANT ............HEATER SPACING ...................... 7 OPERATING INSTRUCTIONS ................... 8 HEATER ASSEMBLY INSTRUCTIONS .............. -
Page 3: Product Description
5-metre circle. All Parasol gas heaters have stainless steel burner heads and are certified. Furthermore, the portable P40 unit has the added safety of a 'tilt' switch which shuts the pilot &... -
Page 4: Important Information Regarding Unit
For all other installation requirements refer to code AS/NZS 5601 - gas installations. The OZGLOW P40 patio heater is for use with gas supplied from a 9KG propane bottle. Gas pressure details are on the appliance data plate fitted above the gas valve. -
Page 5: Dimensions And Components
Patio Heater Instructions OZGLOW P40 Portable DIMENSIONS and COMPONENTS Overall height 2370mm. Overall width 890mm. © PARASOL HEATERS AUSTRALIA MELBOURNE 61 3 9549 4444, 61 3 9549 4466 | SYDNEY 61 2 9624 4486 | BRISBANE 61 7 3807 9094 www.parasolheaters.com.au... -
Page 6: Unit Clearance
Patio Heater Instructions OZGLOW P40 Portable UNIT CLEARANCE The OZGLOW heater must have the following clearances from combustible materials: 300mm above, 600mm at the sides and 1200mm below. This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. -
Page 7: Unit Clearance - Patio Restaurant
Patio Heater Instructions OZGLOW P40 Portable UNIT CLEARANCE – PATIO RESTAURANT Illustrates a patio restaurant completely exposed on three sides. For optimum heating results eight heaters are used, Fig. 1: located as shown. No air heating efficiency counted this installation. -
Page 8: Operating Instructions
Patio Heater Instructions OZGLOW P40 Portable OPERATING INSTRUCTIONS When this OZGLOW heater has been assembled follow the lighting instructions on the data plate and test the heater operation. On the first light up or when the bottle has been changed it may take several minutes to purge the air from the pilot line. -
Page 9: Heater Assembly Instructions
Patio Heater Instructions OZGLOW P40 Portable HEATER ASSEMBLY INSTRUCTIONS 1. Secure the 3 brackets to the base using the bolts provided. These are the longest bolts in the package. 2. Bolt the pole transition to the top of the legs using the short bolts. - Page 10 Patio Heater Instructions OZGLOW P40 Portable HEATER ASSEMBLY INSTRUCTIONS (Continued) 4. Fit the pole to the heater head using the screws supplied. Face the warning label to the front. 5. Fit the reflector to the heater head and secure with the wing nuts and flat washers supplied.
- Page 11 All pressure details are on the data plate. If the heater cannot be adjusted properly contact Parasol Heaters Australia. © PARASOL HEATERS AUSTRALIA MELBOURNE 61 3 9549 4444, 61 3 9549 4466 | SYDNEY 61 2 9624 4486 | BRISBANE 61 7 3807 9094 www.parasolheaters.com.au...
-
Page 12: Warranty
Warranty is limited to the heater head being returned to our factory for repair or replacement parts. Parasol Heaters Australia Pty Ltd will not be liable for any other expenses to the customer, except as stated above. This heater is manufactured in Australia by:...
