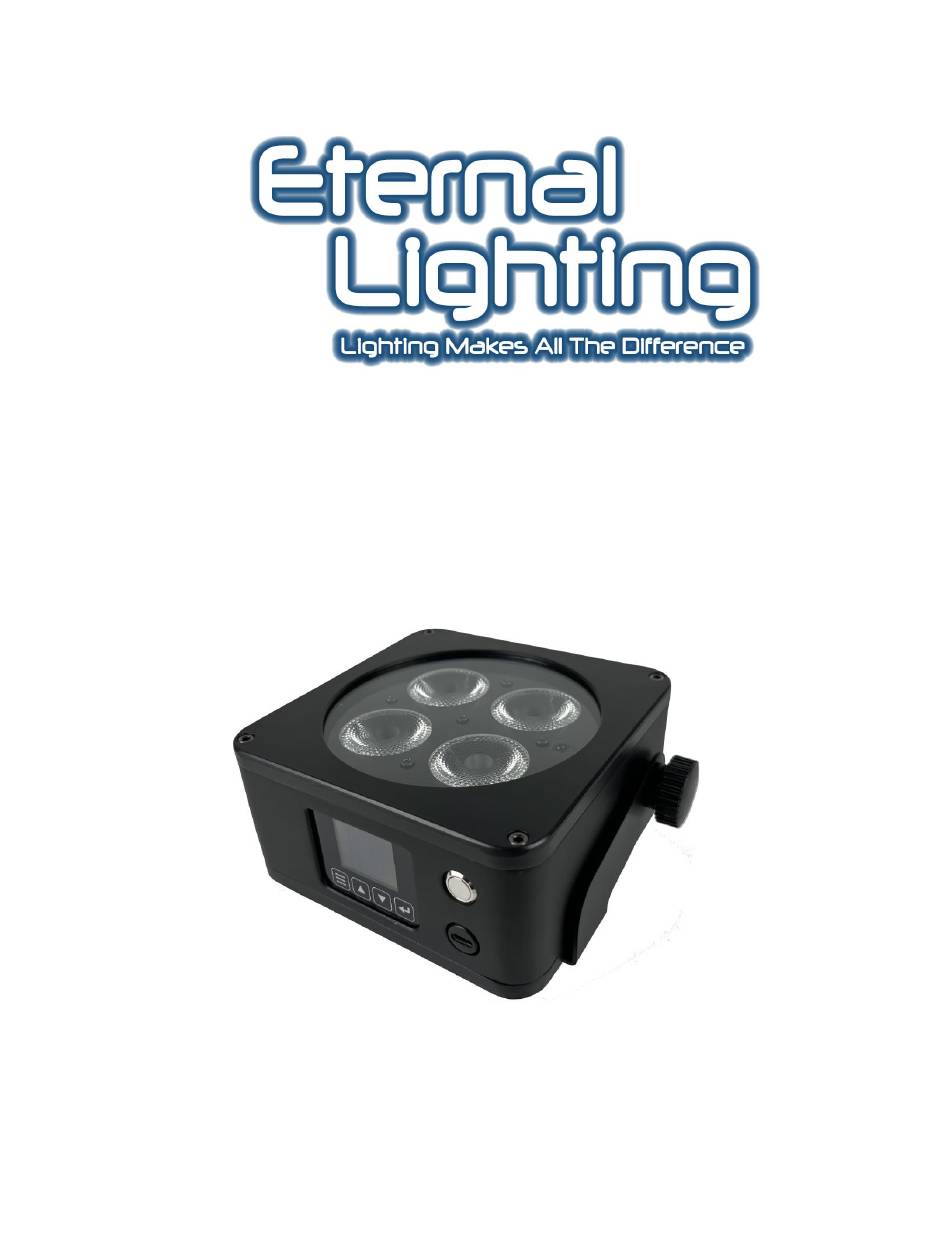

- Page 1 ICON4™ User Manual ICON4™ Eternal Lighting 2024...
- Page 2 Wireless DMX Receiver that is also a Transmitter (300ft line of sight) • Up to 20+ run time hours per charge based on a single color LED • RF Remote control • IR Remote control • USB-C Power Input ICON4™ Eternal Lighting 2024...
- Page 3 6A CH DMX Channel 8A CH 11CH 13CH 13A CH Receive Operating Transmit WDMX Setting Link Receive Reset 01~50 Green 000-255 Preset Dimmer Blue 000-255 Strobe White 000-255 Amber 000-255 Mode 000-255 Custom 00-5-10 00-5-10 00-5-10 ICON4™ Eternal Lighting 2024...
- Page 4 Operating: Press Enter, then the Up or Down button to choose an option. ▪ Receive (Rx): Press Enter to make the selection ▪ Transmit (Tx): Press Enter to make the selection ▪ Off: Press Enter to make the selection to turn off wireless communication. ICON4™ Eternal Lighting 2024...
- Page 5 Static will have the light go to the static color it was manually set on (either a preset color or custom A, B, C, D) if the signal is lost from the transmitter. o DimmerCurve: There are four options: Linear, Exp, Log, S-Curve. See chart for reference. ICON4™ Eternal Lighting 2024...
- Page 6 RED dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) GREEN dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) BLUE dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) WHITE dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) Mode Function ICON4™ Eternal Lighting 2024...
- Page 7 BLUE dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) AMBER dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) WHITE dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) UV dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) Mode ICON4™ Eternal Lighting 2024...
- Page 8 Master Dimer Strobe slow to fast (0-15 off, 16-255 slow to fast) 11 CH Mode Function Value RED dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) GREEN dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) ICON4™ Eternal Lighting 2024...
- Page 9 UV dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) RGBW Master dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) AMBER dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) UV dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) ICON4™ Eternal Lighting 2024...
- Page 10 255 Color Snap Red to Green to Blue to White to Amber) CH11 Auto speed 0-255 CH12 Strobe slow to fast (0-15 off, 16-255 slow to fast) CH13 Sound (0-15 off, 16-255 change through preset colors) For more information, please contact Support by email at support@eternallighting.com ICON4™ Eternal Lighting 2024...
