Summary of Contents for TOLSEN TOOLS GARDENEST 79627

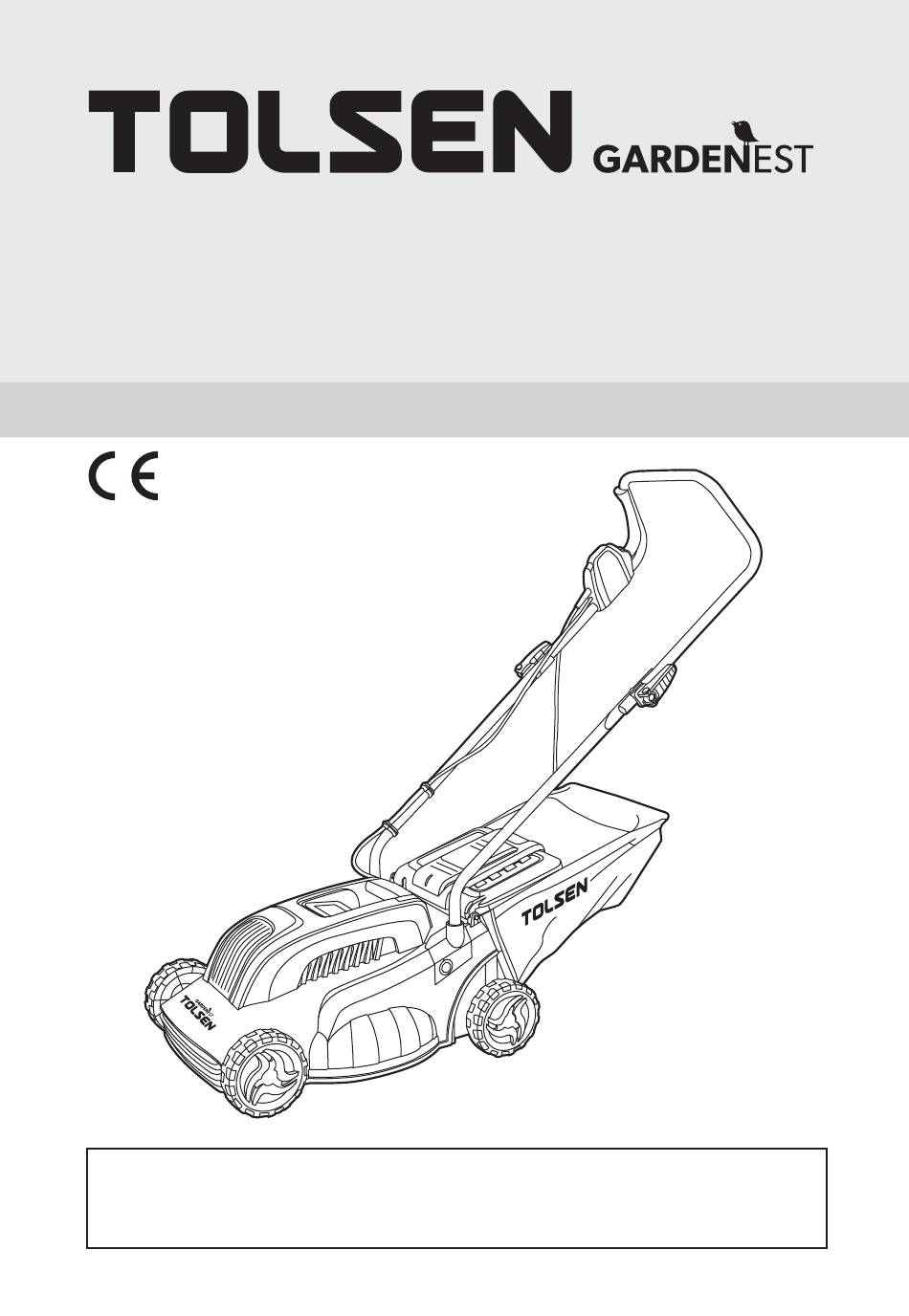

- Page 1 79627 ELECTRIC LAWN MOWER INSTRUCTION MANUAL 1300W SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.
-
Page 2: Important Safety Information
SAFETY IMPORTANT SAFETY INFORMATION This appliance can be used by children aged from 18 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. -
Page 3: Maintenance And Storage
SAFETY 9. Do not tilt the appliance when switching on the motor, except if the appliance has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and li only the part which is away from the operator. Always ensure that both hands are in the operating position before returning the appliance to the ground. -
Page 4: Specifications
SPECIFICATIONS TECHNICAL DATA Nominal voltage: 230-240V, 50 Hz Power: 1300 W Rotation speed: 3300 /min Cutting width: 330mm Height Adjustment: 25-60mm with 3 position, central Grass collection box capacity: 30 L Weight: 9.5 kg Noise emission values measured according to relevant standard 2000/14/CEE: Acoustic pressure level LpA = 81 dB(A), K = 3 dB(A) Acoustic guaranteed power level LwA = 96 dB(A) ATTENTION ! The sound power pressure may exceed 85 dB(A), in this case individual hearing protection must... - Page 5 FUNCTIONS FUNCTIONS 1. ON/OFF switch 2. Power plug 3. Upper handle 4. Handle knob 5. Lower handle 6. Carry handle 7. Wheel 8. Back cover 9. Grass bag...
- Page 6 SET UP ASSEMBLY Assembly 1. Insert the lower handles into the holes provided in the deck (Fig 1) 2. Attach the cable clips to the upper handle (Fig 2) 3. Attach the upper handle with bolts and knob to the lower handles (Fig 3) 4.
-
Page 7: Height Of Cut
SET UP Adjusting the Cutting Height Warning: The blades continue to rotate for a few seconds a er the machine is switched off, a rotating blade can cause injury. Height of cut is adjusted by raising or lowering the Front and Rear wheels. ( Fig 6 & Fig 7) There are three heights of cut on this product. - Page 8 SET UP Mowing For cutting convenience, it may be best to start mowing at a point close to the power supply and to work your way away from the supply. Mow the lawn at a right angle from the power supply and place the power cable to the side which has already been cut.
-
Page 9: Maintenance And Servicing
MAINTENANCE AND SERVICING 1. Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure. 2. We recommend that you clean the device immediately each time you have finished using it. 3. - Page 10 Service Damaged switches must be replaced by our a er-sales service department. If replacing the power cord is necessary, it should be done by the manufacturer or his agent to avoid a hazard. Storage Always clean your mower before storage. Store your mower in a clean, dry environment. To avoid mould on remaining contents, make sure the grass collect bag is empty and dry.
-
Page 11: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING problem possible causes Likely Solutions Machine fails to Power turned off Turn power on operate Mains socket faulty Use another socket Extension cable damaged Inspect cable, replace if damaged. Fuse faulty/blown Replace fuse Mower in long grass Increase height of cut and tilt mower Motor protector has activated Allow to cool and increase height of cut Safety cut out has activated... -
Page 12: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY SUZHOU TOLSEN TOOLS CO.,LTD. 198 HUASHAN ROAD, ZHANGJIAGANG, JIANGSU, CHINA Declare that the product 79627 Lawn mowers Complies with the essential health and safety requirements of the following Directices: council directive 2006/42/EC Standards and technical specifications referred to:... - Page 13 SUZHOU TOLSEN TOOLS CO.,LTD. www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. SCAN TO VISIT TolsenWorld MADE IN CHINA PRODUCT LINK...
