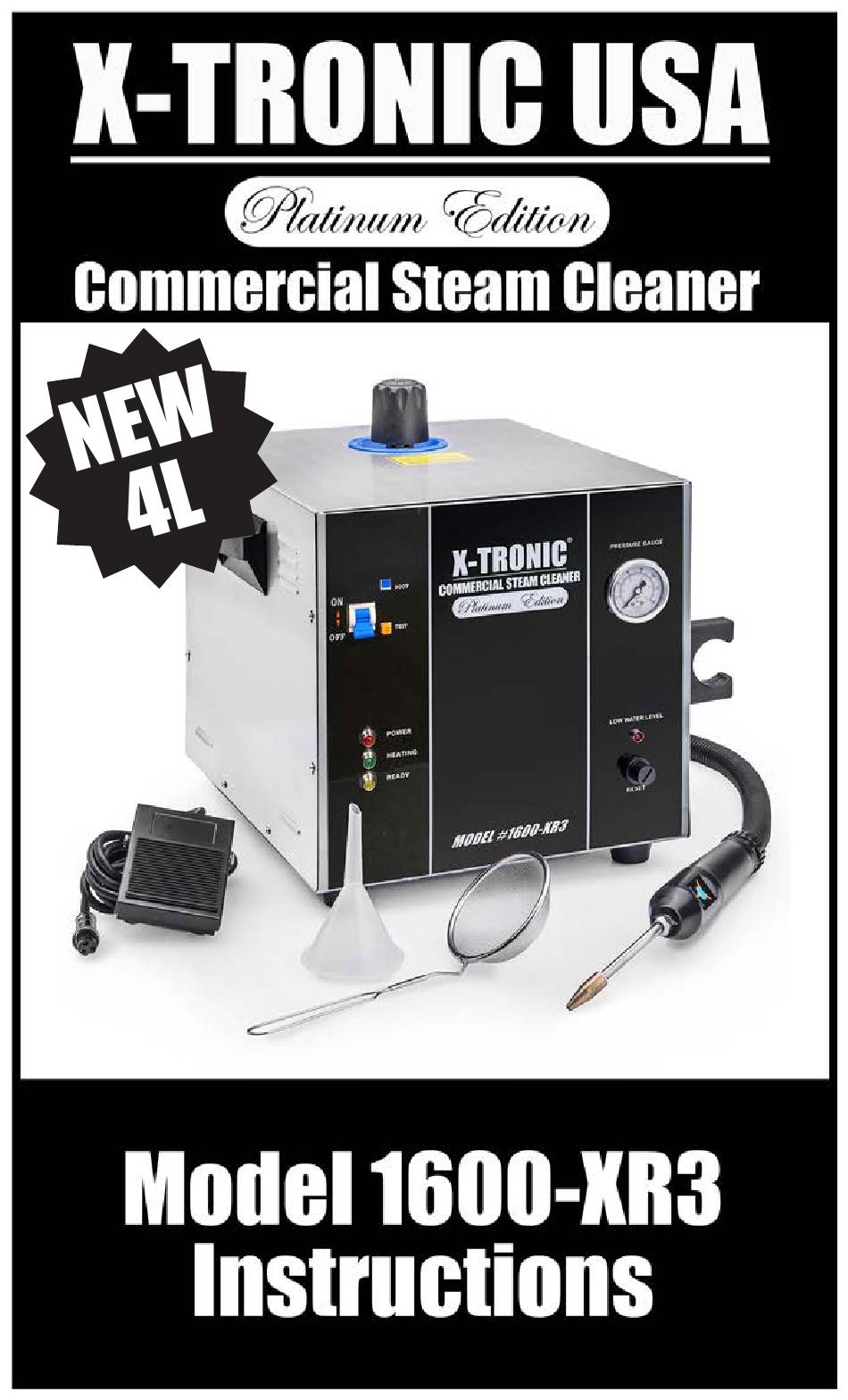

X-Tronic Platinum Series Instructions Manual

4.0 l commercial jewelry steam cleaner
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Platinum Series and is the answer not in the manual?

Questions and answers

Summary of Contents for X-Tronic Platinum Series

  • Page 3: Package Contents

    Please Read this Complete Manual before using the Professional Model #1600-XR3 – 4.0 L Jewelry Steam Cleaner PACKAGE CONTENTS 1 – 1600 Watt Main Steamer Unit 1 – Steam Gun with 48” Hose 1 – Steam Gun Holder on the Side of the Unit 1 –...

  • Page 4: Safety Precautions

    12. Do NOT use this unit under the influence of alcohol or drugs. 13. The manufacturer (X-Tronic International) of this unit does not assume any responsibility in the case of improper use or monitoring of this product.

  • Page 5: Control Panel Functions

    CONTROL PANEL FUNCTIONS 1. Boot Button 2. Front On/Off Control Switch 3. Test Button 4. Power Light (indicates power is on when lit) 5. Heating Light (indicates boiler is heating when lit) 6. Ready Light (indicates ready to use when lit) 7.
  • Page 6 OPERATING INSTRUCTIONS 1. Plug the foot switch into the receptical on the back of the unit securing it with the locking screw. 2. Simultaneously push down and turn the cap counterclockwise to open the filling spout. This may take several turns as the threads on the cap are small for safety.
  • Page 7 Note: This Steam Cleaner will produce a continuous steam pressure of 55 to 84 PSI. Once the Water Tank is filled (per the instructions) with 3.2 Liters (or less) of Distilled Water and the Yellow "Ready" Light in ON, the unit is ready to use. At this stage the heater has kicked off and about 40% of the tank capacity is filled with steam.
  • Page 8 FEATURES HANDS FREE FOOT PEDAL The foot pedal can be attached to the back of the unit and used in place of the On/Off button on the steam wand. Either the foot pedal or On/Off button on the steam wand handle can be used to activate the unit.

  • Page 9: Troubleshooting

    • Check the fuse on the back of the unit by unscrewing the fuse cover. If the fuse has burnt out, please contact X-Tronic International for support. Contact information is on the back page of this manual.

  • Page 10: Warranty

    (b) any product shipped outside of the United States, the District of Columbia or Canada, or (c) anyone who may have purchased it from someone other than X-Tronic International Inc.. Proof of purchase is required for in- warranty service. We recommend you promptly register this product on our website (www.XTronicUSA.com) to facilitate verification of the date of the original...
  • Page 11 WHAT DOES THIS WARRANTY NOT COVER? This limited warranty during the Warranty Period does not cover any damage due to: (a) improper use; (b) failure to follow the product instructions or to perform any preventive maintenance; (c) modifications; (d) unauthorized repair; (e) normal wear and tear that comes with household use;...
  • Page 12 Compliments please call or email us. Toll Free: 844-861-4762  Info@XTronicUSA.com  Our Business Hours are: Monday - Thursday: 8am - 4pm CST Friday: 8am - Noon CST If you would like to shop for other X-Tronic International Products Please visit our website www.XTronicUSA.com...

This manual is also suitable for:

1600-xr3Xtr-1600-xr3
