Summary of Contents for Viking 960

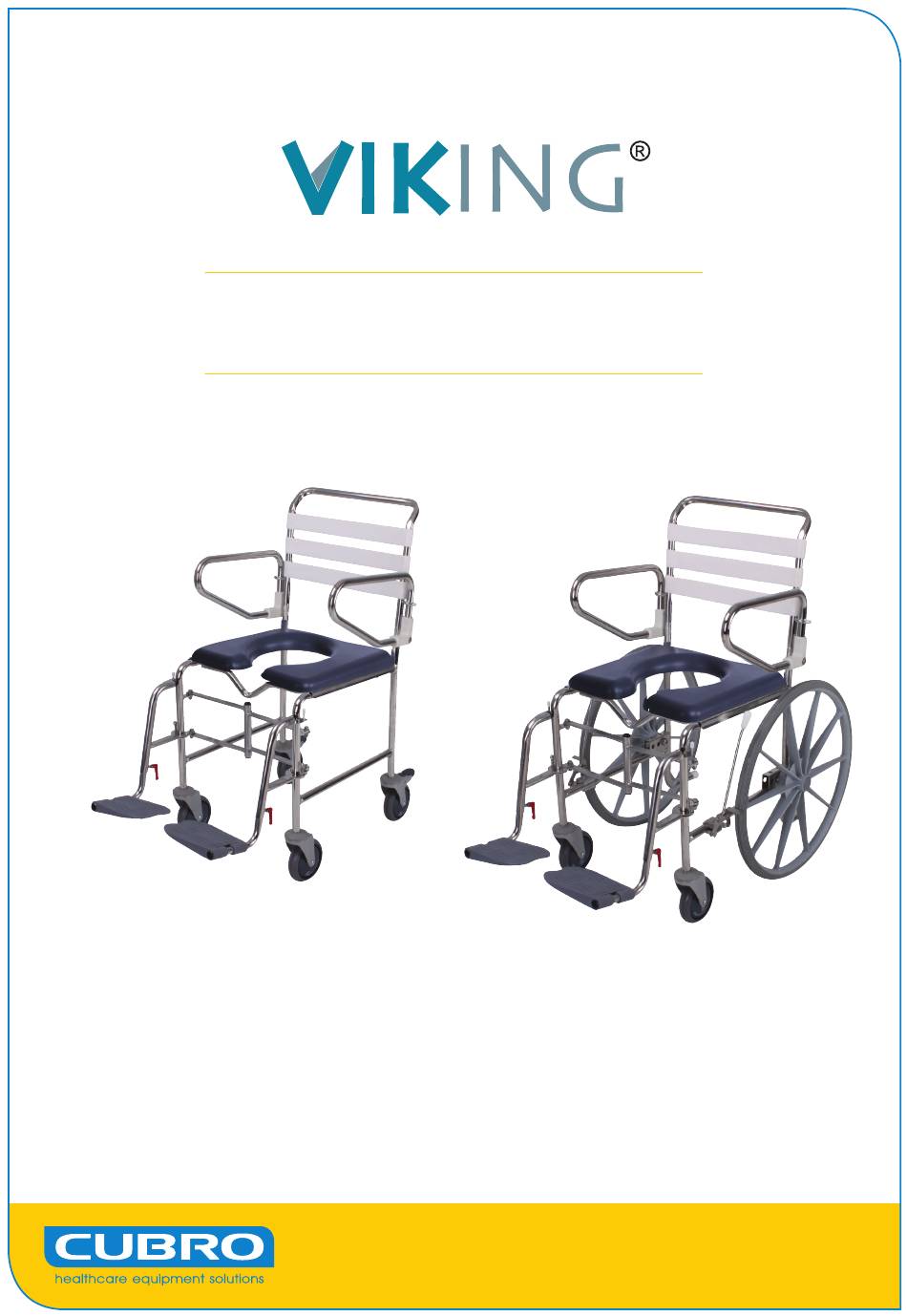

- Page 1 USER GUIDE FOR VIKING® SHOWER COMMODES ORDERING CODE: 960, 966 960 - Attendant Propelled 966 - Self propelled SAFE WORKING LOAD 200KG Freephone 0800 656 527 Email sales@cubro.co.nz www.cubro.co.nz...
-
Page 2: Table Of Contents
9. Limited Warranty 1. INTENDED USE The Viking mobile shower commode range is designed for the community or homecare environment. These commodes should only be used under the instruction of a carer or health professional where concerns exist around patient use. -
Page 3: Warnings
Viking Shower Commode USER GUIDE 3. WARNINGS ATTENTION! This user manual must be read before using the shower commode. Severe injury or death may result if user instructions, maintenance instructions and product warnings are not followed. WARNING! The decision to use this shower commode should always be guided by a qualified Health Care Professional, who can also advise and assist with the usage instruction. -
Page 4: Product Specifications
Viking Shower Commode Viking Shower Commode Viking Shower Commode Viking Shower Commode USER GUIDE USER GUIDE USER GUIDE USER GUIDE 5. PRODUCT SPECIFICATIONS 5. PRODUCT SPECIFICATIONS 5. PRODUCT SPECIFICATIONS 5. PRODUCT SPECIFICATIONS SPECIFIC DIMENSIONS SPECIFIC DIMENSIONS SPECIFIC DIMENSIONS SPECIFIC DIMENSIONS... -
Page 5: List Of Components
Viking Shower Commode USER GUIDE 6. LIST OF COMPONENTS Please ensure you have all the following parts before attempting to assemble the walking frame. If any of these shown parts are damaged or missing, please notify the supplier from whom you purchased this product immediately. -
Page 6: Instructions For Use
Viking Shower Commode USER GUIDE 7. INSTRUCTIONS FOR USE ASSEMBLING THE SHOWER COMMODE • Unfold the frame by pulling the frame apart as shown, position upright on the ground. (1) • Swing the arms up to approx. 45° as shown to allow the backrest to be fitted. (2) •... - Page 7 Viking Shower Commode USER GUIDE ATTACHING THE SWING-AWAY FOOTRESTS • Remove the plastic cap, dome nut and spring from the location pins on the commode frame. (1) • Mount swing-away foot rests onto location pins as shown below. (2) •...
- Page 8 Viking Shower Commode USER GUIDE ATTACHING SEAT TO THE COMMODE • The seat assembly can now be located onto the shower commode. The pins on the underside of the seat frame locate into the holes in the shower commode frame as shown below. (both sides of frame) (1) •...
- Page 9 Viking Shower Commode USER GUIDE SWING-UP ARM RESTS • The swing-up arm rests can be rotated up to allow for side access of the user.(1) • Ensure that the arm rests are down when the occupant is unattended. CAUTION! Take care when rotating the arm rests up and down as a pinch point exists between the arm rest and back rest.
- Page 10 Viking Shower Commode USER GUIDE ADJUSTING FOOT RESTS & SWING-AWAY FUNCTION • The foot rests can be adjusted in several ways to achieve the required set up: - Foot rests rotate up (1). - Foot rests are height adjustable. (minimum setting + 150mm) (2).
- Page 11 Viking Shower Commode USER GUIDE CASTORS The shower commode has swivel castors on the front and total lock castor at the back.(1) • To engage the total lock castors, use your foot to press down on the end of the red brake lever until a ‘click’...
- Page 12 Viking Shower Commode USER GUIDE TOILET / BED PAN • The shower commode can be positioned over a toilet or used with a bed pan (1). • When using a bed pan or bowl, place into the wire carrier and slide onto the white ledge on the pan carrier runners found underneath the seat at the rear of the shower commode (2).
-
Page 13: Maintenance And Cleaning
Viking Shower Commode USER GUIDE 8. MAINTENANCE & CLEANING INSPECTIONS • The shower commode should be inspected on a daily basis for damage. • Areas to be checked include: Commode framework, arms, seat, back rest strapping, foot rests and castors •... - Page 14 Viking Shower Commode USER GUIDE DISPOSAL Products that can no longer be used are to be disposed of separately from household rubbish. This must be done according to the local and national regulations for environmental protection and raw material recycling. Please look at your local council’s website for further information on the correct disposal.
-
Page 15: Limited Warranty
Viking Shower Commode USER GUIDE 9. LIMITED WARRANTY This warranty applies only to the original purchaser of CUBRO LTD’s product (who must be a purchaser who is resident or carrying on business in New Zealand and who has purchased the product directly from CUBRO LTD, or from a CUBRO LTD authorized distributor or reseller in New Zealand) and it is not transferable to any other person or entity. - Page 16 Freephone 0800 656 527 Freefax 0800 428 276 www.cubro.co.nz...
