Giant AVAIL ADVANCED 1 Specifications

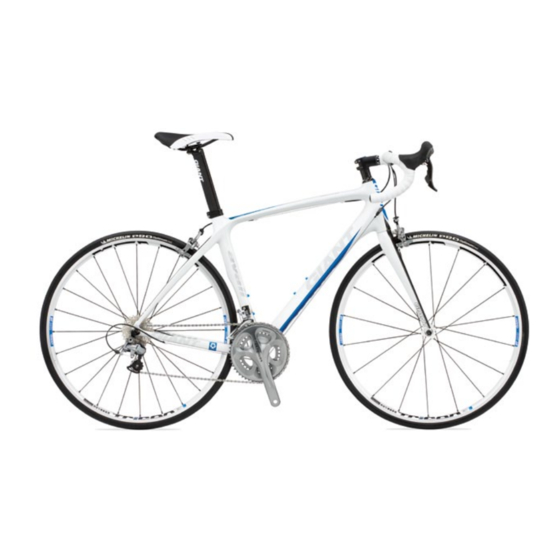

Avail Advanced 1
Specifications
siZes XS,S,M
CoLour White / Blue
FrAme Advanced-Grade composite
Advanced-Grade composite w/
Fork
composite OverDrive steerer
shoCk N/A
hAnDLeBAr Giant for Women Contact 31.8mm
stem Giant Contact
seAtpost Giant Vector Advanced composite
sADDLe Fi'zi:k Vesta w/ MG rails
peDALs Not included
shiFters Shimano Ultegra
Front DerAiLLeur Shimano Ultegra
reAr DerAiLLeur Shimano Ultegra
BrAkes Shimano Ultegra
BrAke Levers Shimano Ultegra
CAssette Shimano Ultegra 11-28T 10SPD
ChAin Shimano Ultegra
CrAnkset Shimano Ultegra 34/50T compact
Bottom BrACket Shimano internal press fit
DT Swiss TRICON R 1700
rims
tubeless-compatible
huBs DT Swiss TRICON
spokes DT Swiss TRICON
tires Michelin Pro Optimum 700x25c
extrAs
Specifications and availability subject to change without notice.
$
Spec Features
— Complete Shimano Ultegra 6700-series component group w/ compact crankset
— Giant Contact womens-specific handlebar & stem, Vector Advanced composite seatpost
— Wheelset: DT Swiss TRICON R 1700 tubeless-compatible
frame geometry
A B C
Actual part head seat
Frame size number Angle Angle*
centimeters degrees degrees
XS 43.0 2114906 71.0 74.5
S 46.5 2114907 72.0 74.0
M 50.0 2114908 72.5 73.5
*Seat angle is actual
**Toptube is measured from the center of the headtube horizontally back to the top of the effective extension of the seattube
***Standover height is based on the largest size tire that will fit the bike, not necessarily the included size tire
D E F
toptube** headtube Chainstay wheelbase
centimeters centimeters centimeters centimeters
51.0 13.0 42.0 98.3
52.5 15.0 42.0 98.5
54.0 17.5 42.0 99.0
115
G H
standover
height***
inches
28.9
29.6
30.6
