Summary of Contents for NABI IT850

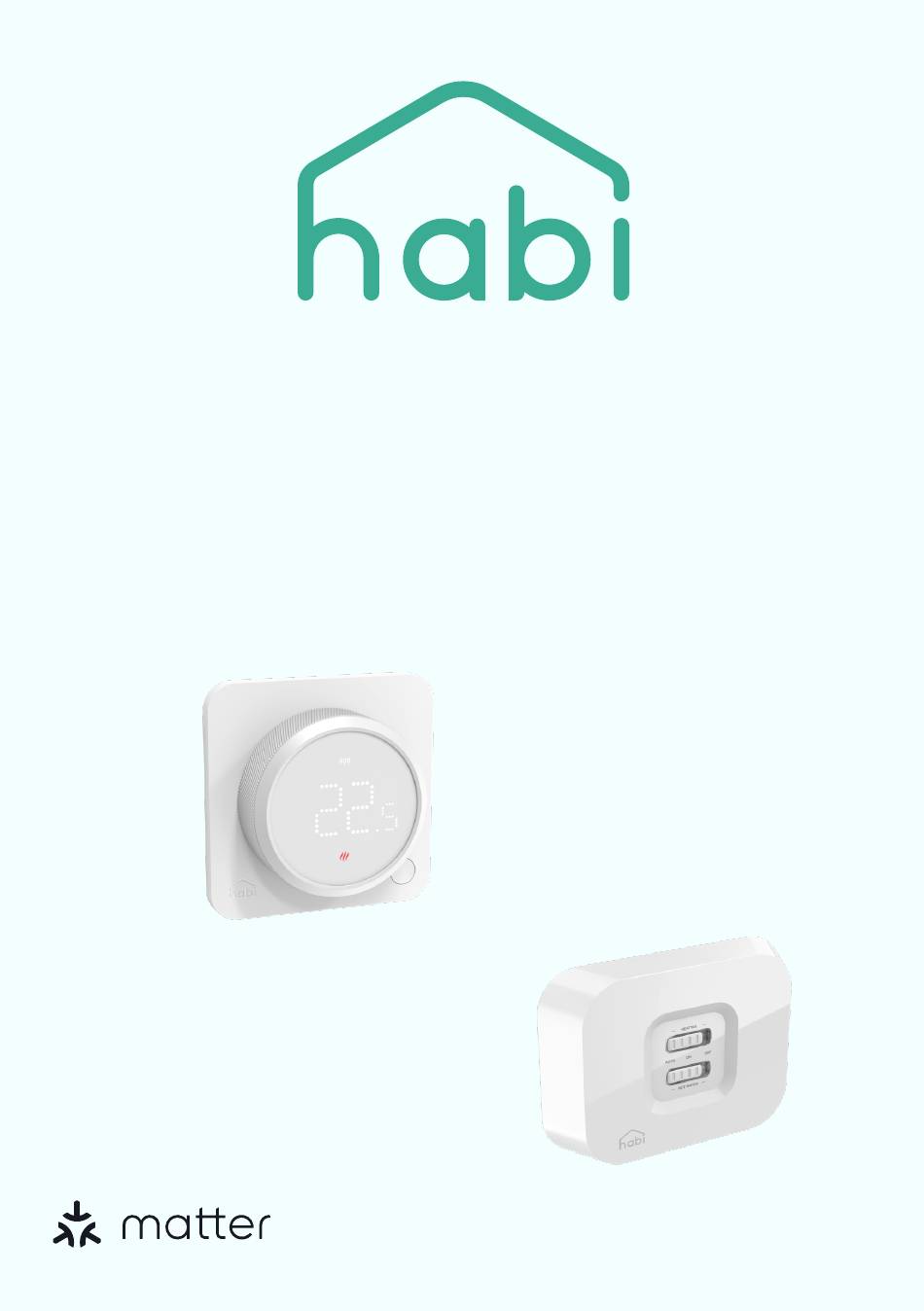

- Page 1 MATTER THERMOSTAT + RECIEVER Model: IT850 IT8 50TX The rm os tat IT 85 0RX Rec iev er...
-
Page 2: Safety Information
1. Introduction Our Matter Thermostat and Boiler Receiver combination offers seamless connectivity and efficient control for your home heating and hot water systems. The Boiler Receiver, acting as a border router, communicates with the thermostat via the Thread protocol and connects to the internet via Wi-Fi for remote access. - Page 3 Insert batteries thermostat on the back of the fixed wall thermostat mounting plate. The device will power up once the batteries are put in place and after a few seconds the home screen will be shown. 3.2 Powering up the Reciever To power up the reciever the following mounting procudure and the the coresponding wiring diagrams must be followed for each case.
- Page 4 Loosen the screws on Remove the backplate the underside of the from the front panel. receiver. Fix the backplate to the Wire backplate wall following the direction referring to one of the as shown above. diagrams on the next page Put the front panel back onto the backplate by aligning the fittings and...
- Page 5 Installation must be carried out by a qualified person in accordance to national and EU regulations. Heating only - 230V switching RECEIVER MAIN 230V AC 50 Hz Max. 16(5)A Heating only - volt-free output for Combi boiler RECEIVER MAIN T1 T2 230V AC 50 Hz...
- Page 6 Heating and Domestic Hot Water - Y Plan Receiver MAIN Cylinder Thermostat 230V AC 50Hz WH BL GR OR Mid-Position Zone Valve Heating and Domestic Hot Water - S Plan Receiver MAIN Cylinder Thermostat 230V AC 50Hz BR BL BR BL Heating Valve Water Valve...
-
Page 7: Pairing Process
4. Pairing process Once the reciever has been powered up, the pairing process can begin via the Habi App. 4.1 Install the App This product must be used with the Habi application on mobile by accessing the following link: 4.2 Adding the Reciever After installing the App and creating an account, the reciever is ready to be added. -
Page 8: Pairing The Thermostat
WiFi Password Finish the process Select the network Add WiFi Password 4.3 Pairing the Thermostat Add the new thermostat QR code XXXX-XXX-XXXX Scan the QR code provided on the back of the thermostat... - Page 9 Thermostat has been paired 5. Thermostat icons and buttons 1. RF Signal Indicator 5. Heating Indicator 2. Low Battery Indicator 6. Locked Mode (Children Protection) 3. Temperature display 7. Off Mode (Frost Protection) 4. Settings Indicator...
