Summary of Contents for DADAUX TX82

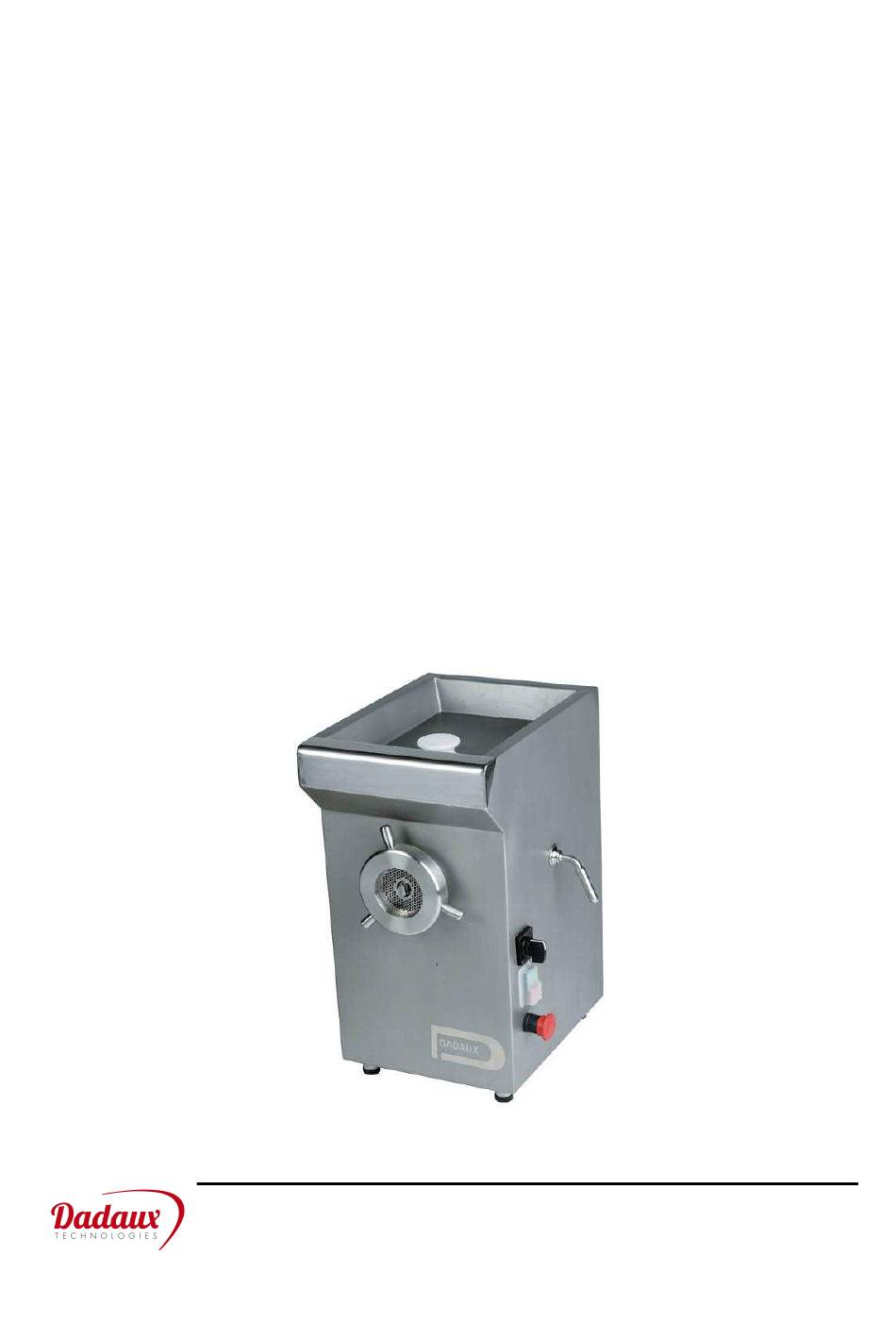

- Page 1 MEAT MINCER TYPE TX82 SA DADAUX – Le Bouchaud – 39 800 Bersaillin – Mail :dadaux@dadaux.com -Tél. 03-84-85-51-71 –Fax 03-84-85-53-...
- Page 3 9 11 8 10 12 MOTEUR 50Hz S1 : EMERGENCY STOP BUTTON S1 : BOUTON D' ARRET D' URGENCE S2: STOP PUSH BUTTON S2 : BOUTON POUSSOIR ARRET S3: ON PUSH BUTTON S3 : BOUTON POUSSOIR MARCHE KM1:CONTACTOR KM1 : CONTACTEUR Km1:AUXILIARY KM1 CONTACT Km1 : CONTACT AUXILIAIRE DE KM1 T: TRANSFORMATER...
- Page 4 REP. NB. DESIGNATION DIMENSION MATIERE FRAME INOX 304 RING H ECOPUR BODY H82 INOX 304 HELIX INOX 304 KNIFE PLATE INOX KNIFE INOX BLADE OF SYSTEM UNGER KNIFE INOX SCREW FOR BLADE OF SYSTEM UNGER KNIFE INOX GRATE n° 3 INOX 304 COMPENSATION RING INOX 304...
-
Page 5: Table Of Contents
INSTRUCTION MANUAL Tx82 SUMMARY INSTALLATION Delivery and handling Installation on the site Connection with the electrical supply network Loud caracteristics STARTING Checking of electric network III. USE OF THE MACHINE Envisaged use Specific points Starting WORK OPERATION Control and verification for the starting... -
Page 6: Delivery And Handling
I INSTALATION 1.1 Delivery and handling - The dispatched material has been controlled before being given to the conveyor. - From reception of the machine, to check the state of packing. - Take the necessary measures, if there are anomalies. - Remove the machine of this packaging with precaution The meat mincer is delivered with the material follows: •... -
Page 7: Connection With The Electrical Supply Network
1.3 Connection with the electrical supply network The machine can be delivered with several version of connection: a)-Connection by 1 pin 20A-380V 3 phases + earth b)- Connection by 1 pin 20A-220V 2 phases + earth Check that the feed line corresponds to technical characteristics of the identification plate 1.4 Loud caracteristics Air noise is inferior to 70dB. -
Page 8: Use Of The Machine
In order to check this operation, there is need to : 1. Plug the connection ( the light signal must kindle). 2. Press the button start of desk The Archimedes’s screw must turn in the way of the arrow ( Picture 2.1) If the way is reversed, turn the “button with 3 positions”... -
Page 9: Starting
ATTENTION ! The machine musn’t be used with grates which have a diameter above 8 mm. ATTENTION ! Before a intervention on the body of cut( grate/knives/screw) . Please disconnect the machine 3.3 Starting The meat mincer must be equipped like on the diagram 3.2. The signal “live circuit” must be light. -
Page 10: Guarantee
V GUARANTEE. Any modification of the machine is prohibited. In the event of anomaly, to contact the service after sale. The manufacturer is released from all responsibilities in the following cases: - Incorrect installation. - Unsuitable use of the machine. - Contrary use with the provisions in force in the country of use. -
Page 11: Declaration Ce De Conformite
AUX DIRECTIVES : 2006/42/CE (machine) LA FABRICATION DE CETTE MACHINE EST CONFORME AUX NORMES SUIVANTES : EN 60-204-1 et NF EN 12331. LE BOUCHAUD LE ___________________________________________ MR DADAUX Jean-Claude, P.C .A. DECLARATION CE DE CONFORMITE LA SOCIETE DADAUX SAS________________________________________________ LE BOUCHAUD 39800 BERSAILLIN –...
