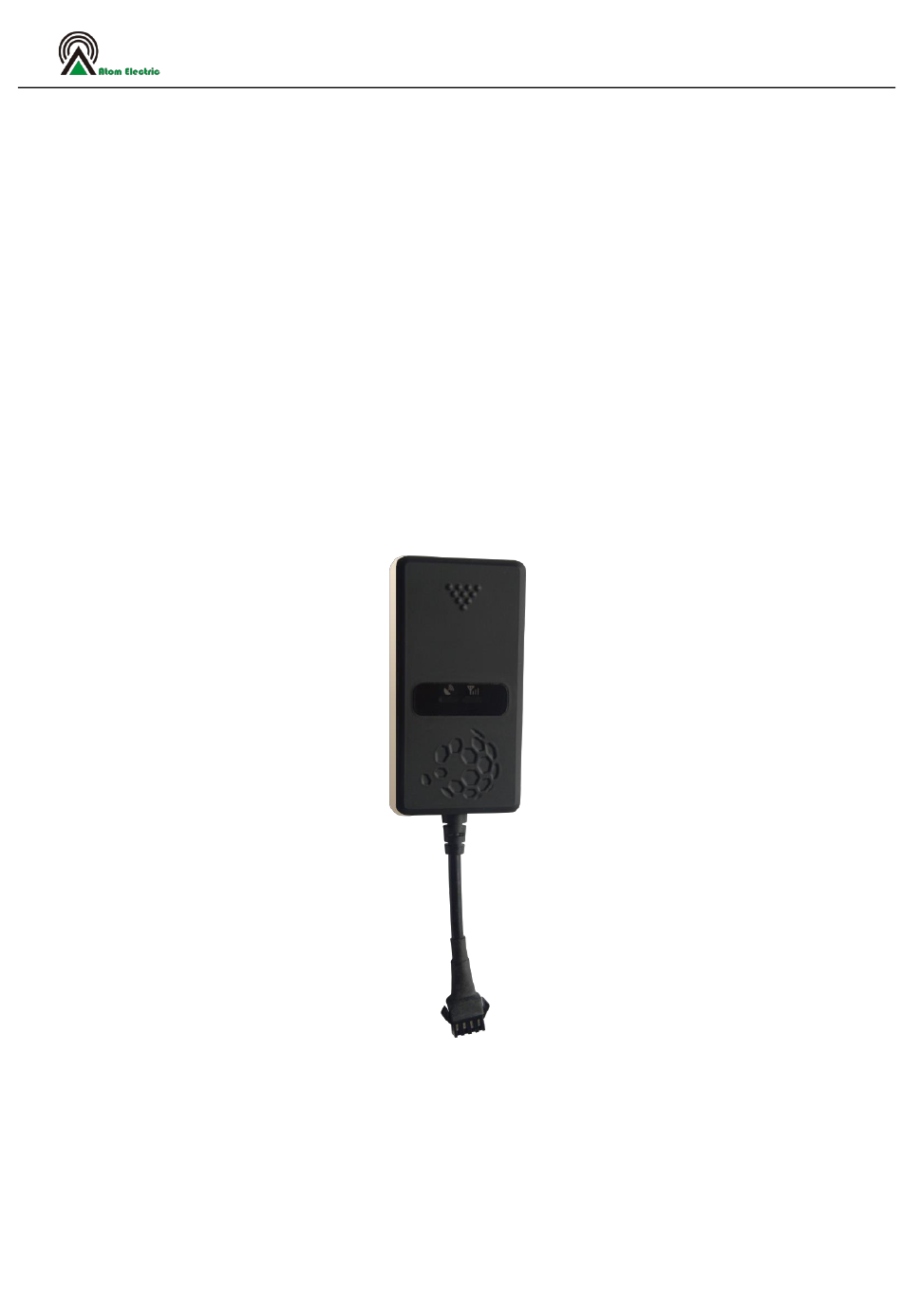

- Page 1 Anhui Atom Electric Co.,Ltd GPS Vehicle Tracker (GPS+GSM+SMS/GPRS) User Manual (AT-KM-01) This user manual has been specially designed to guide you through the functions and features of your GPS vehicle tracker.
-
Page 2: Product Configuration List
It combines GPS+LBS communication technology. With EPO technology, this device can easily achieve extreme fast positioning. 1.2 Product Configuration List Name Quantity Unit Remark AT-KM-01 host User manual; Warranty card; Certificate of approval Package box Power cable (4PIN) with fuse... -
Page 3: Device Wiring Diagram
www.a-atom.com 1.3 Device wiring diagram Relay Yellow Orange Power Black Input KM-01 Fuel pump Connecting diagram Connect the positive wire of original Fuel pump Green Green 87A 30 Relay Yellow (Connect the Connect the positive wire of power Black negative wire of relay) START Orange Power... -
Page 4: Specifications And Functions
www.a-atom.com 2. Specifications and functions 2.1 Specifications Item Specifications Material Plastic Working Voltage DC 9V - 36 V Working Current 25mA @12V(static current10mA) Standby Battery 2 hours (3.7V/180mAH) Size L81*W42*H13.5mm Location Accuracy <10 meter Positioning Way Working Temperature -25℃+75℃ Storage Temperature -40℃+85℃... - Page 5 www.a-atom.com 2.2 Functions Functions Function details Description According to the set time update the longitude and latitude Tracking Real time tracking information. Car ACC Uploaded data about the ACC on/off status. on/off status. When device checking the voltage is lower than 10V, it will Power down alarm has power down alarm.
-
Page 6: Setup And Operation
www.a-atom.com 2.3 Setup and Operation a) Unit Setup (1) Check unit Please check whether the equipment has good appearance & whether accessories are completed. (2) Set In SIM Card Please press out the SIM card slot and put SIM card in. Please not put SIM card in or out when the equipment is connecting power. - Page 7 www.a-atom.com b) SMS Command for Online Tracking Setup Exactly format is: Set IP online: <SPBSJ*P:BSJGPS*T:120.025.232.237,7788*A:CMNET*N:13288888888*C:0030> Set the domain name online:<SPBSJ*P:BSJGPS*Q:s3.gps18.com:7700*A:CMNET*N:14141937348> SPBSJ: is Header P: Password (default password is: BSJGPS) T: 120.025.232.237,7788 is TCP IP and Port Q: domain name and port A: CMNET is APN N: 13288888888 is SIM card number or device number inside of the equipment.
- Page 8 www.a-atom.com 3.2 Attention Stay away from water Please keep the car battery fully charged Device working voltage is 9-36V, recommended 12V-24V. Tracker will damage if the voltage is over this range. Working temperature is -25to 75centigrade, Please cut off power if the temperature is over this range.
