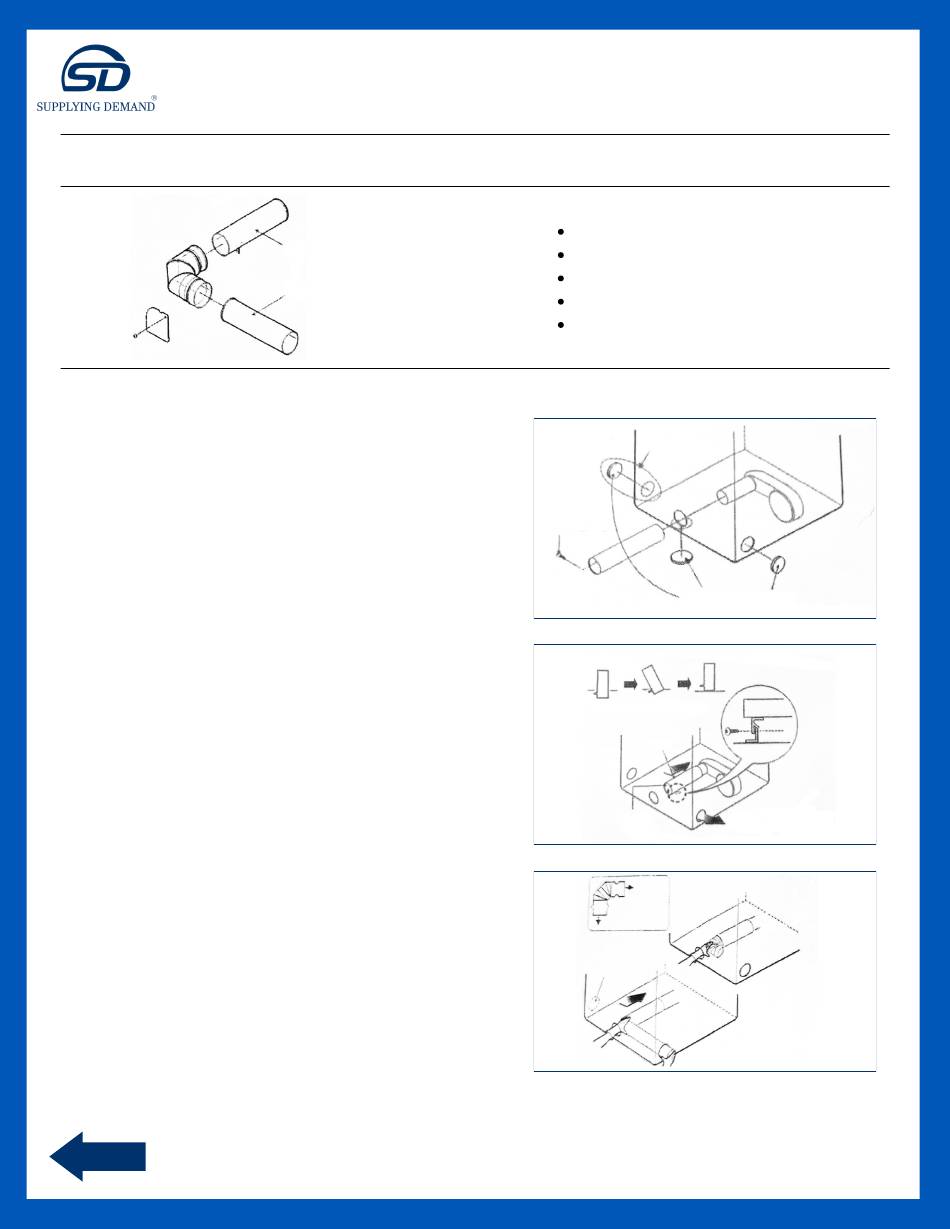

SD SD3911EZ9131X Installation Instructions

VENTING INSTALLATION INSTRUCTIONS
IMPORTANT: Unplug your appliance and turn off power at the breaker before servicing. If you have doubts or are unfamiliar with this type of installation
work, seek the services of a qualified Service Technician. Supplying Demand assumes no responsibility for the improper installation of this product.
PREPARING EXHAUST INSTALLATION
1. Detach and remove the bottom, right, or left
side knockout as desired.
2. Remove the screw from the rear of the dryer
and save.
3. Pull the duct out of the dryer. (Fig. 1)
ADDING NEW DUCT
4. Connect the new duct (A) supplied with the kit.
Make sure that the duct is aligned with the
bracket in the base as shown in (Fig. 2).
5. Use the screw supplied with the kit to secure
the duct in place through the bracket on the
appliance base.
ADDING ELBOW & DUCT FOR EXHAUST TO
LEFT OR RIGHT SIDE OF THE CABINET
6. Beware of the direction of the elbow.
7. Insert 4" elbow through the rear of the dryer
and connect the elbow to the dryer internal duct
as shown in (Fig. 3). Wrap duct tape around the
joint as shown in (Fig. 5).
8. Insert 4" duct through the side opening and
connect the duct to the elbow.
CAUTION: Be sure not to pull or damage the
electrical wires inside the dryer when inserting
the duct.
FLIP OVER TO CONTINUE
SD3911EZ9131X
KIT CONTENTS
(1) Duct Outlet (A) (blower - elbow)
A
(1) Duct Elbow
(1) Duct Outlet (B) (elbow - outlet)
B
(1) Cover Plate
(1) Installation Instruction
(1) Screw
TOOLS REQUIRED
#2 Phillips Screwdriver
Duct Tape
Gloves
Cut Resistant Sleeves
Flat Head Screwdriver
ELECTRIC ONLY
REMOVE SCREW
& SAVE
REMOVE DESIRED KNOCKOUT
HOW TO INSERT DUCT (A)
PORTION A
FIXING HOLE
DUCT (A)
DUCT (B)
EXHAUST CAN BE
ADDED TO LEFT
OR RIGHT SIDE
FIG. 1
(ONE ONLY)
FIG. 2
RIGHT OR LEFT
SIDE EXHAUST
FIG. 3
