above-desk
Vertebrae cable spine
NEX7033 instructions
Installation
1

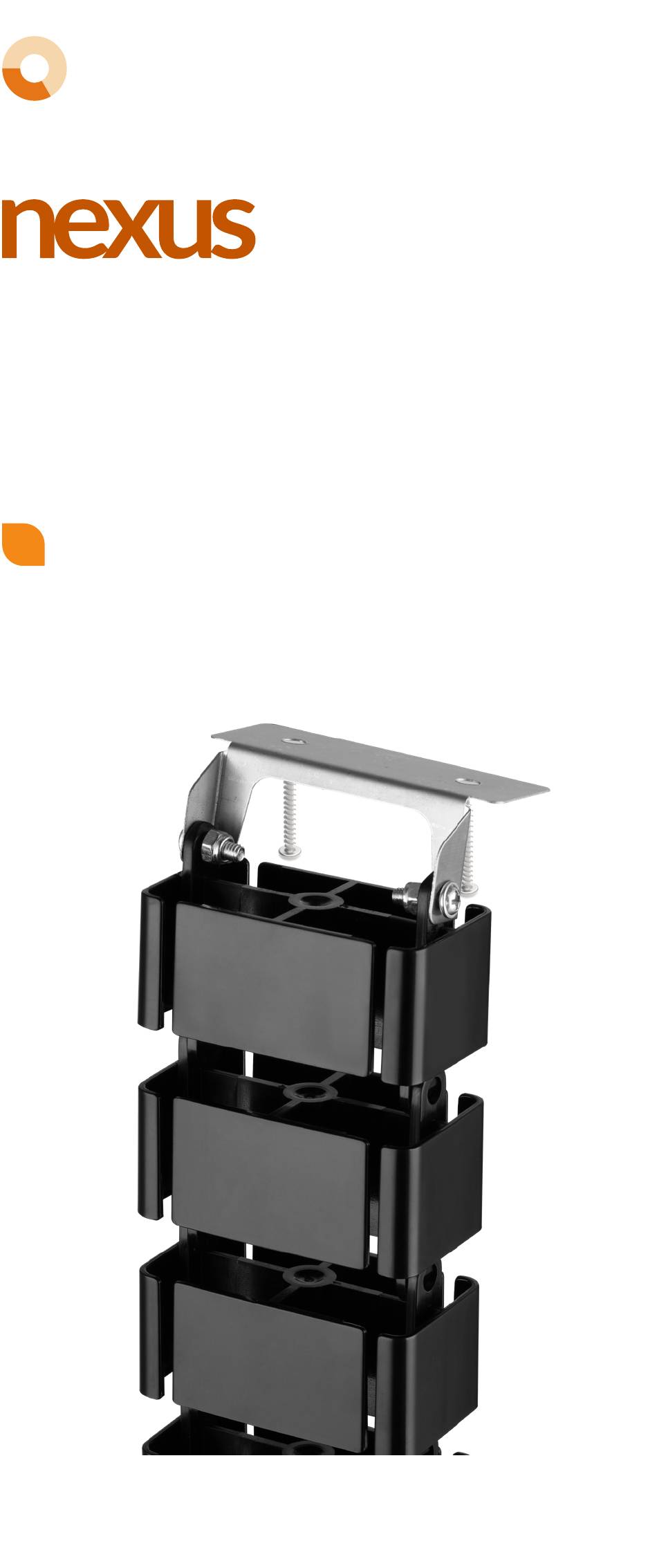

Mark the position of the desk mounting point
on the underside of the desk and drill two
3mm pilot holes. Using the two supplied
screws, fix the desk mount.
│
below-desk
continued...
│
beyond-desk
Advertisement
Related Manuals for Nexus NEX7033
Summary of Contents for Nexus NEX7033
- Page 1 │ below-desk │ beyond-desk Vertebrae cable spine NEX7033 instructions Installation Mark the position of the desk mounting point on the underside of the desk and drill two 3mm pilot holes. Using the two supplied screws, fix the desk mount.
- Page 2 Position the weighted floor mount (noting the position of the cable entry). Thread the cables through the spine. Technical Construction: Mounting: Polypropylene Screw fixing to desk (x2 wood screws supplied), Dimensions: Weighted floor base 1300mm (H) continued...
- Page 3 Address / Helpline If you need further technical assistance you can get in touch with our Technical Helpline on +44 (0)3300 249 279 email: support@nexus.uk Luceco PLC (EU) Luceco SE Stafford Park 1 C/ Bobinadora 1-5 Telford TF3 3BD 08302 Mataró...
