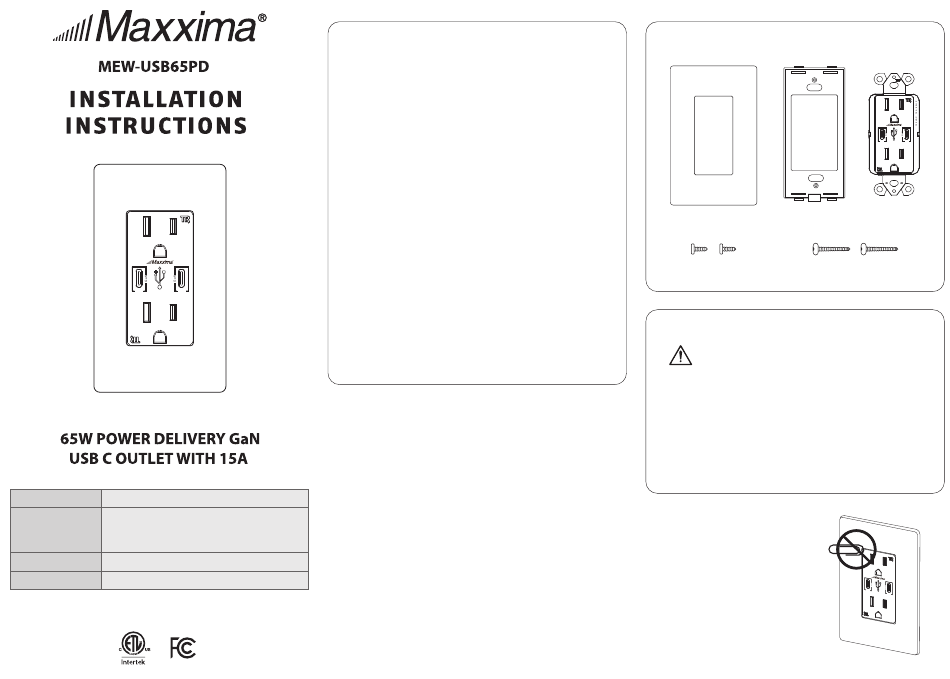

Maxxima MEW-USB65PD Installation Instructions

65W 65W
5/9/12/15/20VDC CLASS2 65W MAX
RECEPTACLE RATING 15/20AMP 125VAC 60Hz
Sigle-Port Output: 65W Max
USB RATING 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3.25A
Two-Port Output: 30W Each Ports, Total 60W Max
#14-#12AWG Copper
WIRE TERMINALS
OPERATING TEMP -4 to 140˚F (-20 to 60 ˚C)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device is to be installed in an outlet box that measures at least 3in×2in×2.5in and
wired in accordance with NEC article 314 box fill requirements.
CAUTION:
• This device is to be used with Class 2 USB connectors and interconnecting cables.
• The Class 2 usb ports are not intended to physically support products or appliances.
• The Class 2 usb cables must be routed away from the 120V receptacles and inserted
plugs.
• This device is to be used with copper or copper clad wire only.
CAUTION:
To reduce the risk of fire and overheating, check for compatibility with the appliance
manufacturer's charging instructions.
PARTS INCLUDED
Decorative Mounting
Wall Plate×1 Frame×1
Inner Frame Mounting Screws×2
Screws×2
WARNING:
This product may represent a possible shock or fire hazard if improperly
installed or attached in any way. Product should be installed in accordance
with the owners manual, current electrical codes and/or the current
National Electric Code (NEC).
RISK OF ELECTRIC SHOCK: TURN OFF THE MAIN POWER AT THE CIRCUIT
BREAKER BEFORE INSTALLING.
RISK OFF FIRE:
- DO NOT EXCEED ELECTRICAL RATINGS
- USE INDOORS ONLY
TAMPER RESISTANT
RECEPTACLES
Built-in shutter keeps
children safe.
