Neat Bar, Pad Manual

Introduction

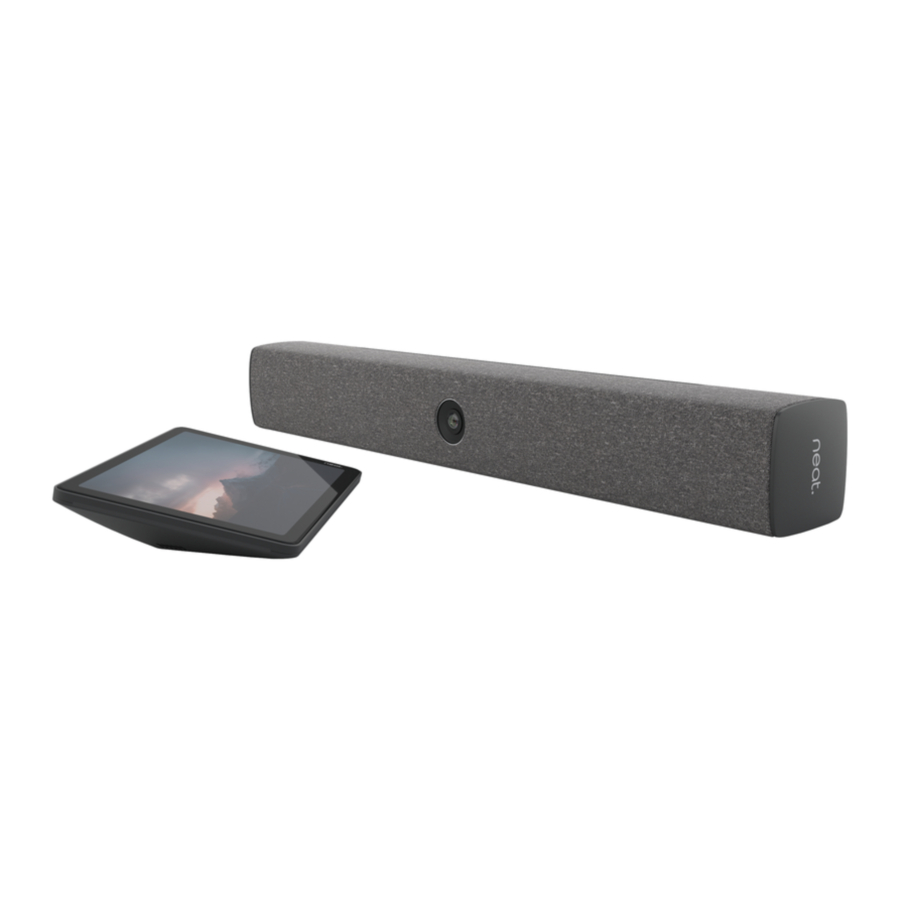

Neat Bar is a compact and highly capable meeting device.
It's perfect for bringing superior -quality audio and video to your huddle, focus and meeting spaces.
Neat Bar includes Camera, Speakers, Microphones and environmental sensors all in one compact design.
Neat Bar comes with a dedicated Neat Pad Controller and optional Scheduling Display.

Simple setup

All you need is in the box, including mounts, cables and clear instructions. So it's easy for anyone to install and set-up, above or below one or two screens.

Wall mount

Screen mount

Table stand

Neat Bar

Neat Bar comes with everything you need to get started, including cables, wall mount, screen mount and table stand.

In the box
Neat Bar: All-in-one audio and video device
HDMI cable: 6.5 t (2m)
Ethernet cable: 9.8 t (3m)
Power cord: 9.8 t (3m)
Mount adapter, wall mount, screen mount and table stand
4 × M screw (0.94 in / 24 mm) for VESA mount
4 × M screw (0.94 in / 24 mm) for VESA mount
2 × spacer to secure parallel TV mount
1 × 5 mm hex key for the screen mount
1 × 2 mm hex key for the mount adapter

Screws for mounting to the wall are not included. Mounting on a wall should only be performed by qualified personnel in line with applicable facility and state regulations. The wall and the mounting equipment must safely withstand the load of the product.

Neat Pad

Neat Pad works as a Controller for Neat Bar and can also be configured as a Scheduling Display for the Meeting Room. It comes with everything you need to get started, including cables and mounting options.

In the box
Neat Pad: 8-inch touch screen
2 × Ethernet cable: 9.8 t (3m) + 16.4 t (5m)
PoE power adapter
Mount adapter, side mount and wall mount
4 × M screw (0.30 in / 7.5 mm) for the wall mount
3 × M screw (0.19 in / 4.7 mm) for the side mount
1 × 2.5 mm hex key for the adapters
1 × 2 mm hex key to secure Neat Pad to the wall mount

Screws for mounting to the wall are not included. Mounting on a wall should only be performed by qualified personnel in line with applicable facility and state regulations. The wall and the mounting equipment must safely withstand the load of the product.

Mounting & releasing

Mounting
Slide Neat Bar onto the selected mounting option (1). When fully inserted tilt Neat Bar back to horizontal and check if it is secure by carefully pulling it towards you.

Releasing
To release Neat Bar from the selected mounting option, tilt the unit to maximum tilt (1) and carefully slide the unit towards you (2).

Do not leave Neat Bar in a max tilted position with the red indicator showing as it is not secured by the lock spring.

Size & weight

Neat Bar
Width: 21.9 in (556 mm)
Depth: 3 in (76 mm)
Height: 3 in (76 mm)
Weight: 3.75 pounds (1.7 kg)

Neat Pad
Width: 7.8 in (198 mm)
Height: 1.7 in (42 mm)
Depth: 5 in (127 mm)
Weight: 1.15 pounds (520 g)

Setup & connectivity

Setup
Use the provided cables to set up Neat Bar. Connect the cables according to the illustration. Cables marked are included. Cables marked are optional and not required for basic use of the system.

Requirements for a complete setup

Display Internet connection Video service

Environmental Requirements
Ambient operating temperature:
32° to 95°F (0° - 35°C)
Storage temperature: 5° - 149°F (-15° - 65°C)
Relative humidity: 20% to 80%

Additional Product Information https://neat.no/bar
