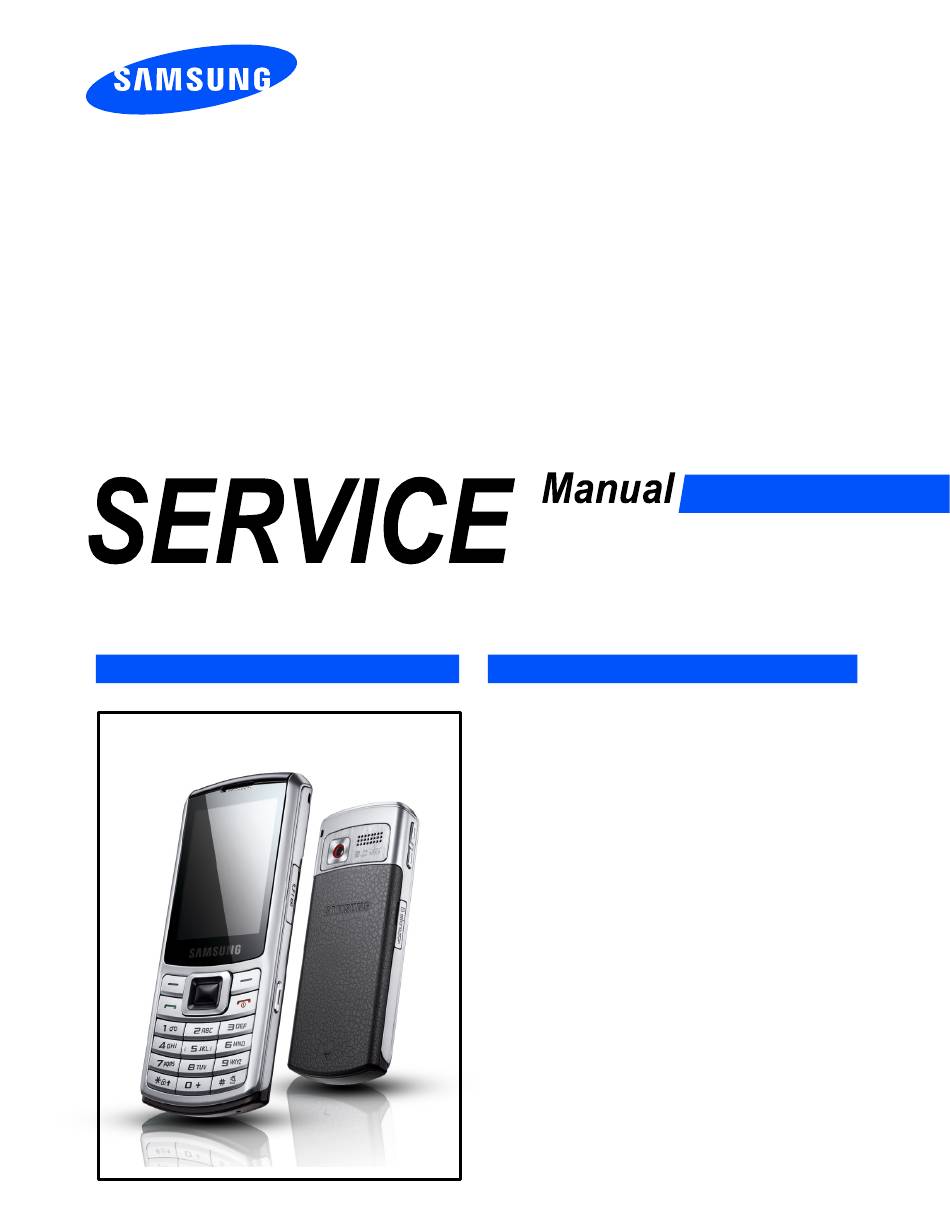

GSM TELEPHONE
GT-S3310
GSM TELEPHONE
CONTENTS
1. Safety Precautions
3. Product Function
7. Disassembly and Assembly
Instructions
9. PCB Diagrams
10. Chart of Troubleshooting
11. Reference data

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT-S3310 and is the answer not in the manual?

Questions and answers

Summary of Contents for Samsung GT-S3310

  • Page 1: Table Of Contents

    GSM TELEPHONE GT-S3310 GSM TELEPHONE CONTENTS 1. Safety Precautions 2. Specification 3. Product Function 4. Array course control 5. Exploded View and Parts list 6. MAIN Electrical Parts List 7. Disassembly and Assembly Instructions 8. Block Diagrams 9. PCB Diagrams 10.
  • Page 2 China china.samsungportal.com Asia asia.samsungportal.com Mideast & Africa mea.samsungportal.com This Service Manual is a property of Samsung Electronics Co.,Ltd. Samsung Electronics Co.,Ltd. ⓒ Any unauthorized use of Manual can be punished under applicable International and/or domestic law. 2009. 03. Rev.1.0...
  • Page 3: Specification

    2. Specification 2-1. GSM General Specification GSM900 DCS1800 GSM850 PCS1900 Phase 1 Phase 1 Ph ase 1 F req. 880~915 824.2~848.8 1710~ 1785 1850~ 1910 Band[ MHz] 925~960 869.2~893.8 1805~ 1880 1930~ 1990 Uplink/Downlink 0~124 & ARFCN r ange 512~ 885 512~ 810 128~251 975~1023...
  • Page 4: Gsm Tx Power Class

    Speclflcation 2-2. GSM Tx Power Class TX Power TX Power TX Power GSM850 DCS1800 PCS1900 GSM900 control level control level control level 33±3 dBm 30±3 dBm 30±3 dBm 28±3 dBm 31±3 dBm 28±3 dBm 26±3 dBm 29±3 dBm 26±3 dBm 27±3 dBm 24±3 dBm 24±3 dBm...
  • Page 5 Speclflcation 2-3. GSM EDGE TX power class Only in Master TX Power TX Power TX Power GSM900 DCS1800 PCS1900 GSM850 control level control level control level 27±3 dBm 26±3 dBm 26±3 dBm 24±3 dBm 24±3 dBm 25±3 dBm 23±3 dBm 22±3 dBm 22±3 dBm 21±3 dBm...
  • Page 6: Main Function

    - MP3/AMR/AAC/AAC+/e-AAC+/WMA - Quad Band(EGSM900/DCS,PCS,EDGE) - MicroSD Card Support - External Memory - USB v2.0 High-speed, Bluetooth v2.0 - FM Radio Support, Radio Data System SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 7: Array Course Control

    4. Array course control 4-1. Software Adjustments Test Cable (GH39-01160A) Test Jig (GH99-36900A) RF Test Cable (GH39-00985A) Adapter (GH99-38251A) SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 8: Software Downloading

    " BCM213x1 Downloader v0.xx(C) " 1. Select the connected serial port and the rate of speed. 2. Select the check box, Connect cable to phone after Click DL.Bootloader Button. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 9 - click 'Rsrc1' to select a Calset file. - click 'Rsrc2' to select a Calset file. - click 'File system' to select a Calset file. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 10 Array course control 5. Check the All Download & Calset , Click the Download Botton, SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 11 Array course control 6. Confirm the downloaded version name and etc. : *#1234# Full Reset : *0206*3855# SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 12: Reference Data

    ― QPSK: Quadrature Phase Shift Keying ― RS : Reed-Solomon ― SI : Service Information ― TDM : Time Division Multiplexing ― TS : Transport Stream 10-1 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 13: Safety Precautions

    ● Don't use as you pleases after change other material than replacement registered on SEC System. Otherwise engineer in charge isn't charged with problem that you don't keep this rules. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 14: Esd(Electrostatically Sensitive Devices) Precaution

    ● You must maintain electric contact between ESD and place due to be set up until ESD is connected completely to the proper place or a circuit board. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 15: Exploded View And Parts List

    5-1. Cellular phone Exploded View QMW01 QFR01 QKP01 QLC01 QME01 QCR60 QBR01 QMP01 QVK01 QAN02 QCR97 QSH01 QSP01 QCA01 QVO01 QIF01 QCK01 QRE04 QRE01 QSD01 QCR91 QBA00 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 17: Main Electrical Parts List

    R-CHIP 2007-000140 R107 R-CHIP 2007-000140 R303 R-CHIP 2007-000143 R209 R-CHIP 2007-000143 R216 R-CHIP 2007-000143 R217 R-CHIP 2007-000144 R211 R-CHIP 2007-000144 R212 R-CHIP 2007-000144 R213 R-CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 18 R-CHIP 2007-003010 R403 R-CHIP 2007-003014 R206 R-CHIP 2007-003018 R103 R-CHIP 2007-007100 R304 R-CHIP 2007-007155 R102 R-CHIP 2007-007193 R200 R-CHIP 2007-007312 R215 R-CHIP 2007-007315 R218 R-CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 19 C-CER,CHIP 2203-000438 C242 C-CER,CHIP 2203-000438 C420 C-CER,CHIP 2203-000438 C430 C-CER,CHIP 2203-000466 C125 C-CER,CHIP 2203-000627 C310 C-CER,CHIP 2203-000627 C311 C-CER,CHIP 2203-000679 C236 C-CER,CHIP 2203-000812 C100 C-CER,CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 20 C-CER,CHIP 2203-006048 C111 C-CER,CHIP 2203-006048 C115 C-CER,CHIP 2203-006048 C201 C-CER,CHIP 2203-006048 C209 C-CER,CHIP 2203-006048 C212 C-CER,CHIP 2203-006048 C213 C-CER,CHIP 2203-006048 C214 C-CER,CHIP 2203-006048 C215 C-CER,CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 21 C-CER,CHIP 2203-006399 C211 C-CER,CHIP 2203-006399 C221 C-CER,CHIP 2203-006399 C239 C-CER,CHIP 2203-006399 C240 C-CER,CHIP 2203-006399 C303 C-CER,CHIP 2203-006399 C304 C-CER,CHIP 2203-006399 C317 C-CER,CHIP 2203-006399 C327 C-CER,CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 22 C-CER,CHIP 2203-006872 C231 C-CER,CHIP 2203-006872 C301 C-CER,CHIP 2203-006872 C302 C-CER,CHIP 2203-006872 C307 C-CER,CHIP 2203-006872 C312 C-CER,CHIP 2203-006872 C313 C-CER,CHIP 2203-006872 C314 C-CER,CHIP 2203-006872 C315 C-CER,CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 23 INDUCTOR-SMD 2703-002608 L117 INDUCTOR-SMD 2703-002708 L100 INDUCTOR-SMD 2703-002708 L105 INDUCTOR-SMD 2709-003360 L108 INDUCTOR-SMD 2709-003360 L112 INDUCTOR-SMD 2703-003545 L300 INDUCTOR-SMD 2703-003545 L301 INDUCTOR-SMD 2801-004551 OSC300 CRYSTAL-SMD SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 24 GH70-03276A SC100 ICT SHIELD-CAN CLIP GH70-03276A SC101 ICT SHIELD-CAN CLIP GH70-03276A SC102 ICT SHIELD-CAN CLIP GH70-03276A SC103 ICT SHIELD-CAN CLIP GH70-03276A SC104 ICT SHIELD-CAN CLIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 25: Flow Chart Of Troubleshooting

    PM 300 C322, C321, 3.0V_ANLG = 3.0V 1.2V_ANLG = 1.2V C313 ③ Check CLK32K Freq = 32KHz Check the clock 32KHz_DIGIT Check the initial operation SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 26 Flow Chart of Troubleshooting C345 C310 L300 R205 C328 TP303 C302 C312 C301 C313 C320 TP302 C321 C303 TP300 R300 TP400 C309 C304 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 27 Initial Failure U300 pin D2 (RESET/) ="H"? (check the test point) Check the circuit related to reset Check the 16bit data signal & memory CE SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 28 Flow Chart of Troubleshooting TP216 TP208 TP504 TP220 TP223 TP227 C242 TP222 C241 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 29: Charging Part

    > 5.0V TP304 pin (ACC_DET) Check the circuit related to AUX_ON signal = "L"? Check the U300 pin K11 Resolder or replace U300 ≒ 1.25V SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 30 Flow Chart of Troubleshooting C345 C310 L300 R205 C328 TP303 C302 C312 C301 C313 C320 TP302 C321 C303 TP300 R300 TP400 C309 C304 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 31 Check the SIM connector's resolder or change SIM300 connector's to SIM card ③ Check the circuit around SIM300 Check the related circuit of SIM300 input circuitry SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 32 Flow Chart of Troubleshooting R222 C102 C423 C335 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 33: Microphone Part

    Check the circuit related to R414 3.0V ? Check the circuit Check the path from Main IC to MIC from UCP200 to MIC Replace the MIC Check the MIC SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 34 Flow Chart of Troubleshooting R413 R414 R416 R205 9-10 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 35: Speaker Part(Melody)

    Resolder SPK_P (R400) & SPK_N SPK_P & SPK_N (R401) "HIGH" ② Check the output circuit of Change or resolder around PAM400 PAM400(Audio AMP) Change speaker Is speaker OK? 9-11 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 36 Flow Chart of Troubleshooting R400 C502 PAM400 C413 C414 9-12 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 37: Key Data Input

    Check the Dome sheet & Key Pad pushed, is it displayed on LCD? When one of the keys is Replace the Key PBA pushed, KBIO signal is OK? 9-13 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 38: Camera Part

    9-8. Camera part "Camera" function does not work Check the Camera Reconnect the camera module connector on PBA Is there another problem? Replace the camera module 9-14 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 39: Radio Part

    C104 ≥ 3.0V and Check PMU part ② ZD400, C423 is OK? Resolder ZD400, C423 (When U101 operate) and check U100 Check signal related to U100 9-15 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 40: Gsm Receiver

    ≥ -68dBm pin10,pin16 = L ② Resolder F100 ③ F100 pin 13 ≥ -70dBm Resolder L113, L115, L117 pin 5,6 ≥ -70dBm Check UCP200 9-16 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 41: Dcs Receiver

    ≥ -68dBm pin10,pin16 = L ② ③ Resolder F100 F100 pin 13 ≥ -70dBm Resolder L108, L110, L112 pin 5,6 ≥ -70dBm Check UCP200 9-17 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 42: Pcs Receiver

    ≥ -68dBm pin10,pin16 = L ② ③ Resolder F100 F100 pin 13 ≥ -70dBm Resolder L100 ,L102,L105 pin 5,6 ≥ -70dBm Check UCP200 9-18 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 43 ≥ -68dBm pin10,pin16 = L ② Resolder F100 ③ F100 pin 13 ≥ -70dBm Resolder L119, C105, C106 pin 5,6 ≥ -70dBm Check UCP200 9-19 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 44 Flow Chart of Troubleshooting 9-20 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 45 Flow Chart of Troubleshooting L105 C124 L101 L100 L112 L109 L108 L117 L114 L113 C106 L118 C105 TP107 TP108 C101 PAM100 C110 R103 9-21 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 46: Gsm Transmitter

    L121 ④ PAM100 pin5 Check PAM100 pin ≥ -4dBm 1,2,3,20, VBAT OK? Resolder or Change PAM100 Check VBAT or PAM control signal Check UCP200 9-22 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 47: Dcs Transmitter

    ④ Check PAM100 pin 1, PAM100 pin3 2,3,20, VBAT OK? ≥ -4dBm Resolder or Change PAM100 Check VBAT or PAM control signal Check UCP200 9-23 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 48: Pcs Transmitter

    ④ Check PAM100 pin 1, PAM100 pin3 2,3,20, VBAT OK? ≥ -4dBm Resolder or Change PAM100 Check VBAT or PAM control signal Check UCP200 9-24 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 49 Flow Chart of Troubleshooting L105 C124 L101 L100 L112 L109 L108 L117 L114 L113 C106 L118 C105 TP107 TP108 C101 PAM100 C110 R103 9-25 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 50: Bluetooth Part

    3.0V Check 26KHz Clock on Check OSC100 BT100 (J5) Check the assembled Resolder of change ANT100 status of ANT100 Exchange Check UCP200 9-26 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 51 Flow Chart of Troubleshooting L126 L127 C119 BT_PWR_ON TP104 9-27 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 52: Block Diagrams

    V V o o l l u u m m e e K K e e y y Charger (USB/TA) M M o o t t o o r r SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 53: Pcb Diagrams

    TP222 C241 C345 C310 L300 R205 C328 TP303 D504 C302 C312 C301 C313 C320 TP302 C321 C303 TP300 R300 TP400 C309 C304 D500 P501 TP500 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 54 L101 L100 C425 TRSTB BB_RESET GND_200 L112 L109 L108 R222 C102 C423 L117 C335 L114 L113 C106 L118 C105 TP107 TP108 C101 PAM100 C110 R103 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 55 ※ Caution 1) Be care of scratch and molding damage. 1) Be care of damage to F-CPB.. 2) Be care of damage to F-CPB.. 11-1 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 56 1) Unscrew the 1 points. 2) Separate the SPEAKER MODULE from the 2) Separate the INTENNA from the BRACKET. BRACKET. ※ Caution ※ Caution 11-2 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 57 ※ Caution ※ Caution 1) Be care of damage the INTENNA. 1) Be care of damage the INTENNA. Be care of damage to MIC F-CPB. 11-3 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 58 3) Attach the SIDE KEY FPCB to the BRACKET. ※ Caution ※ Caution ) Be care of damage to F-CPB and WIRE. ) Be care of damage to F-CPB and WIRE. 11-4 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 59 DECO to the ASS'Y. ※ Caution ※ Caution 1) Be care of scratch and molding damage. 1) Be care of scratch and molding damage. 11-5 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
