Summary of Contents for Eternal Lighting IconMATE

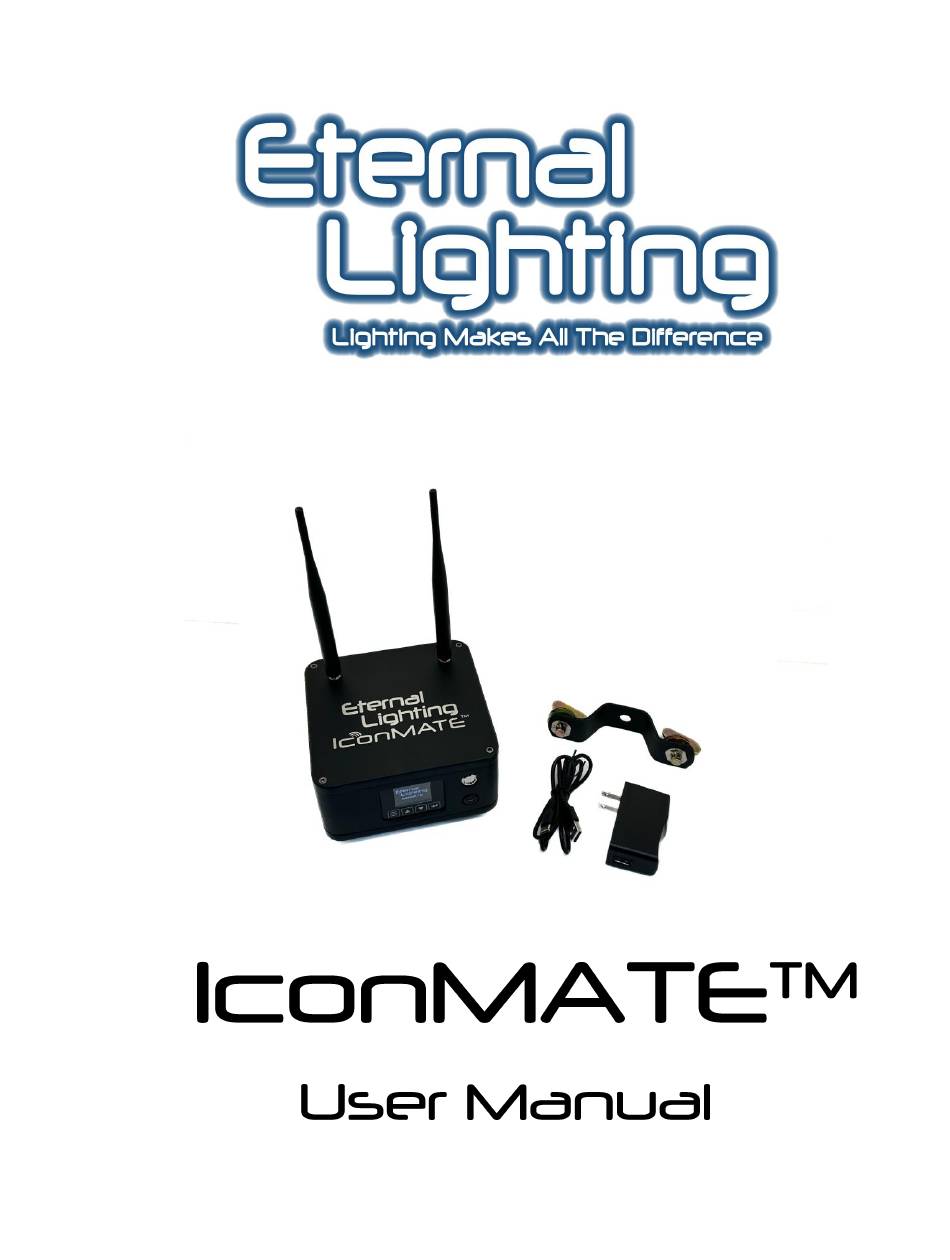

- Page 1 IconMATE Eternal Lighting 2024 ™...
- Page 2 (2) Wireless DMX Transmitters: (1) 2.4 Ghz Wireless DMX transmitter with 7 ID Groups compatible with the Eternal Lighting CUBE Series and (1) Robust Wireless DMX transmitter compatible with the Eternal Lighting ICON Series (up to 250ft line of sight). Both Wireless can be on working together simultaneously.
- Page 3 IconMATE™ Menu DMX Address 001-512 DMX Channel 6A CH Control On/Off Receive (Rx) Operating WDMX Transmit (Tx) Setting Link Receive Reset Control On/Off Receive Operating Transmit WirelessDMX Settings W-ID code 1ID-4ID-7ID Link Receive Reset 01~50 Preset Dimmer 000-255 Strobe 0-20...
-
Page 4: Menu Description
W-ID code: Choose 1 (Red), 2 (Green), 3 (Yellow), 4 (Blue), 5 (Purple), 6 (Cyan), 7 (White) Link: When the IconMATE™ is Control On and set as a Transmitter (Tx). Press Enter to link to the lights set as receivers (Rx). - Page 5 Reset Reload: Press this to set the IconMATE™ to Standard Settings that are in Bold in above chart. RF Remote Buttons: ON/OFF: ON is running the programs, OFF blacks out the lights. You will see on the IconMATE™ display screen the word On or Off for easy reference.
- Page 6 SOUND: Once pressed, use the UP or DOWN button to scroll through 1-20 Sound Modes. Press the SPEED button to adjust the sensitivity (Se) level (00 least-10 most). You can reference your selection on the IconMATE™ display on the bottom corners.
