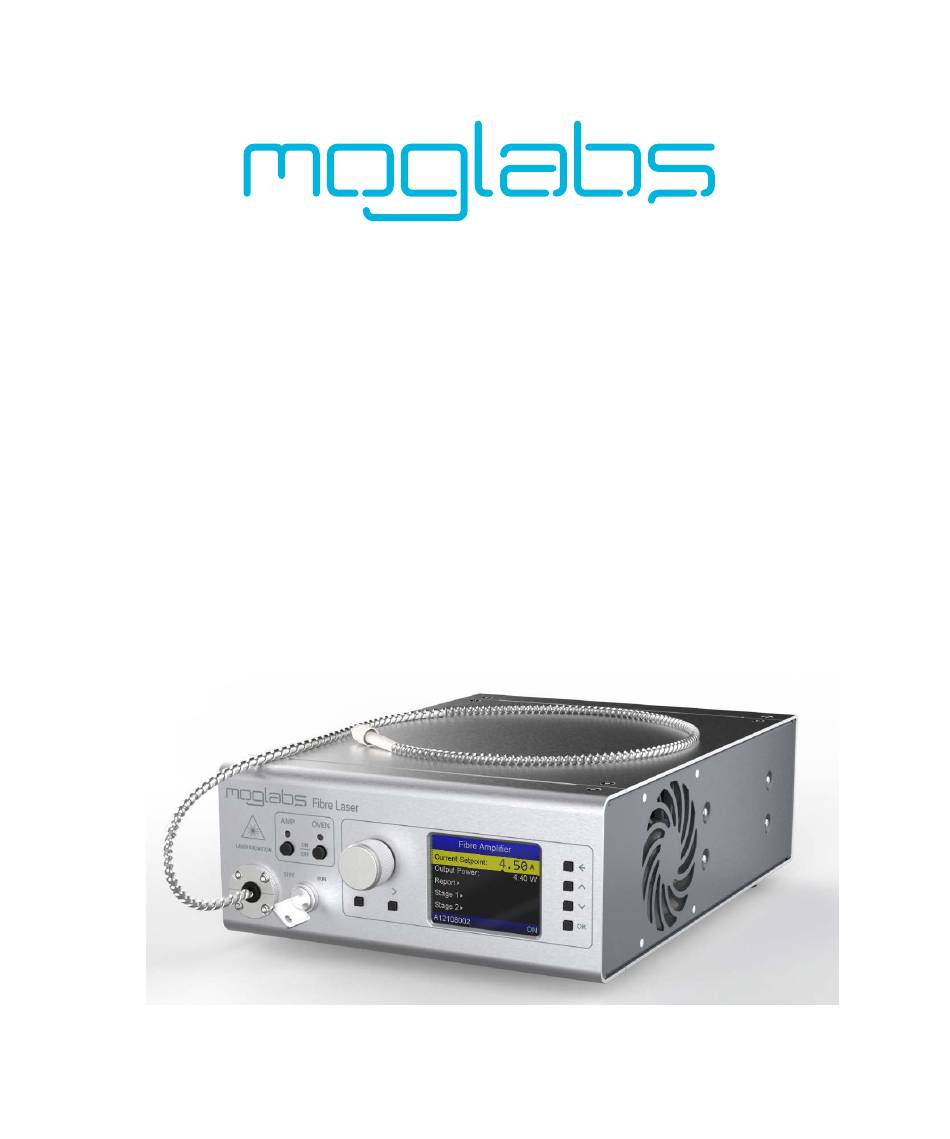

- Page 1 Compact Fibre Amplifier MGPA Revision 1.02...
-
Page 2: Limitation Of Liability
Limitation of Liability MOG Laboratories Pty Ltd ( abs) does not assume any liabil- MOGL ity arising out of the use of the information contained within this manual. This document may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of abs, nor the rights of MOGL... - Page 3 Preface Compact Fibre Amplifier is a modular system MOGL MGPA based on Er and Yb doped active fibres. Internal modules can include seed and a single stage of amplification, up to 2 W. Wavelengths ex- tend from 1000 to 1100 nm and 1535 to 1610 nm. A waveguide frequency doubler module can be incorporated to change the out- put wavelength range to either 500 to 550 nm or 767 to 805 nm, at powers up to 500 mW.
-
Page 5: Safety Precautions
Safety Precautions Safe and effective use of this product is very important. Please read the following safety information before attempting to operate your laser. Also please note several specific and unusual cautionary notes before using the , in addition to the safety MOGL MGPA precautions that are standard for any electronic equipment or for... - Page 6 removed from the controller when it is in the clockwise ( position. • To completely shut off power to the unit, turn the keyswitch anti-clockwise ( position), switch the mains power STANDBY switch at rear of unit to , and unplug the unit. •...
- Page 7 Model / serial number: MGPA / A132306001 Manufactured: JUNE 2023 Complies with 21 CFR 1040.10, and 1040.11 except for deviations US FDA compliance pursuant to Laser Notice No.50, dated 24 June 2007 MOG Laboratories Pty Ltd, 49 University St Carlton VIC 3053, AUSTRALIA Emission connector symbol LASER RADIATION Wavelength...
- Page 8 Model / serial number: MGPA / A132306001 Manufactured: JUNE 2023 Wavelength Complies with 21 CFR 1040.10, and 1040.11 except for deviations INVISIBLE LASER RADIATION 1030-1060nm pursuant to Laser Notice No.50, dated 24 June 2007 AVOID EXPOSURE TO BEAM Max power MOG Laboratories Pty Ltd, 49 University St CLASS 4 LASER PRODUCT Carlton VIC 3053, AUSTRALIA...
-
Page 9: Protection Features
Protection Features includes a number of features to protect you MOGL MGPA and your laser. Softstart A time delay (3 s) followed by linearly ramping the pump diode current (1 s/A max). Circuit shutdown Many areas of the circuitry are powered down when not in use. - Page 10 viii Key-operated The amplifier cannot be powered unless the key-operated STANDBY switch is in the position, to protect against unauthorised or accidental use. The key cannot be removed from the con- troller when it is in the clockwise ( ) position. Interlocks The main unit has an external interlock to allow the amplifier to be disabled via a remote switch.
-
Page 11: Table Of Contents
Contents Preface Safety Precautions Protection Features 1 Introduction 1.1 Front panel controls ....1.2 Rear panel connections ....2 Menus 2.1 Main menu . - Page 12 Contents C.2 Headboard connection to controller ..D Connector pinouts D.1 Interlock ......E Communications E.1 Protocol .
-
Page 13: Introduction
1. Introduction is a modular compact fibre amplifier system MOGL MGPA based on Er and Yb doped active fibres. It uses an internal or exter- nal (depending on the model) seed laser and an amplification stage providing output power levels up to 2 W. The operating wavelength ranges include 1000 to 1100 nm for Yb active fibre and 1535 to 1610 nm for Er active fibre. -
Page 14: Front Panel Controls
Chapter 1. Introduction 1.1 Front panel controls Fibre Laser OVEN LASER RADIATION STBY mode, the amplifier is disabled, no current is applied to STANDBY STANDBY the pump diode. mode, the internal amplification stage is placed into standby, ready to be activated. On first power-up and during the boot pro- cedure the will halt if the key is already in the position,... -
Page 15: Rear Panel Connections
1.2 Rear panel connections If the oven controller fails to switch to mode (indicator does STANDBY not show yellow), see Appendix B. The rotary encoder allows variation of any editable value on the ADJUST display. The knob can be pressed to step through different digits of the value being edited, to allow for fine and coarse control. - Page 16 Chapter 1. Introduction fibre mating sleeve for external seed laser. Presence de- FIBRE INPUT pends on system model. A non-AR coated fibre connector FC/APC must be used. The maximum input power must not exceed 300 mW. input provides coupling to an active modulation circuit CURRENT MOD of the internal seed laser.
-
Page 17: Menus
2. Menus can be controlled via a detailed on-unit display MOGL MGPA menu system. There are four push buttons to the right of the display, to step through the menus. The large encoder knob can be rotated to change a value, and also acts as a push-button to select the character or digit to be adjusted. -
Page 18: Report Menu
Chapter 2. Menus Report→ or Options→ line and press OK to enter those submenus. 2.2 Report menu menu provides access to crucial information of the ampli- Report fication stage inside the MGPA 2.3 Oven menu The Oven menu provides control of the waveguide doubler oven, if available. -
Page 19: Ethernet Settings
2.5 Ethernet settings 2.5 Ethernet settings network parameters. To effect new settings, select the Restart TCP/IP ethernet menu option which is initially off-screen at the bottom. - Page 20 Chapter 2. Menus...
-
Page 21: Operation
3. Operation 3.1 Getting started armoured fibre connector cap should be re- MOGL MGPA moved before turning the amplifier on to prevent permanent damage. To operate the MGPA 1. Ensure the rear power switch is on, and the STANDBY switch is in the position. -
Page 22: Interlocks
Chapter 3. Operation the operation mode: constant current (CC) or constant power (CP). The mode can be changed in the Options menu. 9. Adjust the current setpoint (or output power) as required, us- ing the display or mogmgpa application. If the was pur- MGPA chased as part of a laser system, this will have been factory-set... - Page 23 3.2 Interlocks 3.2.2 Key switch The key switch on the front-panel must be set to Run to enable the output. As a safety procedure, it is necessary to manually MGPA toggle the key switch after power-cycling the unit; it cannot simply be left in the position.
- Page 24 Chapter 3. Operation will provide information on the cause of the system shutdown.
-
Page 25: A Specifications
A. Specifications Parameter Specification Fibre amplifier Output current 0 to 20 A, configuration dependent Output power Up to 2 W (wavelength dependent) Display resolution ±10 mA, ±10 mW Noise TBD (10 Hz – 1 MHz, depending on the seed laser) Stability 3% rms Warmup time... - Page 26 Appendix A. Specifications Parameter Specification Oven controller Operating Ambient to 85 ◦ temperature Accuracy ±0 02 ◦ Long-term stability ±0 05 ◦ Regulator type PID, hysteresis Warmup time 15 minutes Computer interface Ethernet 10/100 TP, RJ45 USB 2.0, plug type USB-A Display 2.8”...
- Page 27 Parameter Specification Mechanical & power 24 V ball-bearing IEC input 80 to 264 V 47 – 63 Hz Dimensions LxWxH = 290 × 209 × 89 mm Weight 1.1 kg (excluding cables) Power 3 W (standby) Up to 30 W, configuration-dependent...
- Page 28 Appendix A. Specifications...
-
Page 29: Troubleshooting
B. Troubleshooting detects a wide range of fault conditions and de- MOGL MGPA activates related circuitry accordingly. The front panel provide LEDs indication of the state of these functions. B.1 AMP indicator Colour Status Deactivated; check interlock and key switch DARK Standby mode, ready to be enabled YELLOW... -
Page 30: Error States
Appendix B. Troubleshooting B.3 Error states If an error is detected, the display will provide an explanatory message from the table below. Error Message Solution Firmware update in Amplifier cannot be enabled during progress the firmware update. Restart the de- vice after the firmware update is fin- ished. -
Page 31: State Flags
B.4 State flags B.4 State flags State flags are used to monitor the amplification stage and can be very helpful in troubleshooting. The flags are constantly updated in the menu. These flags are represented by two numbers Report separated by space. Both numbers are in hexadecimal format. The first number is called a global (or board) flag and provides information about global triggers (interlock, power good and signals). - Page 32 Appendix B. Troubleshooting B.4.2 STAGE flag Flag name HEX Description SUDDEN DROP 0x01 Output power has dropped by more then 20% ILIM TRIG 0x02 Overcurrent protection has been triggered ILIM EN 0x04 1:Overcurrent protection enabled INPUT POWER LOW 0x08 Seed input power too low INPUT POWER HIGH 0x10 Seed input power too high SHORT CIRCUIT 0x20 Output is short circuit...
-
Page 33: C Laser Headboard
C. Laser headboard Amplifiers with internal seed laser will have a laser head interface board that provides connection breakout to the laser diode, temperature sensor, and laser head interlock. It also includes a protection relay and passive protection filters and an connection for direct diode current modulation. -
Page 34: B5186 Headboard
Appendix C. Laser headboard C.1 B5186 headboard Headboard type B5186 provides high-speed active modulation of the diode current. It uses 500 MHz opamps and very low latency circuitry to reduce phase delay to around 12 ns. The B5186 allows for closed-loop bandwidth of about 4 MHz (without phase advance), which is helpful in achieving sub-Hz linewidth reduction by lock- ing to a high-finesse optical cavity. - Page 35 C.1 B5186 headboard C.1.1 input The B5186 input provides coupling to an active mod- ulation circuit. Note that connection to the input will reduce the diode current by about 2.5 mA, with zero input voltage. B5186 Input range ±2 0 V max Input coupling DC (direct) AC/DC (buffered)
-
Page 36: Headboard Connection To Controller
Appendix C. Laser headboard C.2 Headboard connection to controller abs laser cable is a digital (dual link) cable. MOGL DVI-D DL Note There is a bewildering assortment of apparently similar cables avail- able. Most computer display cables will not work because they are missing important pins;... -
Page 37: D Connector Pinouts
D. Connector pinouts D.1 Interlock An standard 3-pin connector should be used to connect an inter- lock to the controller. The will not power on the pump MGPA MGPA diode unless Pin 1 and Pin 3 are short-circuited. The pins should be shorted using a relay for integration within a laboratory interlock system. - Page 38 Appendix D. Connector pinouts...
-
Page 39: E Communications
E. Communications can be connected to a computer by or ethernet MGPA ) and integrated into existing control software. If you are TCP/IP experiencing difficulty in connecting to your , please review MGPA the detailed instructions available at www.moglabs.com/support/ software/connection. E.1 Protocol Communication follows a query/response protocol, where the user sends a text string to the unit, and the unit returns a text response. -
Page 40: Tcp/Ip
Appendix E. Communications < 22.635 C > TEMP < ERR: Temperature sensor missing E.2 TCP/IP When ethernet is connected, the will attempt to connect to the MGPA network using saved values, which can be altered using the front- panel menu system. If is enabled the device will first try to DHCP obtain an... - Page 41 E.3 USB Figure E.1: Screenshot of Device Manager, showing that the MGPA be communicated with using COM4. The port number might change when plugging into a different port, or after applying a firmware update. If the port appears in Device Manager with a different name, then the driver was not successfully installed.
- Page 42 Appendix E. Communications...
-
Page 43: F Command Language
F. Command language is controlled via a text-based communications protocol MGPA which allows for simple integration into existing control systems. Please note: the command language is being continuously updated across firmware releases to improve functionality and add features. When upgrading firmware, please refer to the most recent version of the manual available at http://www.moglabs.com. - Page 44 Appendix F. Command language STATE STATE Responds with current state of the amplifier. REPORT REPORT[,num] Returns a dictionary (comma-separated list of key-value pairs) of present amplification stage settings and measured values. lects the amplification stage. The order of entries in the dictionary is subject to change at any time.
-
Page 45: Ethernet Settings
F.2 Ethernet settings IMON IMON,[num] Reports the actual measured current through the pump diode for amplification stage. TMAX TMAX,[num] Reports the maximum measured temperature for amplification stage. FAN,[num] Reports the actual measured fan speed in amplification stage. Consists of two numbers separated by a space, representing the speed of each fan respectively. - Page 46 Appendix F. Command language ETH,DHCP ETH,DHCP[,onoff] Enable or disable . Set to non-zero to enable ; zero to DHCP DHCP use static address.
- Page 48 MOG Laboratories Pty Ltd © 2016 – 2025 49 University St, Carlton VIC 3053, Australia Product specifications and descriptions in this doc- Tel: +61 3 9939 0677 info@moglabs.com ument are subject to change without notice.
