Summary of Contents for ARTNOVION Siena K

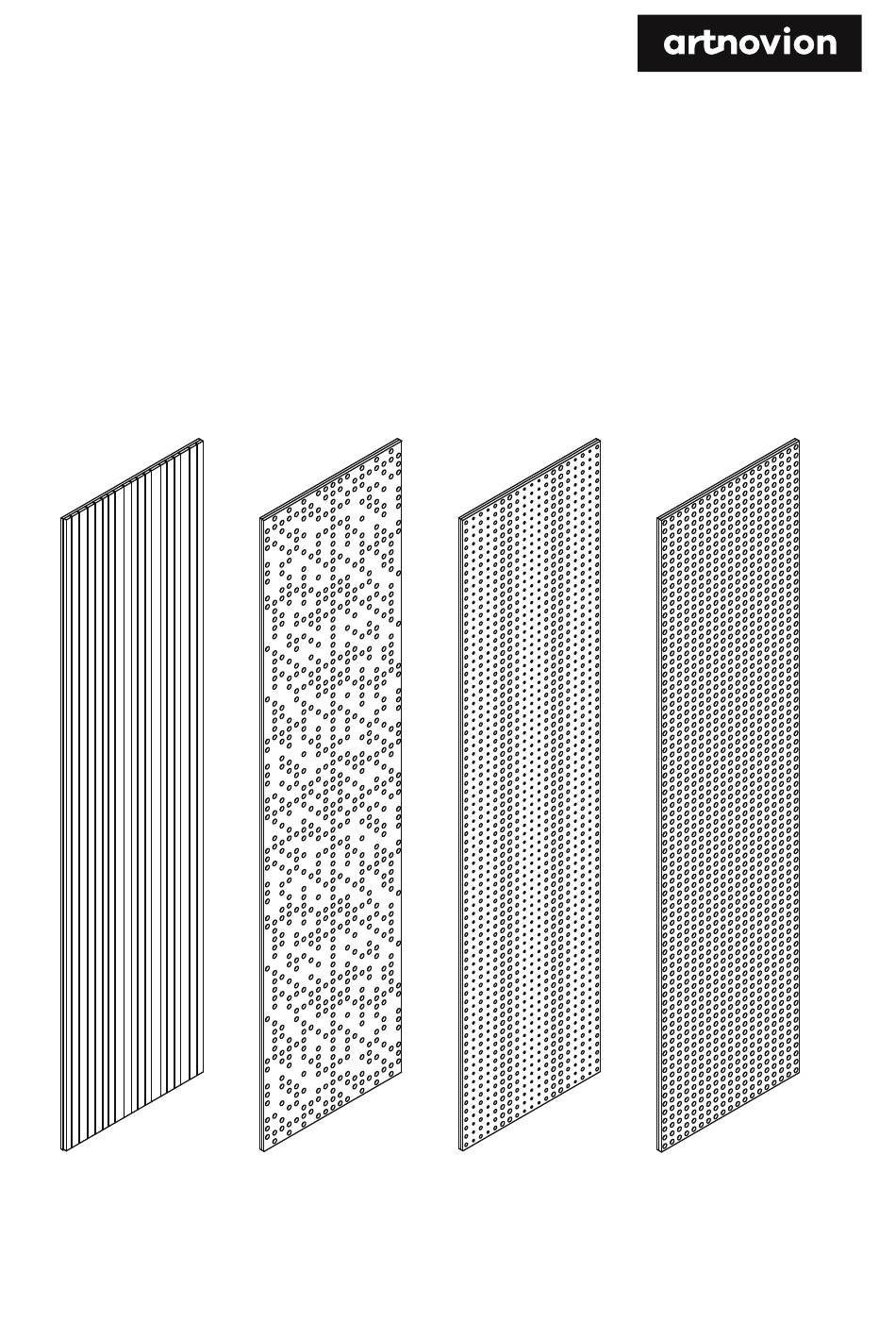

- Page 1 Installation guide Siena K Lyra K Kea K Norma K www.artnovion.com...
- Page 2 Adhesive Installation The use of adhesive by itself is advised only for installations on walls In case of screw and/or batten installation, go to pages n. 5-8 pag. 2...
- Page 3 When installing Siena K or Lyra K on the ceiling, the use of battens along with adhesive and screws is mandatory. pag. 3...
- Page 4 Cutting the panel Cutting vertically Cutting horizontally Reinforce cut PET with staples or screws pag. 4...
- Page 5 Screw Installation pag. 5...
- Page 6 Batten Installation Siena K 24 & Lyra K 24 Last batten aligned to the end of the panel Batten >30mm PET 30mm Batten thickness 30mm Recommended batten size: 2x2” Batten >45mm PET 45mm Batten thickness 45mm Recommended batten size: 2x3”...
- Page 7 Batten Installation Siena K 27 & Lyra K 27 Last batten aligned to the end of the panel Batten >30mm PET 30mm Batten thickness 30mm Recommended size: 2x2” Batten >45mm PET 45mm Batten thickness 45mm Recommended size: 2x3” pag. 7...
- Page 8 Batten Installation Optional: If not installing wall-to-wall, place finish batten along the sides of the array Batten Installation Place the acoustic material between battens. PET can be cut to fit with a sharp X-acto blade. pag. 8...
- Page 9 Batten Installation pag. 9...
-
Page 10: Guarantee Policy
In the unlikely event that your product develops a fault, please contact your vendor or our product support department at support@artnovion.com. Please note the following terms under which guarantee claims can be made: 1.These guarantee terms cover additional guarantee rights and do not affect...
