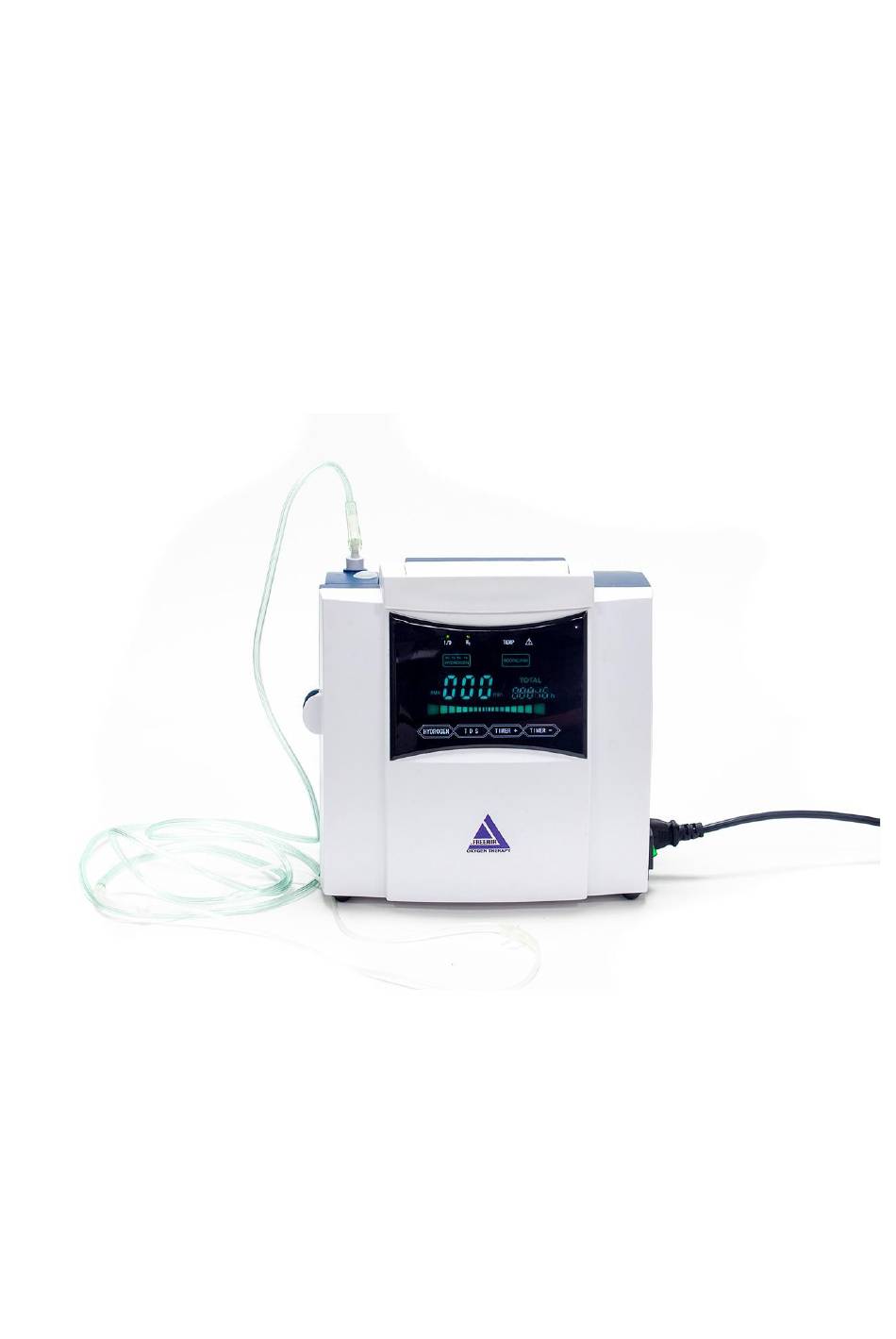

- Page 1 HG Series Hydrogen Machine Instruction manual Before using the hydrogen machine, please read the instruction manual carefully...
- Page 2 1 Product description 1.1 Product model introduction Model Input Power Hydrogen Oxygen Hydrogen Oxygen Water Power Supply Flow Flow Concentration Concentration Consumption AC100- 210W 240V 600mL/min 99.99% 18mL/h 600A 50/60Hz AC100- 210W 240V 99.99% 99.99% 18mL/h 600B mL/min mL/min 50/60Hz 1.2 Product Size Length x width x height: 283 x 195 x 273mm 1.3 Product net weight: 4.7kg...
- Page 3 2. Operation and use 2.1 Preparation before use 2.1.1 First check whether the appearance of the machine is damaged, whether the power cord, plug, switch and power socket are in good condition, and check whether the silicone plug of the drain port has fallen off.
- Page 4 2.3 Shutdown When shutting down the machine, first press the button "HYDROGEN" to stop the machine and enter the standby state, then turn the switch to the "0" position to turn off the power, and finally unplug the power plug to completely cut off the power. Note: After the machine stops running, the cooling fan and circulating water pump will continue to run for 10 seconds, please turn off the power after the cooling fan and circulating water pump stop working.
- Page 5 3.3.2 Deep cleaning a. Place the machine horizontally on the desktop. After the water tank is filled with water, press the spring buckle at the bottom of the water tank, first pull out the bottom of the water tank for about 2cm, then pull out the cover on the top of the water tank for about 2cm, and unplug the connecting pipe on the water tank, remove the water tank.
- Page 6 4.6 Water shortage alarm When the machine is running, the water in the water tank is lower than the minimum water level or the electrolytic tank is short of water, the red light on the screen of the machine is on, the machine stops running, and the display shows "E-3".
- Page 7 6 Packing List Hydrogen machine 1 set Nasal cannula 2 sticks Water bottle SS 316 Bubble diffuser Hydrogen connecting pipe (φ5×φ12×350mm) Oxygen connecting tube (φ5×φ8×200mm) (HG-600B) Filter 1 block Hydrogen glasses 1 set power cable Y joint (φ5.6mm) Fuse (5×20mm, 3A) Silicone plug for water inlet (φ20mm) Drain port silicone plug (φ5mm) Hydrogen outlet fitting...
