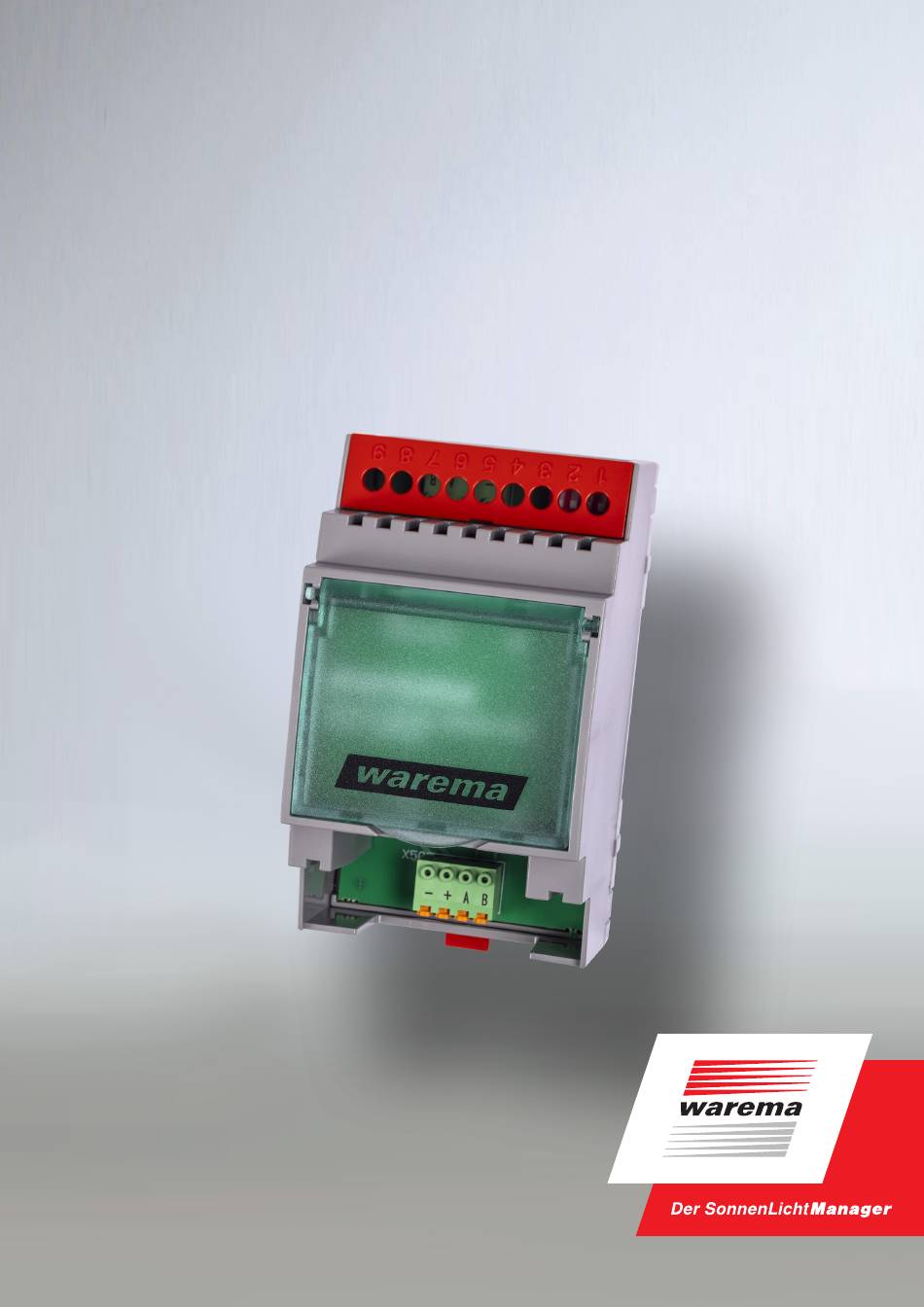

- Page 1 Omnexo Sensor Splitter REG Installation instructions Valid from 1 May 2025 warema_2063667_alhb_en_v2...
-
Page 2: General Information
Operating instructions, manuals and software are protected by copyright. All rights to the software are specified in the licence agreement included. WAREMA and the WAREMA logo are trademarks of WAREMA Renkhoff SE. All other brand or product names included in this document are trademarks or registered trademarks of their respective owners. -
Page 3: Table Of Contents
Contents Table of contents Features ......................4 Safety instructions ................... 5 Meanings of symbols and pictograms ............5 Intended use ......................7 Target group ......................7 Retrofitting and modifications ................7 Installation, connection and repairs ..............8 Additional documents ..................9 Maintenance......................9 2.7.1 Cleaning ......................9 Liability ........................9 Obligations for the disposal of electrical devices ...........9 Installation ...................... -
Page 4: Features
Omnexo Sensor Splitter REG 1 Features The Sensor Splitter is used to connect multiple Omnexo Central control units to 1 to 3 weather stations. Thus, separate sensors are not needed for each central control unit. For ex- ample, if there is one central control unit per storey in a construction project, all central control units can be supplied with the necessary weather data from a single weather station. -
Page 5: Safety Instructions
Omnexo Sensor Splitter REG 2 Safety instructions We developed and tested the Sensor Splitter in compliance with the basic safety requirements. Residual risks nevertheless remain! For this reason, please read these instructions before commissioning and operating the control! It is very important to follow the safety instructions listed here and the... - Page 6 Omnexo Sensor Splitter REG The following pictograms and symbols may be affixed to the control unit itself or to the connected devices, alerting you to potential danger: WARNING Warning against dangerous electrical voltage! CAUTION Component damage due to electrostatic discharge! The i symbol denotes important information and helpful tips.
-
Page 7: Intended Use
Omnexo Sensor Splitter REG 2.2 Intended use The Omnexo Sensor Splitter is an electronic device that is used to connect up to three weather stations to multiple Omnexo Central control units. The device is designed for interior installation. The approval of the manufacturer... -
Page 8: Installation, Connection And Repairs
Omnexo Sensor Splitter REG 2.5 Installation, connection and repairs DANGER Danger to life through electrical voltage! Connecting, maintenance or repair work on the electrical parts of the entire unit must only be performed when power to the unit has been cut off, unless otherwise described! The unit must also be sufficiently secured against unau- thorised and inadvertent reactivation. -
Page 9: Additional Documents
Omnexo Sensor Splitter REG 2.6 Additional documents When performing the installation, follow the separate instructions of the com- ponents being connected. 2.7 Maintenance There are no parts inside the device that require maintenance. 2.7.1 Cleaning Clean the housing with a soft, dry cloth. -
Page 10: Installation
Omnexo Sensor Splitter REG 3 Installation This section will tell you where and how the individual components have to be installed. WARNING Dangerous situations and malfunctions are possible! The device and its auxiliary components may only be operated when installed and at the specified installation locations. -
Page 11: Installing The Device
Omnexo Sensor Splitter REG 3.1 Installing the device The devices are designed for installation in a distributor. They are to be in- stalled in a dry and readily accessible location. The devices must never be mounted outdoors or exposed to direct sunlight. -
Page 12: Connection
WAREMA Weather station move. If one WAREMA Weather station pro or multiple WAREMA Weather station move are connected, they must be supplied by a separate power supply unit. The specified lines are recommendations. As specified in VDE 0022, the operating company and the installer are responsible for compliance with the regulations put forth by the power supply company and the VDE. -
Page 13: Bus Lines
Omnexo Sensor Splitter REG 4.2 Bus lines CAUTION Only make changes to the bus wiring while the unit is in a de-energised state. Several basic principles must be observed to ensure fault-free bus communi- cation. Do not swap the connections of the bus of the central control unit (terminal X50) with the bus connections for the weather stations (terminal X56). -
Page 14: Hardware Settings On The Sensor Splitter
Omnexo Sensor Splitter REG 4.3 Hardware settings on the Sensor Splitter For the bus communication to operate properly, only one Sensor Splitter may query the measuring values of the connected weather stations. This Sensor Splitter must be set as a MASTER using the encoding switches on the board of the Sensor Splitter. -
Page 15: Wiring Diagrams
Omnexo Sensor Splitter REG 5 Wiring diagrams Terminal X56 Encoding switch Bus connection for the weather Definition of the stations and master power supply for weather 1 2 3 4 station Terminal X50 Connection of Service-LED the 24 V DC... - Page 16 Commissioning Flashes during active bus communication with the connected central control unit Bus of weather stations (4 outputs) Power supply for weather station (max. 1 WAREMA Weather station move) Communication (RS485) Encoding switch MASTER The connected central control unit queries data directly from the weather stations.
-
Page 17: Connecting To The Omnexo Central Control Unit
Otherwise, long line lengths may result in communication problems. The WAREMA Weather station pro has a 120 Ω terminating resistor that can be connected via a switch (see documentation on the weather station). The WAREMA Weather station move is supplied with a terminating resistor (see documentation for the weather station). - Page 18 Omnexo Sensor Splitter REG Fig. 9 Connection example for Omnexo Central control unit We reserve the right to make technical modifications warema_2063667_alhb_en_v2•2025-05-01...
-
Page 19: Connecting A Separate Power Supply Unit
Omnexo Sensor Splitter REG 5.2 Connecting a separate power supply unit If a large number of devices are used, additional power supply units may be required. It is also necessary to use separate power supply units if individual unit sections are to be switched on and off separately. -
Page 20: Connecting Multiple Weather Stations
Omnexo Sensor Splitter REG 5.3 Connecting multiple weather stations Up to 3 WAREMA weather stations can be connected to Omnexo Central control units. The ends of the bus line must be terminated with a WAREMA WAREMA WAREMA 120- resistor. To do this, insert the enclosed resistors... -
Page 21: Commissioning
Omnexo Sensor Splitter REG 6 Commissioning Each Omnexo network is commissioned separately one after the other. When commissioning the Omnexo Central control unit, a small amount of rewiring work is required. CAUTION Only make changes to the bus wiring while the components and networks are in a de-energised state. -
Page 22: Procedure For The Omnexo Central Control Unit
Omnexo Sensor Splitter REG 6.1 Procedure for the Omnexo Central control unit During commissioning, only make changes to the red and black wires of the bus lines. Only switch on the voltage of the network that is currently being commis- sioned. - Page 23 Omnexo Sensor Splitter REG Weather station Sensor bus Sensor Splitter 1 Sensor Splitter 2 Bus wiring MASTER SLAVE for comissioning of Omnexo Central BK RD BK RD Bus 1 Bus 2 control unit 1 Omnexo Omnexo = terminating resistor Central control unit 2...
-
Page 24: Technical Data
Omnexo Sensor Splitter REG 7 Technical data Omnexo Sensor Splitter REG min. typ. max. Unit Supply Operating voltage (SELV) 21.6 26.4 V DC Power consumption Housing Dimensions See Fig. 3 on page 11 Housing type DIN rail-mounted housing (REG) Degree of protection DIN... -
Page 25: Troubleshooting
Omnexo Sensor Splitter REG 8 Troubleshooting 8.1 Table for troubleshooting If problems occur during commissioning or while the unit is being operated, you can identify and eliminate the cause using the following table. Problem Possible cause Remedy When commissioning the weather sta- A Sensor Splitter (Master) is still in opera- All Sensor Splitters must be switched off. -
Page 26: Replacing A Weather Station With An Omnexo Central Control Unit
Omnexo Sensor Splitter REG 8.2 Replacing a weather station with an Omnexo Central control unit Proceed as follows to replace a faulty weather station: Switch off the power supply for the weather station, Sensor Splitter MASTER and the first Omnexo Central control unit (bus 1). - Page 27 Omnexo Sensor Splitter REG warema_2063667_alhb_en_v2•2025-05-01 We reserve the right to make technical modifications...
- Page 28 KEEP IN A SAFE PLACE FOR COMMISSIONING! Note down installation location here Notes on commissioning (e.g. special features of installation location, wiring, etc.): WAREMA Renkhoff SE Hans-Wilhelm-Renkhoff-Strasse 2 http://www.warema.com info@warema.com 97828 Marktheidenfeld/Main Germany...
