USER MANUAL

ProDAQ VXI Data Acquisition Systems

ProDAQ 1630

13-Slot Smart VXIbus Chassis

Bustec Production Ltd.

Bustec House, Shannon Business Park, Shannon, Co. Clare, Ireland

Tel: +353 (0) 61 707100, FAX: +353 (0) 61 707106

Table of Contents

Need help?

Do you have a question about the ProDAQ 1630 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bustec ProDAQ 1630

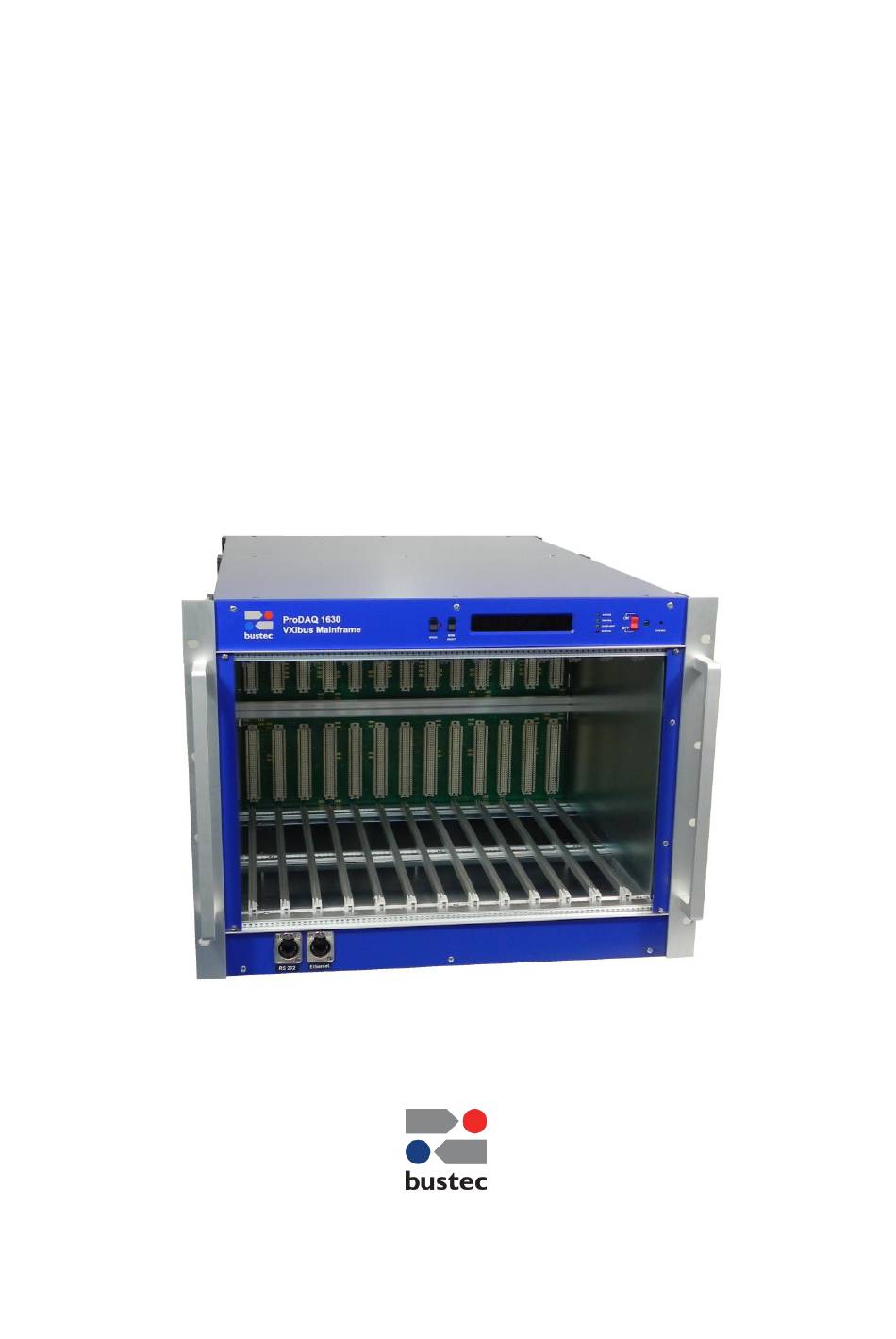

Page 1 USER MANUAL ProDAQ VXI Data Acquisition Systems ProDAQ 1630 13-Slot Smart VXIbus Chassis Bustec Production Ltd. Bustec House, Shannon Business Park, Shannon, Co. Clare, Ireland Tel: +353 (0) 61 707100, FAX: +353 (0) 61 707106...
Page 2: Proprietary Notice
This document and the technical data herein disclosed, are proprietary to Bustec Production Ltd., and shall not, without express written permission of Bustec Production Ltd, be used, in whole or in part to solicit quotations from a competitive source or used for manufacture by anyone other than Bustec Production Ltd.
Page 3: Table Of Contents
Programming via the front-panel switches ............10 2.3. Build-in Web Server ................... 13 2.4. VXIplug&play Driver ................... 14 2.4.1. Connecting to the ProDAQ 1630 ..............14 2.5. Getting Status Information .................. 14 2.6. Controlling the Fan Speed .................. 16 SPECIFICATIONS ...................... 17 3.1.
Page 4 Table of Figures Figure 1 - ProDAQ 1630 VXIbus Mainframe ................. 7 Figure 2 - ProDAQ 1630 Front Panel Controls ..............9 Figure 3 - ProDAQ 1630 Web Page ................... 13 Figure 4 - Connecting to the ProDAQ 1630 ................ 14 Figure 5 - Obtaining Status Information ................
Page 5: Reference Documents
The affixed product label indicates that you must not discard this electrical product in domestic household waste. Product Category: Monitoring and Control Instrumentation To return unwanted products, contact Bustec Ltd. Copyright, ©2017 Bustec Production Ltd. Page 5 of 18...
Page 7: Introduction
1. Introduction 1.1. Overview The ProDAQ 1630 chassis is a compact design with high density, highly sophisticated modular designed power supplies. The power supply features medium output power up to 2.5 kW, with extremely low noise and ripple (PARD). The 8U, 13-slot chassis offers superior cooling due to an efficient air guiding system.
Page 8: Cooling
ProDAQ 3058 VXIbus Slot-0 Controller User Manual 1.3. Cooling The ProDAQ 1630 features a 3U fan tray in the rear of the chassis, a 1U compression chamber below the VXI card cage and a 1U exhaust above the card cage.
Page 9: Operation
The ProDAQ 1630 can be operated locally via the switches and display on the front panel or remotely via the VXIplug&play driver provided. 2.1. Front Panel Controls The ProDAQ 1630 features a number of switches, LEDs and a display on the front panel to operate the chassis. Figure 2 - ProDAQ 1630 Front Panel Controls...
Page 10: Programming Via The Front-Panel Switches
In the following example two lines in the “Display” column denote the alternating display of these two lines in the display. Parts that are shown blinking in the display are shown with alternate background color: Copyright, ©2017 Bustec Production Ltd. Page 10 of 18...
Page 11 Accept change, to next item P▲ 196.168.91.94 Accept change, to next item P▲ 196.168.91.94 Accept change, to next item P▲ 196.168.91.94 Back to submenu selection P▲ TCPIP Gateway 196.168.91.94 Leave submenu M▼ TCPIP: no link Copyright, ©2017 Bustec Production Ltd. Page 11 of 18...
Page 12 SNMP Port 161 Restore the default SNMP settings SNMP Default No Display the fan rotation speed Change the time for which the fans will continue running after switching the power supply off Copyright, ©2017 Bustec Production Ltd. Page 12 of 18...
Page 13: Build-In Web Server
After you have configured the TCP/IP port via the local controls, you can open the web page of the ProDAQ 1630 in any browser simply by typing the IP address in the address line of the browser. The web page shown displays relevant information regarding the voltages and temperatures of the chassis and allow you to operate the main power, reset line and fan speed.
Page 14: Vxiplug&Play Driver
The VXIplug&play driver for the ProDAQ 1630 is designed to connect to the chassis via the TCP/IP link. You will need to configure the TCP/IP port of the ProDAQ 1630 and connect it to your network to be able to remotely access the chassis using the driver.
Page 15: Figure 5 - Obtaining Status Information
ViSession sesn; ViChar descr[256]; ViBoolean mainPower, inputFailure, outputFailure, fanFailure, sensorFailure, sysfail; ViReal64 p24V_V, p12V_V, p5V_V, m2V_V, m5_2V_V, m12V_V, m24V_V; /* connect to a ProDAQ 1630 */ if ((status = bu1630_init(“TCPIP0::192.168.91.80::SOCKET”, VI_TRUE, VI_TRUE, &sesn)) < VI_SUCCESS) viStatusDesc (sesn, status, descr); printf (“Error: bu1630_init() failed due to %s\n”, descr);...
Page 16: Controlling The Fan Speed
(int argc, char **argv) ViStatus status; ViSession sesn; ViChar descr[256]; ViInt32 speed; /* connect to a ProDAQ 1630 */ if ((status = bu1630_init(“TCPIP0::192.168.91.80::SOCKET”, VI_TRUE, VI_TRUE, &sesn)) != VI_SUCCESS) viStatusDesc (sesn, status, descr); printf (“Error: bu3416_init() failed due to %s\n”, descr);...
Page 17: Specifications
100 - 240 VAC, 50 - 60 Hz, max. 16 A Protection All voltages are protected against over- and under- voltage, over-current, over-temperature and shorts. 3.5. Physical Specifications Dimensions 19 in. x 8U x 590 mm Weight 38 kg Copyright, ©2017 Bustec Production Ltd. Page 17 of 18...
Page 18 Bustec Production, Ltd. Bustec House, Shannon Business Park, Shannon, Co. Clare, Ireland Tel: +353 (0) 61 707100, FAX: +353 (0) 61 707106...
