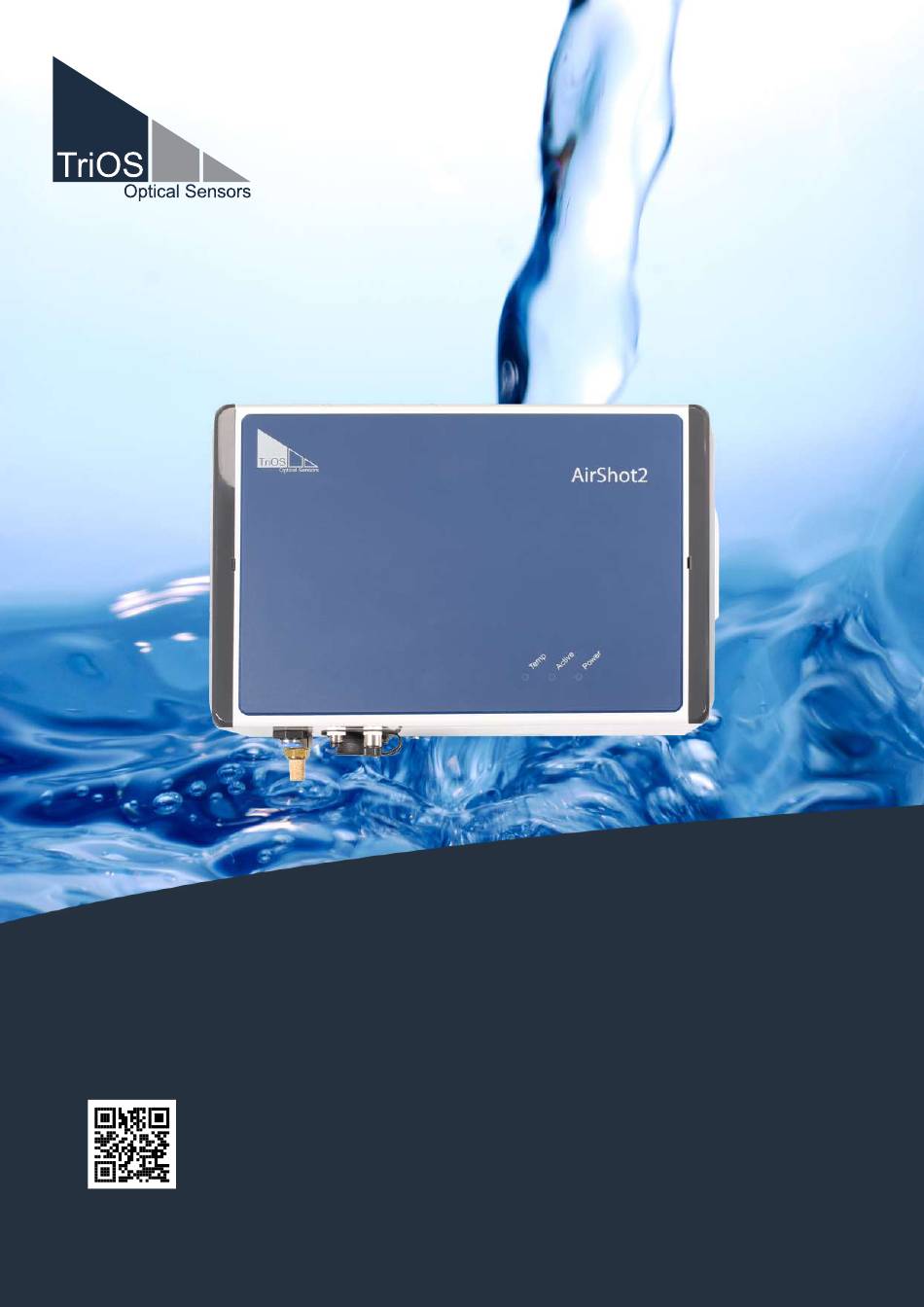

Page 1 AirShot2 Operating instructions...
Page 2: Table Of Contents
AirShot2 // Table of contents Table of contents 1 General information 1.1 General information 1.2 Health and safety instructions 1.3 Warnings 1.4 User and operating requirements 1.5 Intended use 1.6 Disposal instructions 1.7 Certificates and approvals 2 Introduction 2.1 Introduction 2.2 Scope of delivery...
Page 3: General Information
AirShot2 a valuable addition to any system. AirShot2 can be operated with a TriBox3 or TriBox mini as an alternative to a standard compressor. To pre- vent AirShot2 from overheating, an internal monitoring system (temperature sensor) is installed.
Page 4: Warnings
• Do not cut, damage or modify the cables. Ensure that there are no heavy objects on the cables and that they do not kink. Ensure that the cables do not run close to hot surfaces. • If a cable is damaged, it must be replaced with an original part by TriOS Mess- und Datentechnik GmbH Technical Support.
Page 5: Intended Use
1.5 Intended use The accessory is intended exclusively as a compressed air cleaning system for operation on a TriBox3 or TriBox mini in conjunction with TriOS sensors. Please observe the technical data of the accessories. Any other use is considered improper.
Page 6: Introduction
Areas of application: • Use in bodies of water, sewage treatment plants, industrial process monitoring • Marine and environmental research The following chapters explain the correct operation of the AirShot2 system with all its functions and setting options. 2.2 Scope of delivery...
Page 7: Product Identification
AirShot2 // Introduction 2.3 Product identification All TriOS Mess- und Datentechnik GmbH products are provided with a product label that clearly shows the product designation. There is also a type plate on the device with the following information, which you can use to clearly identify...
Page 8: Commissioning
AirShot2 // Commissioning 3 Commissioning This chapter covers the Commissioning of the AirShot2 up to the first function test. Please pay particular at- tention to this section and follow the safety instructions to protect the product from damage and yourself from injury.
Page 9 Overvoltage protection should be used for outdoor installations. The figure “Connection overview” shows an overview of the most important connections of the AirShot2 sys- tem. These include the compressed air output of the system, which supplies the sensors with compressed air via a connection hose.
Page 10: Led Display
Please note: The compressed air hose should not run over the AirShot2 in the application. 3.3 LED display The AirShot2 has three white* LEDs on the front of the device, which are either permanently lit or switched off. They have the following meaning: Temp Lights up when the internal temperature is too hot or too cold.
Page 11: Application
From the “IN” side of the pulse valve, connect the 10 m hose to the compressor. Then connect the AirShot2 system to a controller via the control line (see the following chapters). Connect the AirShot2 to the power supply using the power cable. The power LED should now light up. 4.1.1 Connection to TriBox3...
Page 12 AirShot2 // Application Lay the AirShot2 cable (control cable M8) through the cable guide of the TriBox3 and secure the cable guide on the wider part of the cable. Connect the blue-black wire of the valve cable to pin 2 (GND) of the CON15 connector and the brown- white wire to pin 1 (+12V) as described in the table below.
Page 13: Connecting To Tribox Mini
Insert the AirShot2 cable through the cable guide of the TriBox mini and tighten the cable guide. Connect the blue-black wire of the AirShot2 cable to pin 4 (VOUT-) of the CON2 connector and the brown-white wire to pin 3 (VOUT+) as described in the table below. Make sure that the screw contacts are tightened.
Page 14: Setting The Cleaning Interval
Finally, the service mode can be switched off again and the system is ready for operation. 4.3 Operation in combination with the W55 wiper If AirShot2 is used in conjunction with a W55 wiper, the wiper should first be fitted to the sensor (see the wiper operating instructions).
Page 15 The 10 m hose is then connected from the “IN” side of the pulse valve to the compressor. Now connect the AirShot2 to the controller via the control line. The AirShot2 can now be connected to the power supply using the power cable. The power LED should now light up.
Page 16: Calibration
AirShot2 // Calibration 5 Calibration 5.1 Calibration Not applicable for this device. D01-064en202503 AirShot2 Manual...
Page 17: Malfunction And Maintenance
AirShot2 // Malfunction and maintenance 6 Malfunction and maintenance 6.1 Maintenance Regularly check the air inlet of the compressor for blockages. If the air inlet is blocked, this can shorten the service life of the compressor and reduce the sensor cleaning performance.
Page 18: Technical Data
AirShot2 // Technical data 7 Technical data 7.1 Technical specifications Power supply Power supply 230 VAC, max. 200 W, 0.86 A 230 V version Power supply 110 VAC, max. 200 W, 1.8 A 110 V version Interfaces Connection for 6 mm hoses (4 mm inner diameter)
Page 19: Outer Dimensions
AirShot2 // Technical data 7.2 Outer dimensions D01-064en202503 AirShot2 Manual...
Page 20 AirShot2 // Technical data D01-064en202503 AirShot2 Manual...
Page 21: Accessories
AirShot2 // Accessories 8 Accessories Delivery accessories See chapter 2.2 Scope of delivery. Spare parts 02P000002 AirShot2 impulse box 02A000001 Compressed air hose blue, 10 m D01-064en202503 AirShot2 Manual...
Page 22: Warranty
AirShot2 // Warranty 9 Warranty The warranty period for our devices within the EU and the USA is 2 years from the date of invoice. Outside the EU it is 1 year. Excluded from the warranty are all normal consumables (depending on the product, e.g.
Page 23: Technical Support
AirShot2 // Technical support 10 Technical support If you have a problem with a TriOS sensor / a TriOS device, please contact TriOS technical support. We recommend sending in sensors every 2 years for maintenance and calibration. To do this, please request an RMA number from technical support.
Page 24: Contact Us
AirShot2 // Contact us 11 Contact us We are constantly working on improving our devices. Please visit our website for the latest news. If you have found a fault in one of our devices or programs or would like additional functions, please contact Technical Support: support@trios.de...
Page 25: Index
AirShot2 // Index 12 Index Certificates and approvals................................... 5 compressed air cleaning system................................. 6 Contact us........................................24 copyright........................................3 disposal........................................5 Electromagnetic waves....................................4 Health and safety instructions..................................3 Intended use........................................ 5 operating requirements....................................4 Product identification....................................7 Return shipment......................................17 Scope of delivery......................................
Page 26: Appendix
Bürgermeister-Brötje-Str. 25 D- 26180 Rastede Konformitätserklärung Declaration of Conformity Déclaration de Conformité Die TriOS GmbH bescheinigt die Konformität für das Produkt The TriOS GmbH herewith declares conformity of the product TriOS GmbH déclare la conformité du produit Bezeichnung AirShot2 Product name...
Page 27 TriOS Mess- und Datentechnik GmbH Bgm.-Brötje-Str. 25 · 26180 Rastede · Deutschland Tel +49 (0)4402 69670-0 Fax +49 (0)4402 69670-20 info@trios.de www.trios.de...
