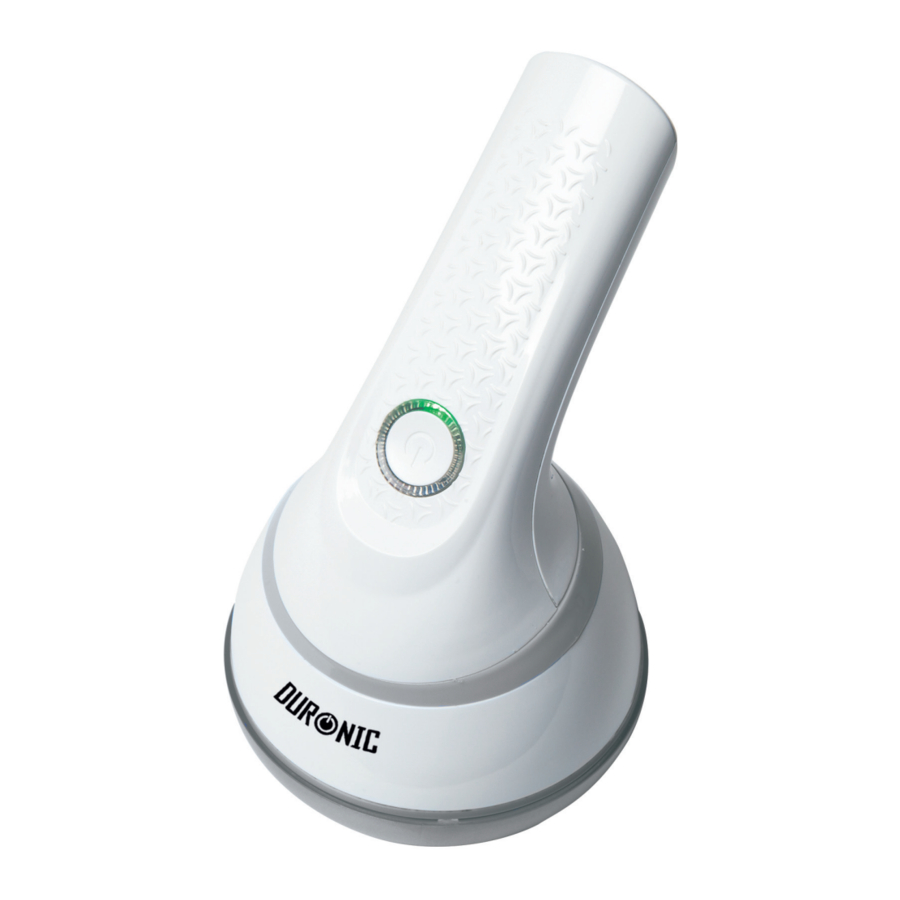

Duronic FS16USB Manual

Components

Product Specification

• Nominal Voltage: 5V, 3W
• Battery: 2 x Ni-MH 600mAh
• Charging time: approx. 8 hours
• Operating time at full charge: approx. 50 minutes

Charging

• Use the power cord to connect the appliance to a mains outlet
• The on/off switch lights up in red to indicate charging.
• It takes approximately 8 hours to fully charge the appliance.
• After charging, unplug the appliance from the mains outlet.

Tips
Do not shave pills, fuzz etc. when garments are being worn, because doing so poses an injury risk.

• Pay particular attention when shaving the following parts of garments:
  • around buttons and zippers
  • protruding parts
  • seams
  • stitches
  • items glued to cloth
  • delicate parts
• Before using the appliance, try it on an area of the garment that isbarely visible.
• Slide the appliance along the pattern on the garment.
• For stubborn pills, slide the appliance along the pattern verticallyand horizontally.
• For thin fabrics, fold two layers of garment and shave on a surfacesuch as an ironing board.

Instructions

Setting the handle
Put one hand on the handle, placing the other on the appliance head, then twist.

Operating
Remove the plastic cover.

Turn the appliance on by pressing the on/off switch. Afterwards, the on/off switch will light up in green.
Place the garment on a flat surface and smooth the creases. Slide the appliance over the surface of the material. After finishing, turn off the appliance by pressing the on/off switch

Cleaning

When the lint container is approx. 80% full, empty it and clean the container as well as the internal blades.

Cleaning the container

Detach the lint container cover

Remove the blades, to thoroughly clean the container.

Replace the blades, Cleaning the blades.

Replace the lint container cover and secure it on the appliance.

Cleaning the blades

Remove the metal blade cover

Clean the blades and the blade cover with the supplied brush

Carefully hold the base for attaching the blades and gently pull upwards

Carefully replace the blades on the base and push them in gently

Replace the metal blade cover, then attach the lint container cover

Safety Instructions

• The appliance may be operated by children older than 8 years of age and persons with limited physical, sensory or mental capabilities, or persons without experience or necessary knowledge of the product, provided they are supervised or instructed in the safe use of the device and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance may not be performed by children unless they are older than 8 years of age and under the supervision of an adult.
• Warning! Keep the appliance dry.
• Use only the supplied cord to charge the appliance.
• Please read this manual before using the product.
• Household use only. Do not use the product for any purpose other than its intended use.
• The appliance is for indoor use only. It is not intended for outdoor use.
• In order to prevent fire or electric shock when using electric appliances, particularly in the presence of children, follow basic safety rules.
• Do not clean the appliance using corrosive cleaning agents.
• Protect the appliance from the ingress of water or other liquids.
• The appliance is not a toy.
• Take care not to damage the lint holder when removing it.
• Do not bend or deform the perforated blade cover.
• Be very careful when removing the blades.
• Never use the appliance without the metal cover over the blades.
•
  The appliance blades are very sharp.
•
  Never use the appliance without the metal cover over the blades.
• Straighten the fabric surface before using the lint remover.
• Do not use the lint remover on garments that are being worn by anyone, including you. Doing so poses a risk of injury and damage to the lint remover.
