Vision3 Lighting PA17 Installation Instructions

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
(Failure to follow the warnings and instructions on this sheet could result in fire, injury, failure of product, and/or voiding of warranty.)
1. Do not touch luminaire while lamp is on. Turn off/unplug and allow
to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch hot lens, body, cap, or knuckle.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from your skin
may damage lamp.
6. Do not operate with damaged or missing parts.
7. Do not disassemble beyond cap removal to facilitate lamp and/or
Installation:
Notes:
• This fixture should not be mounted in such a way that it is buried or in
direct contact with the ground or soil.
• Integral Driver LED models come with push button manual selection of
4 different outputs. See 'Changing Integral Driver LED Output Level'
instructions on next page. Output will be set at factory to highest setting,
unless otherwise specified when ordered.
• Integral Driver LED models also allow for 100-277V 0-10V dimming
(at three highest push button light level settings only) and 120V phase
dimming (at highest push button light level setting only). Integral Driver
LED models should only be used with compatible dimming systems.
Contact Vision3 Lighting for further information.
• Integral Driver COB LED models allow for 120-277V 0-10V dimming
and 120V phase dimming. Contact Vision3 Lighting for further
information.
• COB LED's must be powered by a Vision3 Lighting approved LED driver
with the proper rating. Check specification sheet and fixture label for
proper ratings.
• All ratings subject to change without notice. See website or contact V3 for
most current info.
Caution! Fixture will be hot if lamp is on. Remove power and allow fixture to
cool before performing any adjustments or maintenance.
1. Unpack the PA17 Staff Light from its shipping container.
2. Check that there are no damaged or missing components. Contact Vision3
immediately if there are any damaged or missing components.
3. The PA17 Staff Light can be ordered with various mount options.
See mount option installation instructions for further installation
procedures. Note: If fixture is installed improperly, or in loose soil, it
is possible for it to topple over under its own weight (depending on
mount option and stem length). To prevent this, concrete anchoring of
some kind is recommended in all installations.
4. Connect the fixtures power leads to the power supply wires using
appropriate connectors (not supplied) per applicable codes. Note: Be
sure power/amperage being supplied matches requirements on Label.
a. Halogen/Integral Driver LED/Integral Driver COB LED: black,
white, green connect to hot (typically black), neutral (typically
white), ground (typically green or bare copper), respectively.
b. COB LED: red and black connect to positive(+) lead (typically
red) and negative(-) lead (typically black) from Vision3
Lighting approved LED driver, respectively.
5. For Integral Driver LED/Integral Driver COB LED models: Connect
the fixtures dimming leads to the dimming control wires using
appropriate connectors (not supplied) per applicable codes. The
0-10V(-) control wire (typically gray or pink) should attach to the
fixtures pink (possibly white) dimming lead, and the 0-10V(+) control
wire (typically purple) should attach to the fixtures purple (possibly
blue) dimming lead. If 0-10V dimming is not being used, each of
the fixtures dimming leads should be cut and capped separately
(connectors not supplied). Note: capping the dimming leads together
or allowing them to touch ground may prevent the LEDs from
©2011-2024 Vision3 Lighting™
Installation Instructions
P.O. Box 607, Fowler, CA 93625
LED Dual Staff Light
100-277V, 15W Max. ea., Dual Integral Driver COB LEDs
30W Max. ea., Dual COB LEDs (Remote Drivers required)
accessory installation or replacement.
8. Remove any debris accumulated in the cap periodically.
9. Do not install within 10 feet of a pool, spa, or fountain.
10. This is a line voltage fixture, use properly rated cable. Consult a
qualified electrician to ensure correct branch circuit conductor.
11. Have installed in accordance with all applicable installation codes
and standards by a person familiar with the construction, operation,
and hazards involved.
operating normally. Make sure they are capped separately if not being
used.
Fixture Head Aiming:
1. Loosen the Vertical Adjustment Screws using a 5/32" hex tool – do not
remove screws!
2. Grab fixture Bodies and push/pull to break grip of tapered knuckle lock.
Be careful not to exert force on the stem.
3. Slightly tighten Vertical Adjustment Screws, using the 5/32" hex tool, so
that heads hold position when released, but still move when adjusted.
4. Slightly loosen the Horizontal Adjustment Screws using the 5/32" hex
tool - do not remove screws!
5. Slightly tighten the Horizontal Adjustment Screws so that the heads can
be rotated, but still hold position.
6. Adjust the heads to the desired angle. Do not force them past the natural
stops built into the knuckle. Note: Rotate heads fully in opposite direction
if a stop is hit before reaching the desired position.
7. Tighten the adjustment screws using the 5/32" hex tool until the knuckles
are locked and the heads no longer move. Do not over tighten! Tapered
knuckle locks require very little tightening to ensure heads are locked in
position.
8. Adjust caps so that drain holes, if any, are oriented at the lowest point to
allow drainage.
PAR20 Halogen Lamp Maintenance (for certain models):
1. Remove power from fixture and let cool before touching. Caution!
Luminaire may still be hot!
2. Loosen the Cap Set Screw using a 3/32" hex tool – do not remove screw!

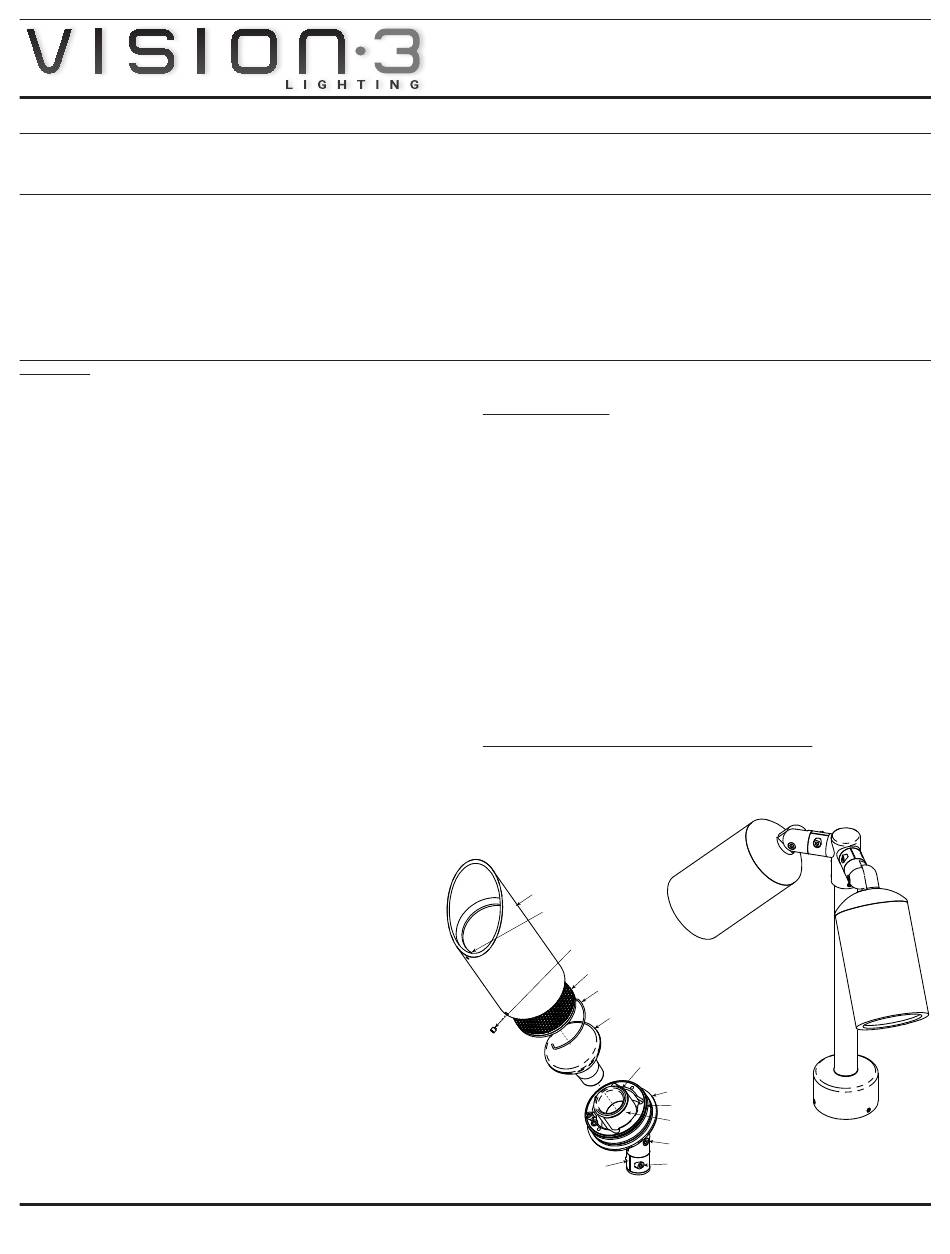

Cap
(C4 Option Shown)
Drain Hole
Cap Set Screw
Accessory Lenses
Accessory Clip
PAR20 Halogen Lamp
Knuckle
(559) 834-5749
- Page 1 -
MODEL PA17
Socket
Body
O-ring
Label
Vertical Adjustment Screw
Horizontal Adjustment Screw
(559) 834-4779 fax www.vision3lighting.com
Shown with MO1
Mount Cap option
revision 11/5/24
