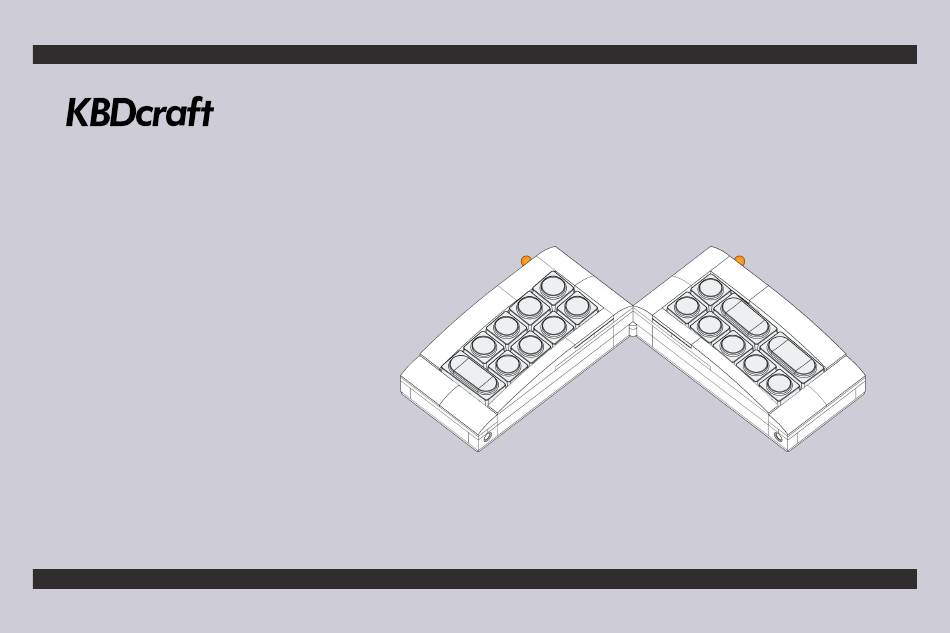

- Page 1 Instruction Manual V1.0 Lilin 20% ergo-split multipad...
- Page 2 Lilith and possesses the Fruit of Knowledge, contrasted with Adam’s children, who possess the Fruit of Life. KBDcraft 01018 Kit Lilin Lilin is created as two linked twin modules of equal size yet asymmetrical, which exchange data via an extra wire.
- Page 3 Stabi Installation Stabi Put the stabilizers in. JWK mini Locate the right side of the plate (R). Push it down. klick!
- Page 4 Core plate (L) Assembly dummy-1 plate (R) type-3 Remove the padding blocks from the foams. Align the Plates, Poron foams, and PCBs to create the Core sandwiches.
- Page 5 Switch Core completion Ensure the wires are straight down each time you push in the switch. (optional) Insert the cables and verify that all switches function correctly. *Switch wires may get bent during transportation, but they can be easily straightened by hand.
- Page 6 Case Build Attach the hinge bricks on both base plates .
- Page 7 Pre-install the PCB connecting wire on the base plates. 1x10 1x12 wire...
- Page 8 1x12...
- Page 9 Install the foam gaskets first. Place the plates around them. foam foam...
- Page 10 Connect 2 PCBs with the pre-installed wire. dummy-1 type-3 2. Attach the 90° cable and the 1x1 brick. 3. Insert the core.
- Page 13 Install the locking system. Put on the rubber feet.
- Page 14 Keycap Pick keycaps for your needs. Keycap DSS...
- Page 15 Open a browser. Visit http://get.vial.today layer (1) VIAL can be used on the website or installed on your PC. Lilin is part of a large map called Core90. The map will be loaded automatically when you click "connect". Matrix tester in VIAL is no longer available. Please test the key function with a third-party application.
- Page 16 More build instructions at #2 & #18 https://kbdcraft.store Modular keyboards Attach-build Hinge-build...
