Summary of Contents for CRC IRM-PM7

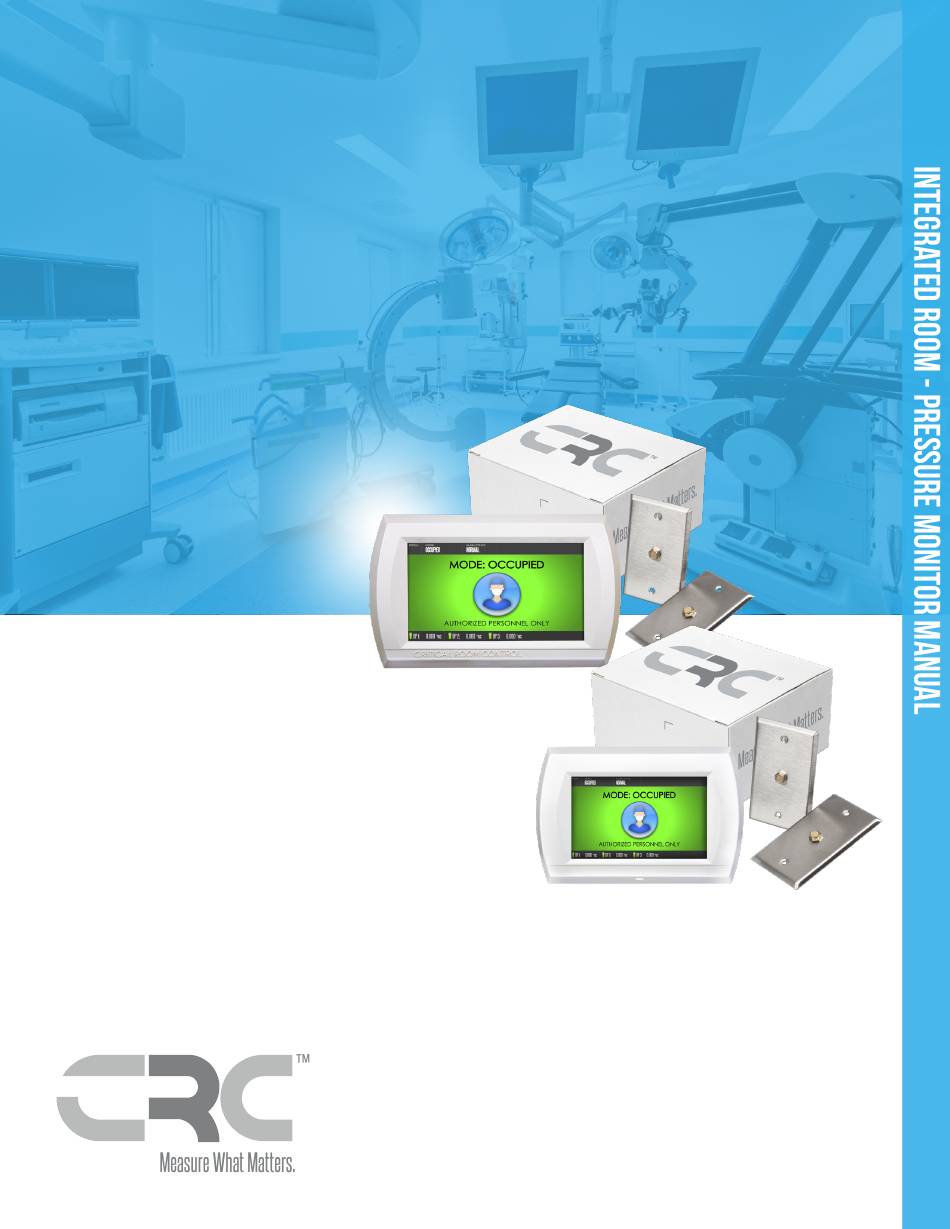

- Page 1 IRM-PM7 IRM-PM5...
-
Page 2: Table Of Contents
INTEGRATED ROOM - PRESSURE MONITOR MAN UA L TABLE OF CONTENTS PAGE I m p or ta nt n o te s The “Important Notes” header is used throughout this PRODUCT OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 manual to call out important considerations that the reader INTEGRATED ROOM I/O BOARD . -
Page 3: Product Overview
The intuitive touchscreen interface ensures straightforward operation, offering real-time space condition monitoring while minimizing user setup and commissioning efforts. Available with the option of a 7” display (IRM-PM7) or a 5” display (IRM-PM5). I RM - P M 7... -
Page 4: Integrated Room I/O Board
INTEGRATED ROOM-MONITOR ENVIRONMENT MAN UA L INTEGRATED ROOM I/O BOARD s p ec i f i cati o ns Dimensions 10.25 x 4 x 1.25 in 24 VAC + 10 %, 50/60 Hz, Input Power maximum 30 VA, Class 2 5 @ 24 VDC (200 mA total max.) Onboard Power 3 @ 5 VDC (100 mA total max.) -
Page 5: Integrated Room 7 Inch Display
INTEGRATED ROOM-MONITOR ENVIRONMENT M ANUA L INTEGRATED ROOM 7 INCH DISPLAY S p ec i f i cati o n s Dimensions 9 x 5.375 x 1.5 in. Supplied by I/O board via 9” Input Power Cat6 cable Up to 200 ft shielded Cat6 cable per display Cable Length Up to 500 ft shielded Cat6... -
Page 6: Pressure Monitor Overview
INTEGRATED ROOM - PRESSURE MONITOR MAN UA L PRESSURE MONITOR OVERVIEW PM H om e Scr e en ROOM: Displays room name MODE: Displays current mode ALARM STATUS: Displays current alarm status MODE VISUAL: Displays mode name, icon and background color POINT BANNER: Optimized to display 4 points (10 total allowed, view via scrolling) Click ROOM>>ADMIN>>SETUP to customize display... -
Page 7: Installation
Reference the wiring diagram for termination details. Primary space tubing to the HI port on the differential pressure sensor. LO Port to Reference Space ¼” Pneumatic Tubing CRC SENSOR MODEL #: DPS RANGE: OUTPUT: 0.5-4.5 VDC BLACK WHITE HI Port to Primary Space... -
Page 8: Setup Overview Screen
INTEGRATED ROOM - PRESSURE MONITOR MAN UA L SETUP OVERVIEW SCREEN G en er a l The SETUP OVERVIEW is the main admin screen. From this screen, the administrator can quickly see how the display is currently configured. Users can then access Modes, Points, Analog Outputs, Relays, and other setup screens. -
Page 9: Point Setup
INTEGRATED ROOM - PRESSURE MONITOR M ANUA L POINT SETUP Poi nt Set up (G e ne ral ) Point data can be setup and configured via the General screen. The Point Setup Screen is used to configure how point data is displayed for the room and this specific display. Va lue P oi nt S e tu p (G en er al ) Li s t Po i nt S et u p ( G e ne r al ) Poi nt Set up (G e ne ral ) Par a m et e r s... - Page 10 INTEGRATED ROOM - PRESSURE MONITOR MAN UA L POINT SETUP Poi nt Se t up ( Al arm s) The Point Setup (Alarms) Screen is used to configure how point data is alarmed for the room and this specific display. A point’s alarm status is continuously transmitted to all connected displays and can be read by BACnet ®...
-
Page 11: Analog Input Setup
INTEGRATED ROOM - PRESSURE MONITOR M ANUA L ANALOG INPUT SETUP Ana l og Inp u t S e t up T ype s The Analog Input screen allows the user to configure the Analog Inputs. Analog inputs can be used to change the current or setpoint values within the system. -
Page 12: Analog Output Setup
INTEGRATED ROOM - PRESSURE MONITOR MAN UA L ANALOG OUTPUT SETUP An al og O u tp u t S e t u p T y pe s Mirror AI or AO: Configures the AO to mirror another AI or AO. Output Internal Value: Configures the AO to adjust its voltage signal to represent the current value or setpoint of a specific Point. - Page 13 INTEGRATED ROOM - PRESSURE MONITOR M ANUA L ANALOG OUTPUT SETUP Ana l og Ou tp u t ( Co n t r ol : S im p l e P ID) Used to control a single variable to desired setpoint. ANA L OG OU TP U T ( Mi rro r A I) A N A L O G OU TP U T ( o u t p u t I n t er n al Va lu e ) Parameter...
-
Page 14: Mode Setup
INTEGRATED ROOM - PRESSURE MONITOR MAN UA L MODE SETUP Mode S et u p General: Mode Setup screen allows the user to configure and customize up to 5 modes. Modes can be used to indicate room’s usage / occupancy and configured with different display and alarm settings. Change: The mode change screen allows the user to setup analog input or digital inputs to trigger a mode change. -
Page 15: Relay Setup
INTEGRATED ROOM - PRESSURE MONITOR M ANUA L RELAY SETUP Relay Set up T yp e s Unused: Not Used Mirror DI: Configures the relay to mirror the open/close state of a DI. Invert DI: Configures the relay to invert the open/close state of a DI. CV Relative to SP: Configures the relay to open/close based on a Point’s current value compared to setpoint. -
Page 16: Misc. Setup (General)
INTEGRATED ROOM - PRESSURE MONITOR MAN UA L MISC. SETUP (GENERAL) Mis c. Se tu p General: Contains general settings and BACnet configuration parameters. Passwords: Allows for configuration to secure the display with a password. Contact: Provides contact information for support. M i s c S et u p MIS C. -
Page 17: Misc. (Passwords)
INTEGRATED ROOM - PRESSURE MONITOR M ANUA L MISC. (PASSWORDS) M is c. (Pa ss w or d s ) Mis c. ( Pa s s wo rd s ) Parameter Unit Selections Description Enable / Disable Selecting ON will require user password to access the specific screen. ON/OFF Password Protection Selecting OFF will allow any user to access the specific screen. -
Page 18: Misc. (Contact)
INTEGRATED ROOM - PRESSURE MONITOR MAN UA L MISC. (CONTACT) m is c. (c o n tac t ) mis c. (co ntact ) Parameter Unit Selections Description Vendor Name Alphanumeric Selection Enter contact name for local support. Vendor Phone Numeric Selection Enter contact phone for local support. -
Page 19: Tools (Load/Save)
INTEGRATED ROOM - PRESSURE MONITOR M ANUA L TOOLS (LOAD/SAVE) Loa d / SAV E Load/Save: This screen allows the user to archive/save, restore, or clone system data locally or to a micro SD card located on the back of the display. T oo l s (L oa d/S av e) Too ls ( Load / S ave ) Data par a me t er s fo r L oad / S ave... -
Page 20: Diagnostics
INTEGRATED ROOM - PRESSURE MONITOR MAN UA L DIAGNOSTICS D iagnos t i cs Analog I/O: The Analog I/O Diagnostic screen helps users troubleshoot analog inputs and outputs on the IRM. Each input and output has a slider showing its current voltage and range. If the voltage is outside this range, the text and outline turn orange. -
Page 21: Modes & Points
INTEGRATED ROOM - PRESSURE MONITOR M ANUA L MODES & POINTS Type Parameter Default Description Notes Modes OCCUPIED Modes UNOCCUPIED Modes NIGHT SETBACK Modes VACANT Modes EMERGENCY PURGE Points DP 1 Points DP 2 Points DP 3 Points ROOM TEMP Points ROOM HUMIDITY =Mirror of current mode... -
Page 22: Irm Overview
INTEGRATED ROOM - PRESSURE MONITOR MAN UA L IRM OVERVIEW Overv i e w COV S u bs cr i pt i on s The Integrated Room BACnet® stack is fully tested and Change of value subscriptions are available on the certified by BACnet®... -
Page 23: Bacnet ® Points
® Below are the default key BACnet® points which support the Integrated Room Monitor Environment products. Additional BACnet® points may be visible on the IRM-PM7 and IRM-PM5. Please refer to Integrated Room Complete BACnet® points list for complete BACnet® information. - Page 24 criticalroom.com Critical Room Control 9275 North 49th Street Brown Deer, WI 53223 414.324.8978 Sales@criticalroom.com ©2024 Critical Room Control | All Rights Reserved | IRM_PM_SERIES_01_D0104_Rev1.0...
