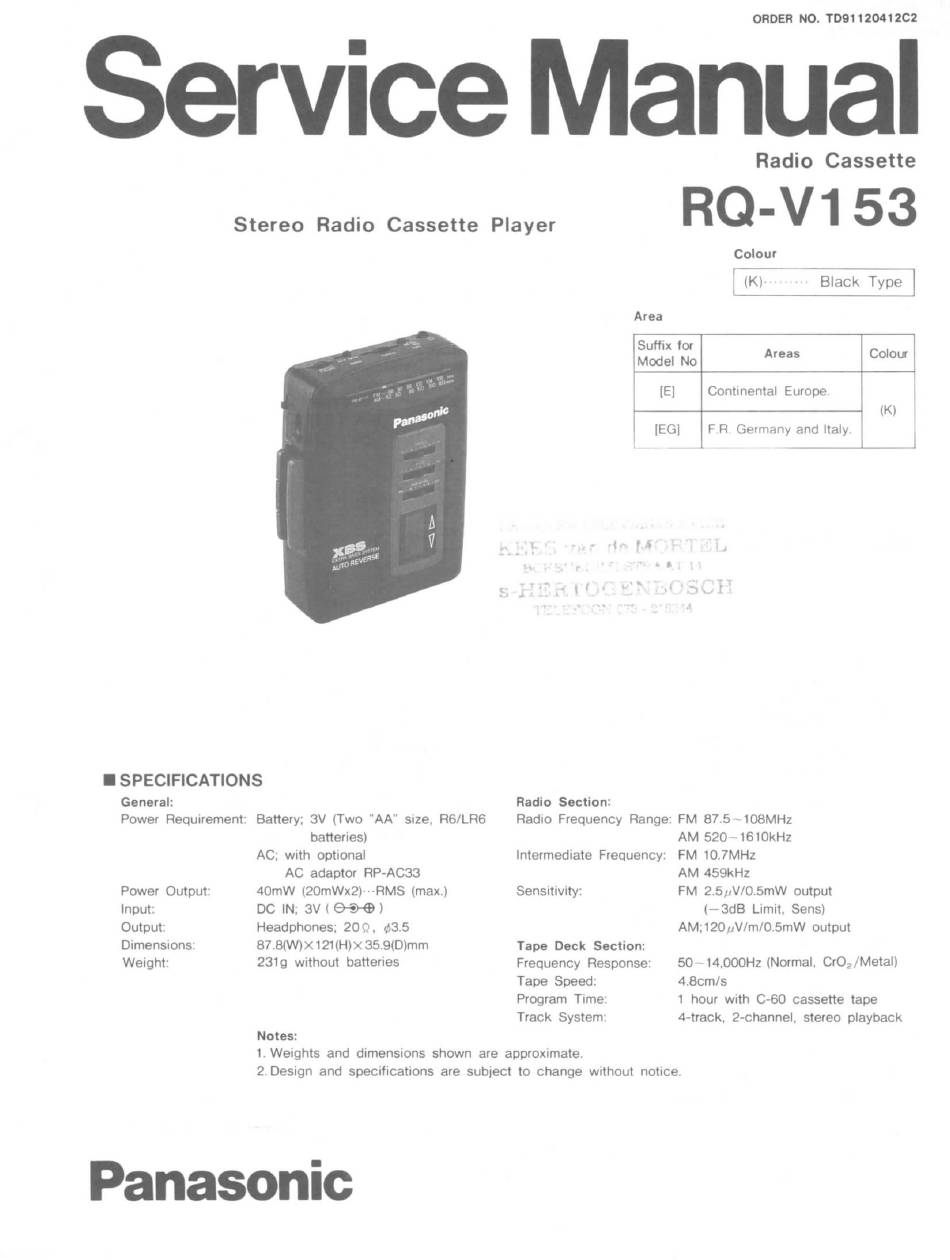

Panasonic RQ-V153 Service Manual

ORDER NO. TD91120412C2
Service Manual
s t e r e o Radio C a s s e t t e Player
Radio C a s s e t t e
RQ-V153
Colour
(K) Black Type
Area
Suffix for
Model No
Areas
Colour
[El
Continental Europe.
(K)
[EG]
F R . Germany and Italy.
(K)
s-HI?ftiOGENBOSCH
I SPECIFICATIONS
General:
Power Requirement: Battery; 3V (Two "AA" size, R6/LR6
batteries)
AC; with optional
AC adaptor RP-AC33
Power Output: 40mW ( 2 0 m W x 2 ) - R M S (max.)
Input: DC IN; 3V (
zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA
O ^ ) - ® )
Output: Headphones; 20 Q, 03.5
Dimensions: 87.8(W) X121 (H) X 35.9(D)mm
Weight: 231 g without batteries
Radio Section:
Radio Frequency Range: FM 87.5-108MHz
AM 520~1610kHz
Intermediate Frequency: FM 10.7MHz
AM 459kHz
Sensitivity:
Tape Deck Section:
Frequency Response:
Tape Speed:
Program Time:
Track System:
FM 2.5/iV/0.5mW output
( - 3 d B Limit, Sens)
AM;120;uV/m/0.5mW output
50--14,000Hz (Normal, CrOj/Metal)
4.8cm/s
1 hour with C-60 cassette tape
4-track, 2-channel, stereo playback
Notes:
1. Weights and dimensions shown are approximate.
2. Design and specifications are subject to change without notice.
Panasonic
