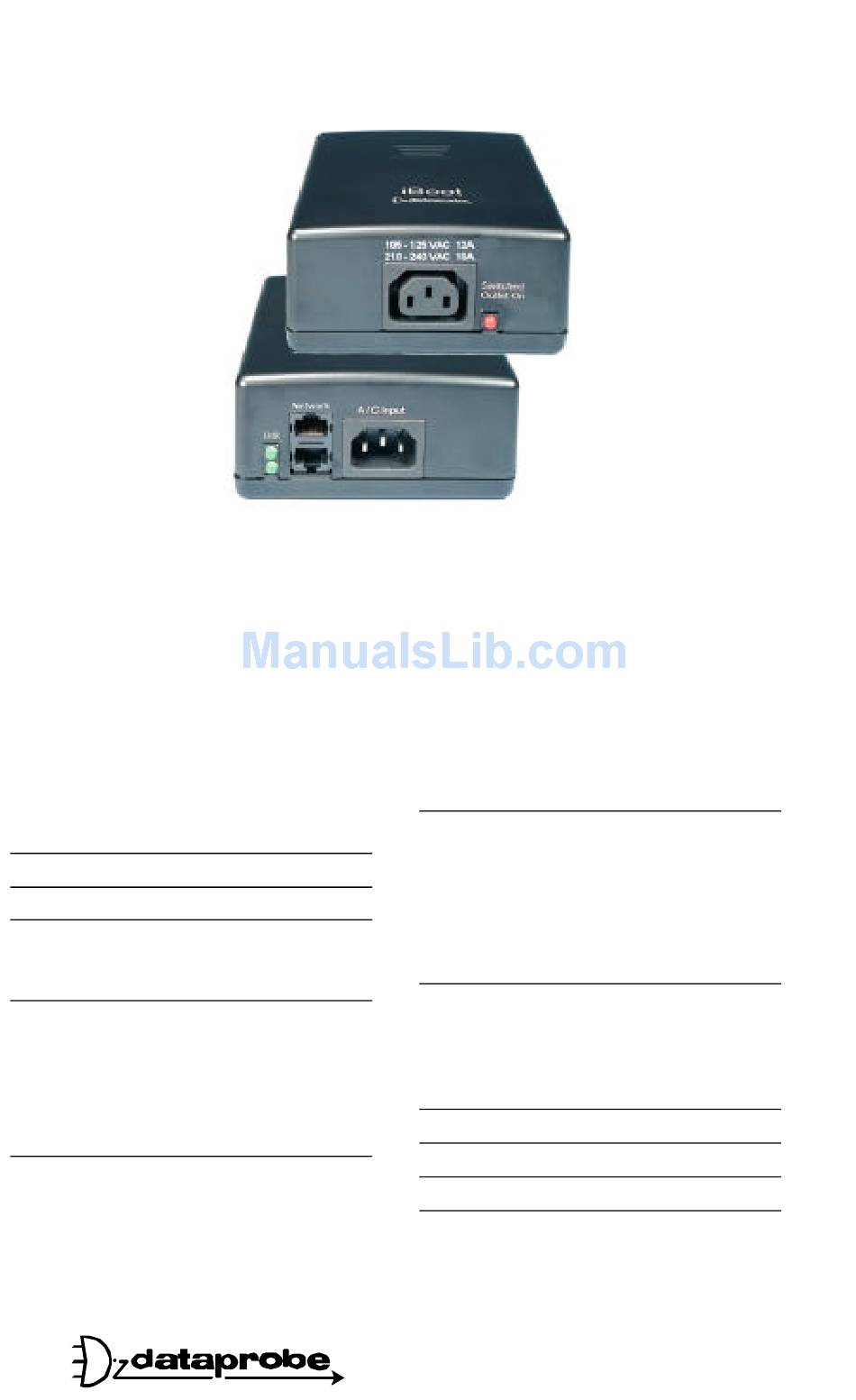

Page 1: Table Of Contents
Web Enabled Remote Power Control Table of Contents iBoot Setup Device Settings Important Safety Information TCP/IP Settings General Description Auto-Ping Heartbeat Hardware Installation Passwords Ethernet Connections Forgotten Password A/C Power Connections Advanced Operation iBoot Configuration Auto Ping Setting IP Address...
Page 2: Important Safety Information
Ver 2.0 and up iBoot Page 2 IMPORTANT SAFETY INSTRUCTIONS When using this product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read and understand all instructions.
Page 3: General Description
General Description The iBoot is a network attached, IP addressed, Web Controlled AC power switch. Anyone with a web browser can access iBoot to perform power On, Off or Power Cycle (Reboot or Power Burst). iBoot is password protected for security.
Page 4 Heartbeat Monitor: Like the Auto-Ping in reverse, this feature uses a periodic message sent to the iBoot from a device. When that message is not received, the iBoot will perform the programmed power control function.
Page 5: Hardware Installation
10/100 and Uplink/Downlink. A Link LED next to each indicates when the connection to the network is properly established. The built-in hub allows one cable from the wiring closet to be used for both iBoot and the device it is powering (or any other device). This greatly simplifies installation. Use of both network jacks is optional.
Page 6: Ac Power Connections
Connect the device to be powered ON and OFF to the IEC receptacle marked Switched Outlet. A short IEC 320 to North American (NEMA 5-15) power cord is included for connecting the iBoot outlet to the device to be power controlled.
Page 7 Ver 2.0 and up iBoot Page 7 Connect to Power Source Use Included Cord for North America. For other A/C Input Downlink locations, use locally approved power cord. Uplink Connect the supplied power cord to the connector labeled AC Input, and the other end to your AC source.
Page 8: Iboot Configuration
IP address 192.168.1.254. and ready to accept a new IP address from a DHCP Server. If you network has a DHCP server, it will automatically assign an IP address to iBoot the first time it is connected and powered up.
Page 9 All iBoot tools are available at: www.dataprobe.com/power/iboottools.html To use ibootrst.exe, the computer running the program must be on the same subnet and network segment as the iBoot is to be programmed to. Same subnet can be directly connected or connected through Ethernet hubs. (NOT routers or switches) To use ibootrst.exe...
Page 10: Using Arp / Ping
The ARP technique uses a PC running a command line (DOS Window) to set the IP Address. To set the IP address using ARP, connect the iBoot to your local network and apply power. The IP address to be assigned to iBoot must be use the same network segment as the computer assigning the address.
Page 11: Web Browser Operation
A Username is not required. When the proper password is received the Control and Status Page is displayed. Control and Status Page Once the password is entered, the following page is displayed. (Only one person can be connected to the iBoot at a time.) Programmable Navigation: Device Name...
Page 12 When there is no activity for 2 minutes, the user is logged out and the password will need to be entered again for access. This is to prevent accidental lockout by leaving the user...
Page 13: Iboot Setup
DHCP HTTP Port: This setting is used to allow access to iBoot on a port other than the Web standard Port 80. If the port is changed, you will need to identify the port...
Page 14 Ver 2.0 and up iBoot Page 14 number when you enter iBoot's IP address into your browser: if the new port is 9100 then use address http://192.168.1.254:9100 to access iBoot. After changing the port, a reboot is necessary. Consult your Network Administrator for available port assignments.
Page 15 Page 15 OOPS - I forgot my Password Well, we told you to remember it, but we understand. You can reset iBoot to its factory default conditions. Dataprobe provides an iBoot Reset Program for Windows™. You will need to have physical access to the iBoot as well as network access.
Page 16: Auto-Ping
Use Auto-Ping Locally: Put iBoot next to the device to be monitored and reboot it automatically when it no longer responds. Use Auto-Ping Remotely: Put iBoot at a central facility to monitor a remote system and power up an alert when the remote device no longer responds.
Page 17: Auto Ping
Power Cycle Power Cycle Once Power On – Latch: Upon loss of ping response, iBoot will power on and remain so until changed via the web, ibootctl.exe or direct messaging. Power On – Follow: Upon loss of ping response, iBoot will power on. When the ping response returns, iBoot will power off.
Page 18: Heartbeat Monitor
Like Auto-Ping, the Heartbeat monitor allows iBoot to monitor one or more devices and take action when these devices fail. With the Heartbeat monitor enabled, iBoot will expect a network message on a regular interval. When it misses a user defined number of intervals, it will perform its programmed action.
Page 19 Power Cycle Power Cycle Once Power On – Latch: Upon loss of heartbeat, iBoot will power on and remain so until changed via the web, ibootctl.exe or direct messaging. Power On – Follow: Upon loss of heartbeat, iBoot will power on. When the heartbeat returns, iBoot will power off.
Page 20 Using the Heartbeat Program Download the Heartbeat program at www.dataprobe.com/power/iboottools.html This program will generate heartbeats to one iBoot at regular intervals. It will also monitor a response back from iBoot to insure proper communication. Run the program. To begin use, first click Setup.
Page 21: Control Programs
WhatsUp Gold™, Servers Alive™ or any program that provides for an external program to be run upon loss of a server. The iBoot Control Center program allows control of multiple iBoot units. This program provides the ideal means of monitoring and managing a large number of iBoots distributed throughout your organization.
Page 22: Specifications
Ver 2.0 and up iBoot Page 22 Specifications Model iBoot A/C Power Control Module Ver 2.x SKU: 1410010 Physical Height 2.25 in. Width 4.50 in. Depth 6.00 in. Weight 1.25 lb. Input: 3 Prong, Male, IEC 320 input connector. Input Cord Spec...16AWGX3C 10A 250 UL/CSA/VDE Rated (1.25mm...
Page 23 Ver 2.0 and up iBoot Page 23 TECHNICAL SUPPORT, RETURNS and WARRANTY Dataprobe Technical Support is available 8:30AM to 5:30PM ET to assist you in the installation and operation of this product. To obtain Technical Support call our Tech Support Hotline at 201- 967-8788, or Email us at tech@dataprobe.com.
Page 24: More Power Control Solutions
More Power Control Solutions 8 Outlet Remote Control Power Strips Rack Mounted 8 outlet power strips can be controlled by Web / Telnet / Modem / Serial or DTMF dialing tones. Visit www.dataprobe.com/power/8outlets.html Phone Controlled Power Switch PowerPAL offers remote control of a single A/C outlet using any tone dial telephone.
