Display User's Manual

MDGP32XAMAC-AXX

32" High Brightness Color LCD Display

Model Name: RTOP3213AMC(MDGP32XAMAC-AXX)

32" RTOP/HB/ALS 4K2K monitor, plastic housing RAL9003,

AR glass, 24V

Table of Contents

Need help?

Do you have a question about the RTOP3213AMC and is the answer not in the manual?

Questions and answers

Summary of Contents for MEDICAL ILLUMINATION RTOP3213AMC

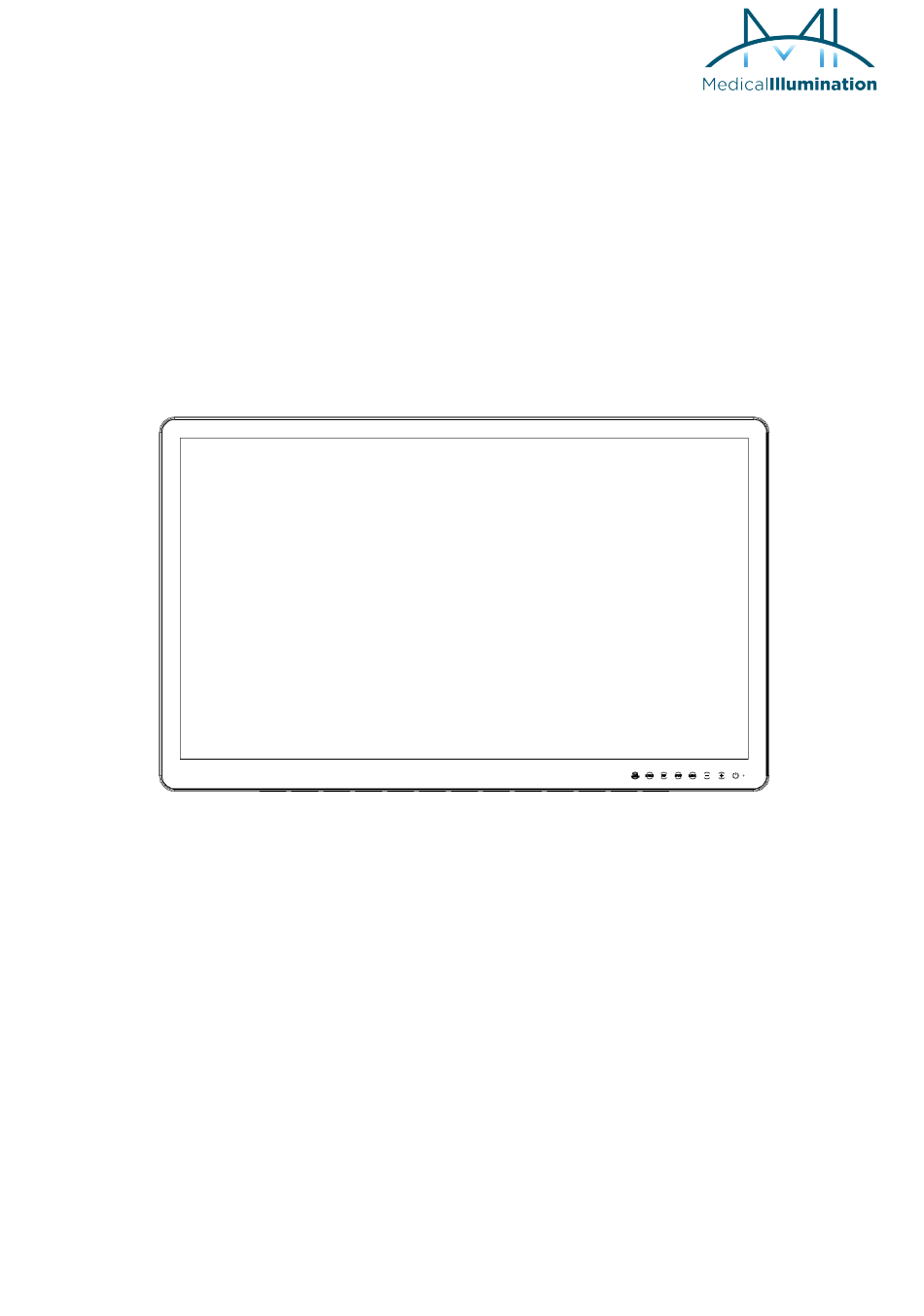

Page 1 Display User's Manual MDGP32XAMAC-AXX 32” High Brightness Color LCD Display Model Name: RTOP3213AMC(MDGP32XAMAC-AXX) 32" RTOP/HB/ALS 4K2K monitor, plastic housing RAL9003, AR glass, 24V...
Page 2: Table Of Contents
Revision History The revision letter changes with related comments each time the document is updated. Revision Revision Release date Comment Initial 2022/9/6 Contents 1. Information ..............3 2. Equipment Symbols ............. 10 3. Cleaning Instructions ........... 12 4. Disposal of the Unit ............12 5.
Page 3: Information
1. Information Safety Precautions CAUTION Symbol Description Caution! -This symbol alerts you to important operating considerations or a potential operating condition that could damage equipment. Refer to user's manual or operation's manual for precautionary instructions. Consignes de sécurité ATTENTION Description des symboles Attention ! - Ce symbole vous avertit sur les considérations d'utilisation importantes ou d'une condition de fonctionnement potentiellement dangereuse pour l'équipement.
Page 4 CE Declaration of Conformity We declare under our own responsibility that the product satisfies all the technical relations application to the product within the scope of council: Medical Device Regulation (EU) 2017/745 with applicable standards listed below. EN60601-1 EN60601-1-2 FCC Information FCC (U.
Page 5: General Recommendations
General recommendations  Make sure to carefully read the Operating Manual prior to using the monitor in order to properly use the monitor.  Note that, excluding those cases where a responsibility for legal compensation is recognized, the manufacturer shall bear absolutely no responsibility for damage to this product by a customer or a third party that results from the ignoring of contents entered in this Operating Manual and mistaken use.
Page 6: Recommandations Générales
Recommandations générales  Lisez les consignes de sécurité et de fonctionnement avant d'utiliser l'appareil.  Notez que, sauf dans les cas où la responsabilité de la compensation légale est reconnue, le fabricant n'endossera absolument aucune responsabilité pour les dommages occasionnés à ce produit par un client ou un tiers, résultant de l'ignorance du contenu de ce manuel d'utilisation et d'une erreur d'utilisation.
Page 7: General Warnings
General warnings  All devices and complete setup must be tested and validated before taking into operation.  The installer needs to foresee a backup system in case the video falls away.  This equipment shall not be serviced or maintained while in use with the patient. ...
Page 8: Installation
Installation  Place the equipment on a flat, solid and stable surface. Do not used on the floor. If you use an unstable cart or stand, the equipment may fall, causing serious injury to a child and adult, and serious damage to the equipment. ...
Page 9: Technical Data
Users to be considered  Maintenance/repair personnel – only by manufacturer trained and authorized technician.  Operating personnel – not in consideration for the graphical images at this stage as there are none to consider, however user interfaces such as OSD and control buttons shall be considered.
Page 10: Equipment Symbols
2. Equipment Symbols Electrical and Electronic Equipment Symbols In addition to the equipment symbols described in your user's manual, the following symbols may be appeared on the monitor. Alternating current. Equipotentiality. Connect device to a potential equalization conductor. European Union Declaration of Conformity. UK Conformity Assessed Marking.
Page 11 Indicates front. Consult the operating instructions Standby or power indicator. This symbol indicates that the waste of electrical and electronic equipment must not be disposed as unsorted municipal waste and must be collected separately. Please contact an authorized representative of the manufacturer for information concerning the decommissioning of your equipment Manufacturer &...
Page 12: Cleaning Instructions
3. Cleaning Instructions  Be sure to unplug the power cord from the mains when cleaning your LCD monitor.  Take care not to scratch the front surface with any hard or abrasive material.  Dust, finger marks, grease etc. can be removed with a soft damp cloth (a small amount of mild detergent can be used on the damp cloth).
Page 13: Outline
6. Outline Front view Overview 8-key touch keypad is located on the front of the display. 1Rear view Overview...
Page 14 Connector view (RTOP3213AMC) Ground Potential Equalization Bolt. DC in DC 24V in. D-Sub 9pin RS232 (D-Sub), for RS232 commands, for calibration mode. DP out DP out, Clone for DP and HDMI; SST and MST for DP only. DSUB 15 pin connector, Use VGA cable to connect the VGA connector of the monitor and the VGA output connector from source device.
Page 15 IO connector pin defines D-Sub 9pin Female D-SUB 9 pin female connector Pin No. Signal Assignment Pin No. Signal Assignment RS232 (D-Sub 9 pin) calibration connector, for RS232 communication. D-Sub 9pin Female D-SUB 9 pin female connector Pin No. Signal Assignment Pin No.
Page 16 LAN in RJ45 12 pin Pin No. Signal Assignment Pin No. Signal Assignment Yellow LED- Yellow LED+ Green LED- Green LED+ Ethernet communication RJ45 1x1 Tab up Through Hole 10/100 Base-T LED: L-G; R-Y *Service for upgrade firmware via Lan for ethernet MCU and Scaler (under developing) VGA in D-SUB 15 pin male connector...
Page 17 Display port in x 2 Display port 20pin connector Pin No. Signal Assignment Pin No. Signal Assignment Lane 3 (negative) Lane 0 (positive) Lane 3 (positive) Lane 2 (negative) Aux Channel + Lane 2 (positive) CABLE DET Lane 1 (negative) Aux Channel - Hot Plug Detect Lane 1 (positive)
Page 18 HDMI in HDMI A type 19 pin connector Pin No. Signal Assignment Pin No. Signal Assignment Data2+ CABLE DET Data2 Shield Data2- Data1+ Data1 Shield DDC_CLK Data1- DDC_DATA Data0+ Data0 Shield Data0- Differential Signal Level Range: TMDS (Max=1560mVp-p / Min=150mVp-p) Input Impedance: 100 Ohms HDMI 2.0 compliant HDMI supports up to 600MHz...
Page 19 Differential Signal Level Range: TMDS (Max=1560mVp-p / Min=150mVp-p) Input Impedance: 100 Ohm HDMI 1.4 compliant HDMI supports up to 300MHz (Via DVI to HDMI adapter) Up to 3840*2160p@30HZ DVI out only loop out with DVI in BNC IN/OUT for 3G SDI (Option) BNC connector Pin No.
Page 20 BNC IN *4 and BNC OUT *1 for 12G SDI (Option) BNC connector Pin No. Signal Assignment SDI signal 12G SDI input/output (optional): Support SMPTE ST 2082-10 single link 12G and SMPTE ST 425-5 Quad Link 3G BNC in SDI input, 12 Gb/s, HD, SD SDI Receiver, with Integrated Adaptive Cable Equalizer complete with SMPTE video Processing.
Page 21: Operation
7. Operation Touch Type 8 key: The standard key is Touch disabled/Source/PIP/SWAP/MENU/DOWN/UP/POWER Press first time all LED will light but no action, it works with pressing second time. POWER Key with indicator LED Press this button turn the monitor on. When the monitor is on, press this button “HOLD UNTIL POWER OFF”...
Page 22 Source key Press this bottom is used to select which Input should be displayed on the monitor. Press ‘’SOURCE’’ until your desired Input selection is displayed. You can press this bottom to wake up the monitor and select source between all inputs. Touch Disabled Press this button to on/off touch screen function and Key lock (OSD key) when someone clear the screen surface.
Page 23 OSD Tree Charts of OSD Adjustment Functions The charts display the function tree and brief explanations of the functions and other adjustments have sub-menus under each tree. ● OSD display Main menu display Info/Exit Input Picture PIP/PBP Color System Info/Exit Exit ......
Page 24 DP1 ......Select Display Port 1 digital input for right display DP2 ......Select Display Port 2 digital input for right display HDMI ...... Select HDMI digital input for right display 12G/HDMI ....Select 12G SDI digital input by optional 12G SDI board or select HDMI digital input by optional HDMI board for right display DVI ......
Page 25 3G/DVI ....Select 3G SDI digital input by optional 3G SDI board or select DVI digital input by optional DVI board for main display Auto Select ..... Select the auto search next valid sync when main source no signal and the pip source is not in “Auto Select” PIP ......
Page 26 HDMI1 ....Select HDMI1 digital input for top-right display 12G/HDMI ....Select 12G SDI digital input by optional 12G SDI board or select HDMI digital input by optional HDMI board for top-right display DVI ......Select DVI digital input for top-right display 3G/DVI ....
Page 27 Display Function (1P) Disp Rotate ..... Select the display can rotate by four type when display mode set 1P 0 ……………… ..Set screen no rotate 90…………………Set screen rotate to 90 degree 180………………..Set screen rotate to 180 degree 270……………..…Set screen rotate to 270 degree LR Mirror…………...
Page 28 Main ....... Set the display control function for main display Sub ......Set the display control function for sub display Full ......Set the display control function for all display Select Region (4P) 1P In ....... Set the display control function only for top-left display 1P Out ....
Page 29 ALS always on, user can adjust below functions by Calibration software, like brightness/gamma/color temperature/contrast/RGB gain……..etc. Back ......Return to main menu H.Position ....Adjust the H position for OSD by the range from 0 to 100 V.Position ....Adjust the V position for OSD by the range from 0 to 100 Transparency .....
Page 30 panel will set display screen size same as panel size DP Option ....Set the display port input version 1.1 ......Set the display port 1 input version to 1.1 1.2 ......Set the display port 1 input version to 1.2 1.1 ......
Page 31: Display Timing Modes
8. Display Timing Modes Pixel Input Input Input Input Input Input Pixel Frequency Standard Frequency Signal Signal Signal Signal Signal Signal Format CLK(MHZ) H(Hz) V(Hz) Type HDMI 3G SDI 12G SDI 35.2K VESA 37.9K VESA 800*600 48.1K VESA 49.5 46.9K VESA 48.4K VESA...
Page 32: Specifications
9. Specifications Product name: 32"Color LCD Display (RTOP3213AMC) Screen technology: TFT active matrix type liquid crystal panel Active screen size: (diagonal) 32” Active screen size: 711.48 (L) x 401.52 (W) mm Aspect ratio (H:V) : 16:9 Resolution: 3840 x 2160 Pixel pitch: 0.1845 mm x 0.1845 mm...
Page 33 External Dimensions...
Page 34: Emc Table
10. EMC Table Electromagnetic emissions The RTOP3213AMC series is intended for use in the electromagnetic environment specified below. The customer or the user of the RTOP3213AMC series should assure that it is used in such an environment. Emission test Compliance...
Page 35 The RTOP3213AMC series has been tested at the following compliance levels according to the testing requirements for professional healthcare facility environments defined in IEC / EN60601-1-2. Customers and users of the RTOP3213AMC series must ensure that the RTOP3213AMC series is used in the following environments:...
Page 36 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the RTOP3213AMC series is used exceeds the applicable RF compliance level above, the RTOP3213AMC series should be observed to verify normal operation. If...
Page 37 Carrier waves are modulated using a 50 % duty cycle square wave signal. The RTOP3213AMC series is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. For other portable and mobile RF communication equipments (transmitters), minimum distance between portable and mobile RF communications equipment (transmitters) and the RTOP3213AMC series as recommended below, according to the maximum output power of the communications equipment.
Page 38: Contact Information
11. Contact Information North America Legal Information and Responsibility Medical Illumination Intl. Internet: www.medillum.com 19749 Dearborn Street Chatsworth, CA 91311 United States of America Technical Support / Service Contact Medical Illumination Intl. www.medillum.com Tel: +1 (800)-831-1222 ext. 104 19749 Dearborn Street Toll-Free: +1 (818)-838-3025 ext.
