Summary of Contents for Roll Woody

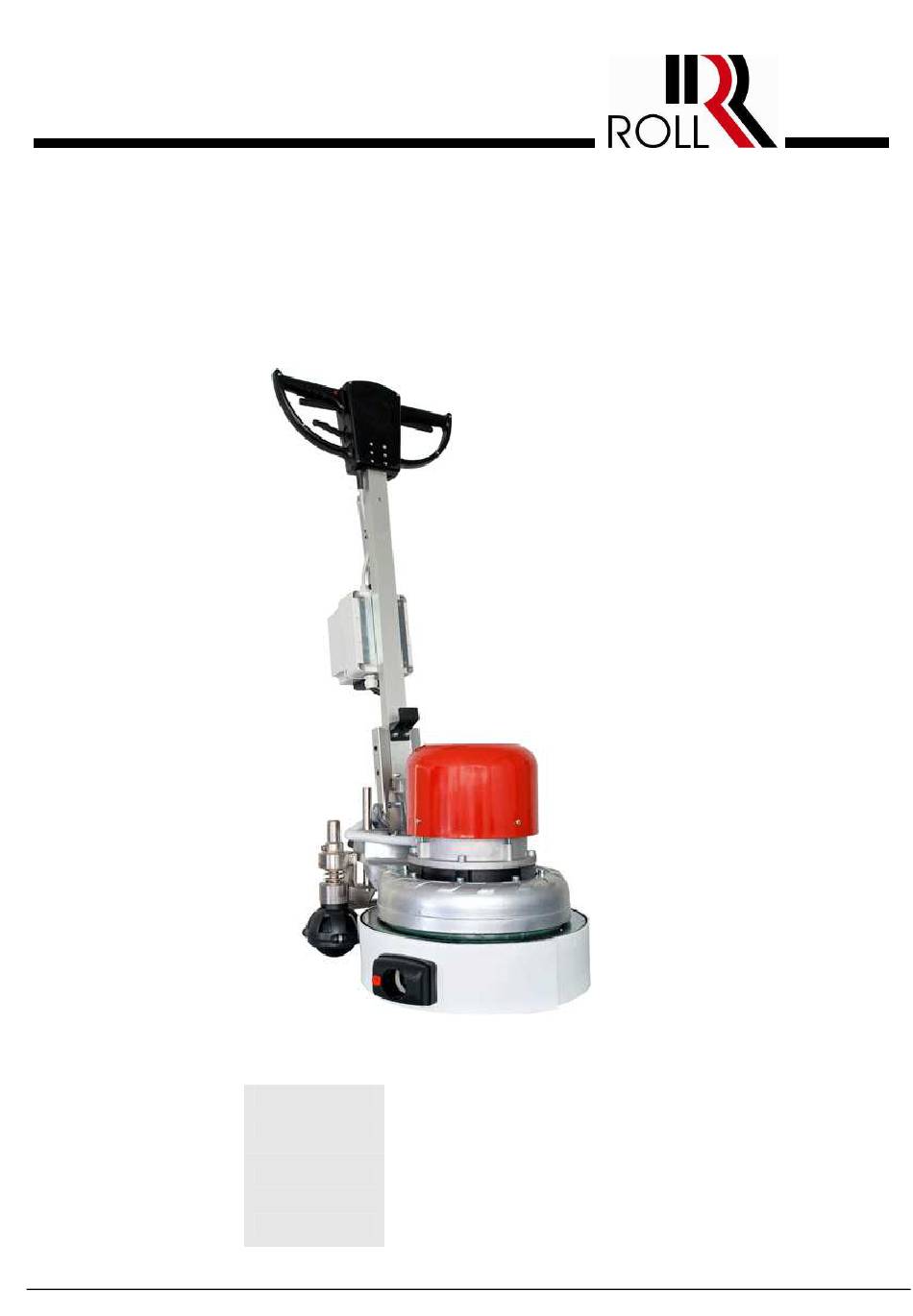

- Page 1 Operation manual / Spare parts list Parquet sanding machine Woody Operation manual Parquet sanding machine Woody Technical specifications Model Woody Power 3 000 W Rotation of the discs 800 rpm Working width 450 mm...
-
Page 2: Table Of Contents
Operation manual / Spare parts list Parquet sanding machine Woody Index Preliminary notes General notes for the operator Guarantee Safety General information Danger by improper use of the machine Safety notes: Operation Designated use General safety notes Prerequisites for the user Security and machine protection facilities Inspection in accordance with VBG 4 §... -
Page 3: Preliminary Notes
Preliminary notes Dear customer, you have decided for the Parquet sanding machine Woody, the correct choice for quality and performance.Your Woody is the result of the logical conversion of long-standing experience. This machine unites extremely high grinding performance, excellent vacuum system with mature and reliable technology simply to be used. -
Page 4: General Notes For The Operator
Operation manual / Spare parts list Parquet sanding machine Woody The operation manual identify important notes on safety and damage prevention using the following symbols: Warning! Designates a potentially hazardous situation. Please note that failure could cause death or injuries. -
Page 5: Guarantee
Parquet sanding machine Woody Guarantee and liability ROLL ensures a guarantee and liability are in accordance with our currently valid general business and sales conditions. The guarantee runs out after 12 months from purchase date. We reject any guarantee claims for tools which are not in their original condition, or for altered or changed tools or which are not used in accordance to the intended use. -
Page 6: Safety
• Switch off the machine immediately when the operation is completed. Designated use The Parquet sanding machine Woody is suitable for dry sanding of parquet and plank floors. No other use is allowed. Using the machine outdoors is not allowed. -
Page 7: General Safety Notes
Operation manual / Spare parts list Parquet sanding machine Woody General safety notes The Parquet sanding machine Woody is build and conceived under observance and attention of the basic security standards and health standards. • In spite of all safety measures and protective precautions dangers may occur, particularly if... -
Page 8: Inspection In Accordance With Vbg 4 § 5 (1) Nr
Operation manual / Spare parts list Parquet sanding machine Woody Inspection in accordance with VBG 4 § 5 (1) Nr. 2 The user is responsible for ensuring that the machine is inspected with respect to its proper operation in intervals of 6 months. The inspection may only be executed by a skilled electrician or by personnel that has been trained in electrical skills, provided that suitable measuring and test equipment is used. -
Page 9: General Instructions For The User
Operation manual / Spare parts list Parquet sanding machine Woody General instructions for the user Scope of delivery 1. Cpl. handle (mounted) 2. Cpl. Machine housing 3. Vacuum system (dismounted) 4. Planetary head system (dismounted) 5. Operation manual Disposal The cardboard is usable again and can be used as a camp container. We recommend keeping the cardboard for possible back delivery for continuous examination. -
Page 10: Transportation
Operation manual / Spare parts list Parquet sanding machine Woody Transport In many cases it is inevitable to transport resp. carry the machine to the point of utilisation. Warning, break danger! Do not throw the machine and do not transport it unfastened on loading area. -
Page 11: Assembly Of The Vacuum System
Operation manual / Spare parts list Parquet sanding machine Woody 4. Removing trolley Unscrew ball grip (7) and remove trolley wheels as pictured. 5. Insert working trolley Insert the directional trolley wheels as pictured, and adjust trolley in a comfortable position after placing machine in “working position”... -
Page 12: Preparation Of The Machine
Operation manual / Spare parts list Parquet sanding machine Woody Preparation of the machine Adjustment of the handle For a light and exact use of the machine the right height setting of the handle is important. To adjust the handle, pull right lever and adjust the handle in the right position, body height of the operator (basin-height). -
Page 13: Leading The Machine
3. Unlock the flange of the disc from the machine (Bayonet connector). Put the machine in horizontal position again. 2. Roll up the connection cable Roll up the cable around the lower cable holder and the handle grip. Attention! Check the cable while rolling up and remove impurities like dust and sanding remainders. -
Page 14: Ordering Address
Operation manual / Spare parts list Parquet sanding machine Woody Spare parts list Ordering information for spare parts An unmistakable identification and designation of the parts ensures that the correct part will be delivered. In order to avoid transmission errors and extensive descriptions it is recommended to use only the designations and the numbers stated in the spare parts list. -
Page 15: Exploding View Woody
Operation manual / Spare parts list Parquet sanding machine Woody Exploding view Woody Complete handle Guide rod Reinforced machine support Trolley... - Page 16 Operation manual / Spare parts list Parquet sanding machine Woody Exploding view Woody Working trolley Transformator Vacuum system Gear Machine housing Planetary head system...
-
Page 17: Declaration Of Conformity
Operation manual / Spare parts list Parquet sanding machine Woody CE DECLARATION OF CONFORMITY Roll GmbH, Albstr. 12, 72820 Declares under its own responsibility that the new machine Parquet sanding machine Woody conforms to the following Directive: CE (98/37/CE) CE (73/23/CEE)
