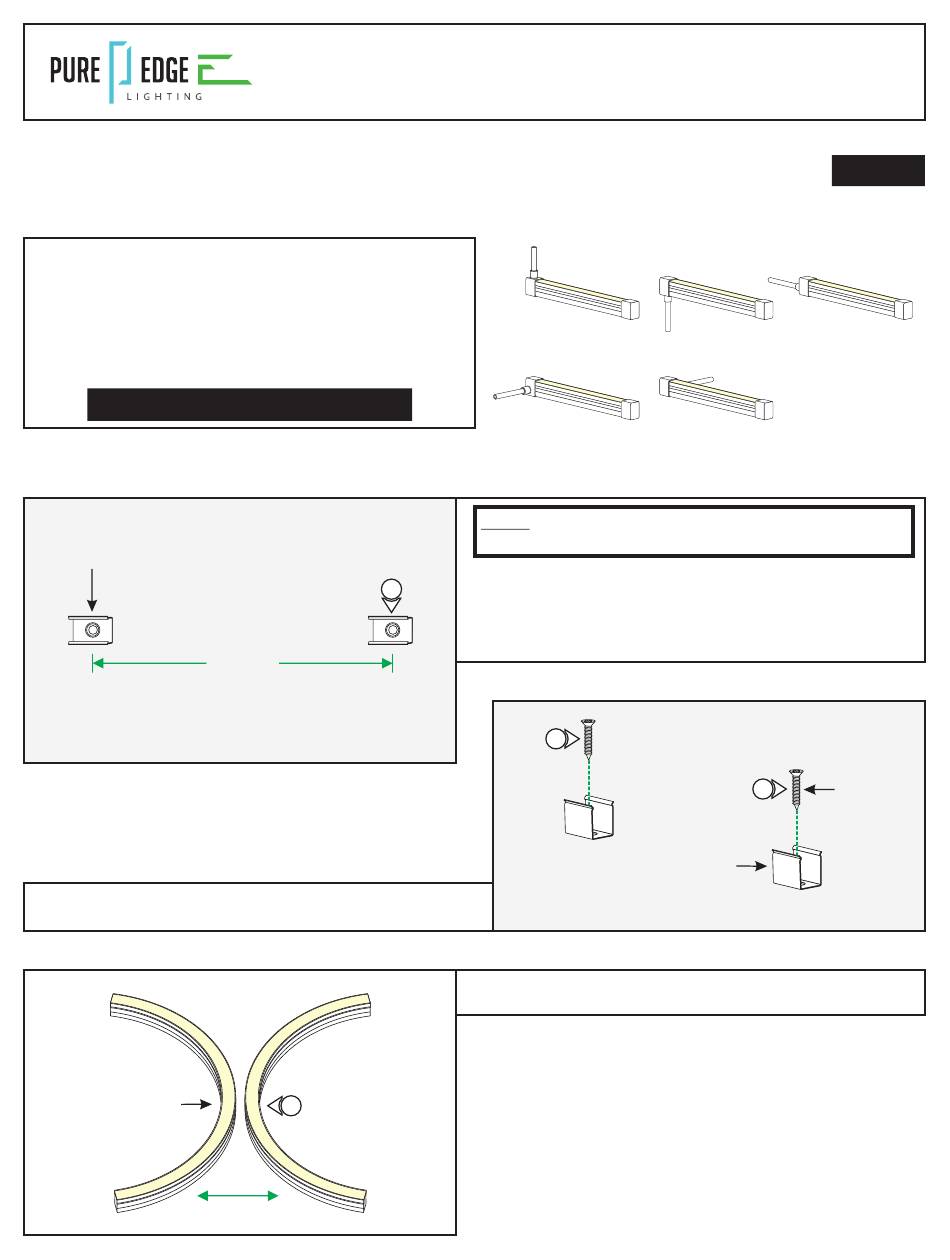

Installation Instructions for Flex Neon LRF5 24VDC Outdoor Wet
Location
IMPORTANT INFORMATION
- This instruction shows a typical installation.
- The Outdoor Flex Neon is an IP67 rated wet location fixture
featuring water tight barrel connections.
- This product bends right to left or left to right.
- This product must be installed by a qualified electrician and
in accordance with local electrical codes.
SAVE THESE INSTRUCTIONS!
Section One: Install the Flex Neon
A
MOUNTING
CLIP
3: Secure the mounting clips to a wood surface by tightening
the screws to each clip.
C
FLEX NEON
LEFT
SURFACE
2
MAX 12"
4
RIGHT
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
Top (T)
Bottom (B)
Left (L)
Right (R)
NOTE:
Omit this Section if using the Flexible Aluminum Channel.
Refer to Section Three.
1: Determine the location for the Flex Neon.
2: Mark the location of the mounting clips. Mounting clips must
be maximum 12" apart from each other (measure from the
center of the mounting clip).
B
3
4: If necessary, bend the Flex Neon ONLY right to left or left
to right.
Doc # 904-FN-LRF5-W_06
FN-LRF5-__
End (E)
3
MOUNTING
CLIP
End Cap (CA)
SCREW
SURFACE
1
