Summary of Contents for Daxten DISPLAYIT MICRO

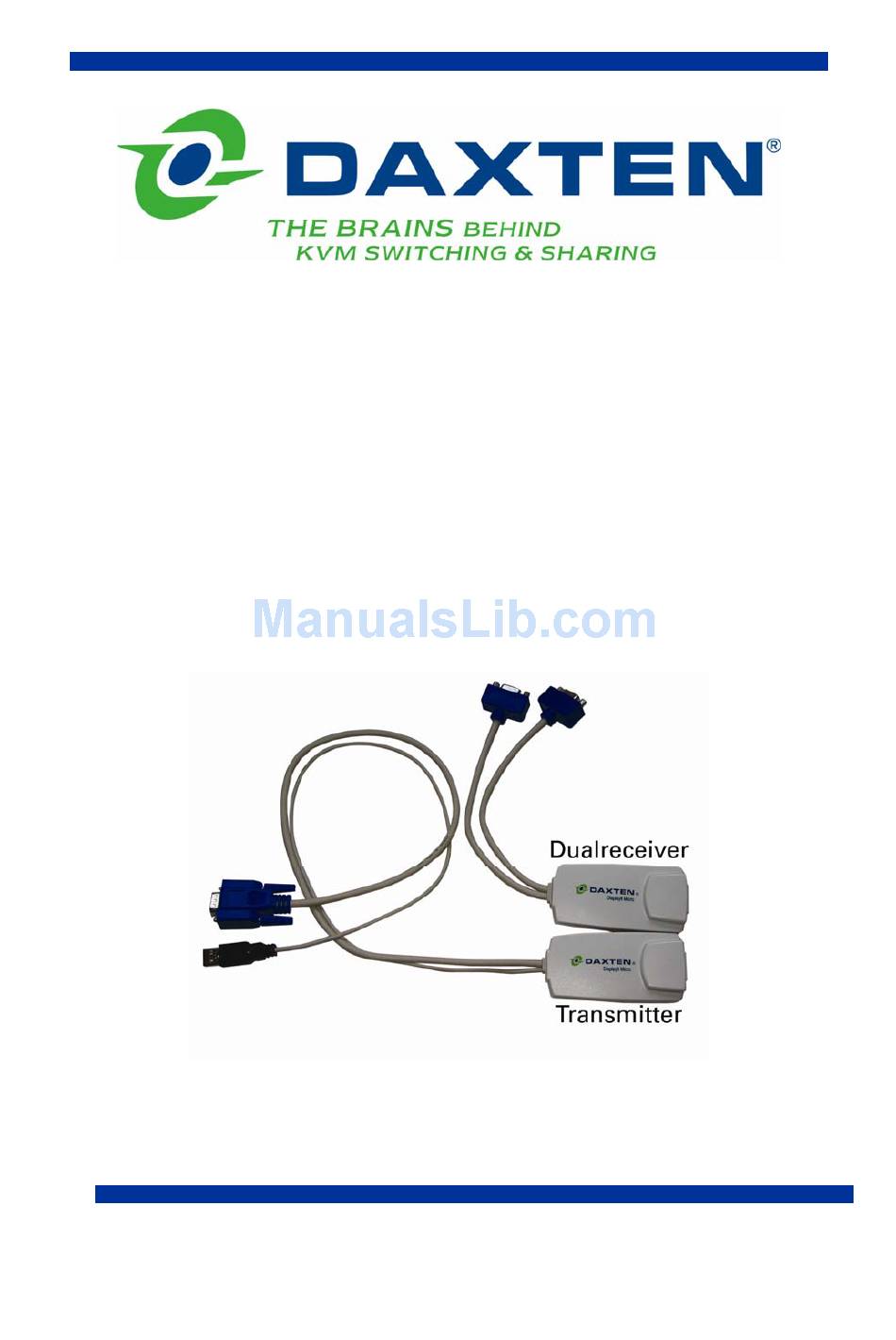

- Page 1 DisplayIt micro Digital Signage Installation guide...
-
Page 2: Specifications
-40°C to 70°C/-40ºF to 158ºF Humidity 80% non condensing relative humidity © Copyright 2006. All rights reserved. Daxten, the Daxten logo, DisplayIt and The Brains Behind KVM Switching and Sharing are trademarks of Daxten Industries. All other trademarks acknowledged. Revision 1.0... -
Page 3: Operation
DisplayIt micro Introduction Thank you for purchasing the DisplayIt Micro. This product will allow you to duplicate your computers video image on up to 128 displays up to 125 meters away from you computer. There are two types of DisplayIt Receivers available, single screen version and dual screen version. Features Allows you to display a PC’s screen up to 110 meters away from a PC, using a single CAT 5, 6 or 7 cable. -
Page 4: Led Indicators
Orientation: Looking into the RJ45 socket pin 1 is on the left and pin 8 on the right. Wire Colour Wire Pair White/Orange Orange/White White/Green Blue/White White/Blue Green/White White/Brown Brown/White Connecting up without a DisplayIt Micro Splitter Switch off your computer. Connect the DisplayIt Micro Transmitter unit to your computer’s monitor port. - Page 5 Quick Setup Guide...
-
Page 6: Service Information
Limited Warranty Daxten warrants to the end user that this product is and will be free from defects in materials and workmanship for a period of 24 months from the date of purchase. If during the warranty period the product should fail, the purchaser must promptly call Daxten for a RETURN MATERIALS AUTHORIZATION (RMA) number. - Page 7 Ireland United Kingdom Bay 21 811 W. Evergreen Ave 5 Manhattan Business Park Free Zone West Suite 302A Westgate Shannon, Co. Clare Chicago, IL 60622 London W5 1UP info.ie@daxten.com info.us@daxten.com info.uk@daxten.com www.daxten.ie www.daxten.us www.daxten.co.uk Tel: +353 (0) 61 23 4000...
