G-Force CP Series User Manual

G-FORCE
Under cont rol
CPL-1
Multicolor LED Light for
CP Serie Control Panels.
G-FORCE
Control button light control
1. The red light remains on for a long time; 2. The green
light remains on for a long time; 3. The blue light remains
on for a long time; 4. The yellow light remains on for a
long time; 5. The blue light remains on for a long time; 6.
The purple light remains on for a long time; 7. The white
light remains on for a long time; 8. White light flashing
quickly; 9. Colorful gradient; 10. Changes in colorful
jumping lights; 11. Colorful jump and gradient; 12. OFF.
Any time control button long press the light turns OFF.
After connecting control panel to the USB connector, the
light is default OFF.

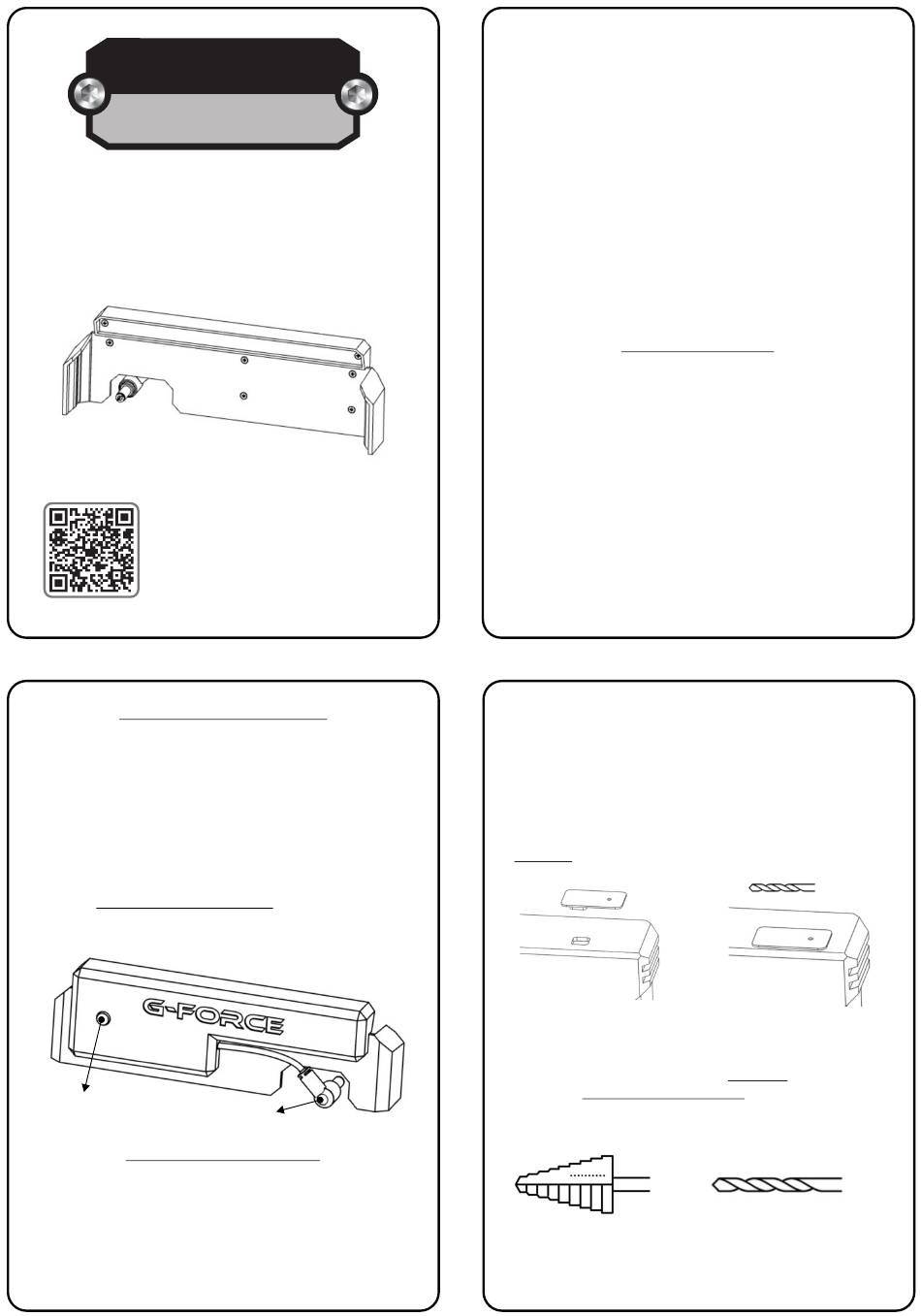

Control Button
Installation of upgrade kit
For installation of upgrade kit you need: solder, soldering
tin, 2mm drill, stepped drill.
1/ Open the control panel by unscrewing the top 4 hex
screws. Carefully lift the top control panel, being careful
not to damage the connected wires.
USER MANUAL
English V.1.1
DC
Connector
-2-
Thak you for purchasing a G-FORCE product. Our
passion is the development and production of gaming
devices for all enthusiasts of simulators and games. G-
FORCE manufactures and develops a range of control
panels for simulator and game enthusiasts. We produce
a limited number of custom devices, it is not serial
production. In our products you will find a functional
design, user-friendly controls and a quality selection of
components. We produce plastic parts using 3D printing
technology and all parts are specially designed for our
products. For more informations about products and
news please visit our website www.gforcecontrol.com
We wish you a lot of great gaming experience with G-
FORCE by controlling your planes, tanks, ships, cars or
your others favorite games.
Product Description
The CPL-1 light is a great upgrade that illuminates your
G-FORCE panel for night gaming sessions. The light can
be set to different colors using the control button located
on the back. The CPL-1 light is compatible with all G-
FORCE CP panels after installing a simple upgrade.
Installation is easy, you need to drill one hole for the DC
connector and solder the PH2 connector to the controller
PCB board. All the necessary parts are included in the
package and you can find detailed video instructions on
our website www.gforcecontrol.com.
You can find in this manual the QR code link to the
upgrade installation tutorial video.
2/ Disconnect the 16pin and 2pin connectors from the
control unit board. Unscrew the 4 small screws and
remove the control unit PCB.
3/ Use the included drilling template to accurately
position the hole for the DC connector. First, pre-drill a
small hole with a 2mm drill bit. Then enlarge the hole with
a step drill bit to 8mm.
$
Insert drill template to USB hole and drill 2mm hole
in the marked place
4/ Now enlarge the hole with a step drill bit to 8mm. For
8mm hole use only stepped drill or you risk damage of
the case.
R
OK!
5/ Insert and fix the panel mount DC connector with the
prepared wires into the 8mm hole.
-1-
2mm
$
S
NOT USE FOR 8mm HOLE!
-3-
