Summary of Contents for Feider Machines AIRCLEAN

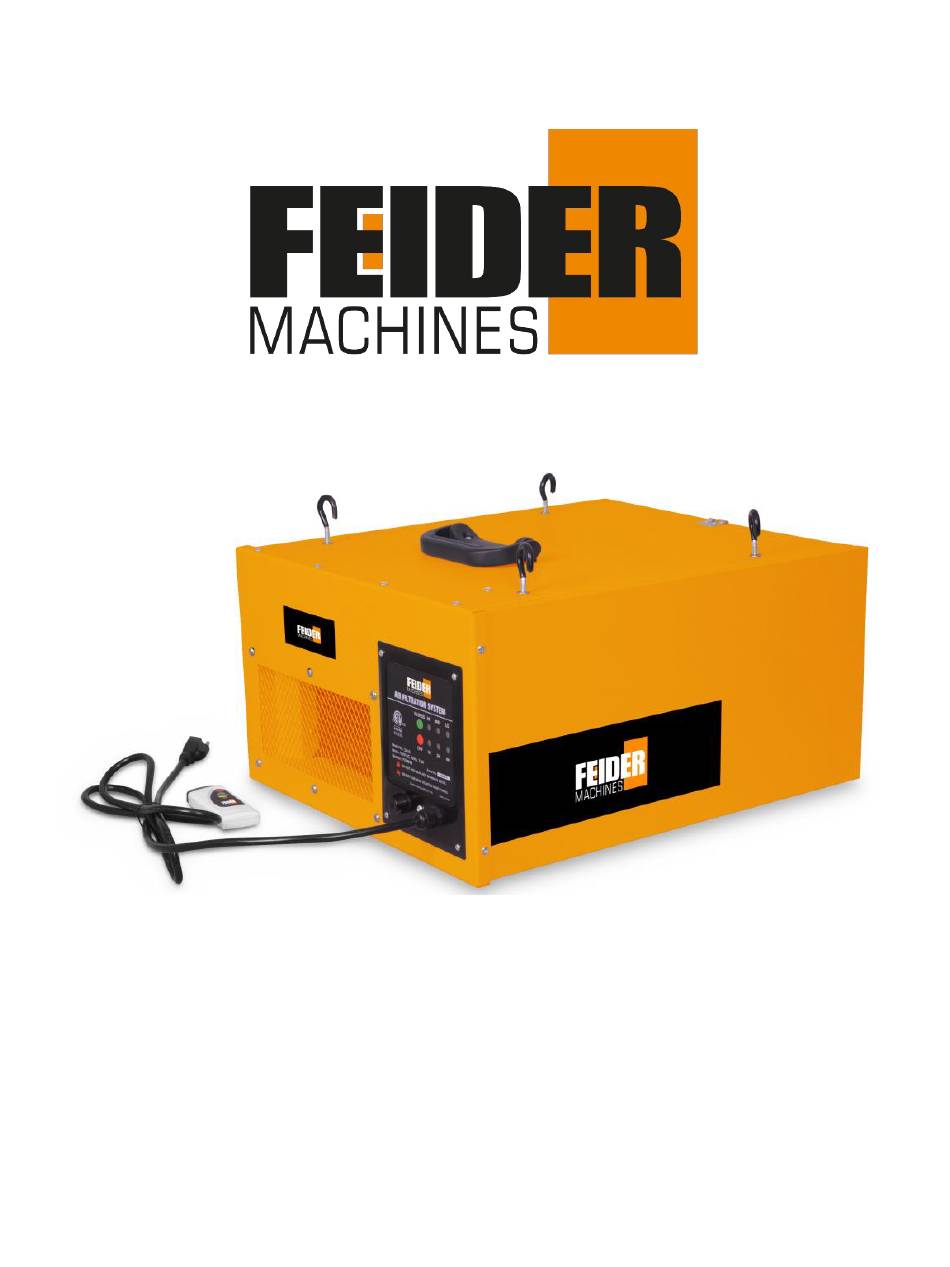

- Page 1 ORIGINAL NSTRUCTIONS >EN AIR FILTRATION SYSTEM Model：AIRCLEAN CAUTION: Read the instructions before using the machine!
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATIONS................3 ELECTRICAL INFORMATION................4 KNOW YOUR AIR FILTRATION SYSTEM............7 TECHNICAL DATA..................8 ASSEMBLY AND ADJUSTMENTS..............8 OPERATION....................9 MAINTENANCE................10 EXPLODED VIEW & PARTS LIST..............11 WIRING DIAGRAM................15 DISPOSAL AND RECYCLING................16 DECLARATION OF CONFORMITY..............16 WARRANTY....................17 PRODUCT FAILURE..................18 WARRANTY EXCLUSIONS...............19... -
Page 3: General Safety Rules
1. GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFETY INSTRUCTIONS. WARNING:To avoid mistakes and serious injury, do not plug in your tool until the following information have been read and understood. -
Page 4: Electrical Information
structural components such as drywall, false ceiling panels, etc. 4) Position the air filtration system so that it is at least 1m away from any corner and from any heating, cooling, or air circulation vents 5) Do not use the air filter in environments that have poisonous gases, fumes, noxious smoke, or other chemical risks. - Page 5 conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances. Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a qualified electrician.
- Page 6 heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The table below shows the correct size to be used according to cord length and nameplate ampere rating. When in doubt, use a heavier cord.
-
Page 7: Know Your Air Filtration System
3. KNOW YOUR AIR FILTRATION SYSTEM NOT SHOWN: 1 - Inner Filter (present inside of machine on arrival) 2 - AAA Batteries ( Included) Unpacking Parts: Carefully unpack the air filter and all its parts. Do not discard the carton or any packaging until the air filter is completely assembled... -
Page 8: Technical Data
4. TECHNICAL DATA Model Number: AIRCLEAN Motor: 220-240VAC, 50Hz, 125W 1/6HP Air Flow Speeds: 300, 350, and 400 CFM Filter: 1 micron inner/5 micron outer Sound Output: 50~60 dB Maximum Remote Control Distance: 50 feet Weight: 13.85kg Transmission frequency band : 433.050-434.790 MHz... -
Page 9: Operation
6. OPERATION The air filter can be operated directly using the control panel or with the remote control. 8.1 TURN ON AIR FILTER AND SPEED SETTINGS (Fig. 3 and 4) 1) Plug the power cord into an appropriate power source. 2) Press the ON/Speed button (1) on the control panel or the remote control to power on the air filter. -
Page 10: Maintenance
7. MAINTENANCE WARNING: To reduce the risk of injury and electric shock, unplug the air filtration system from the power source before changing the air filters or servicing the unit. If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard 9.1 CHANGE THE FILTERS (Fig. -
Page 11: Exploded View & Parts List
8. EXPLODED VIEW & PARTS LIST... - Page 12 Parts List for the Air Filtration System Item No. Supplier Part Nr. Description Qty. 9NG04D0 Hex nut 9SJAD04-12D Pan head screw 9SJAD06-15D Pan head screw 9166-600101 Air box front cover 9068-600101 Grid plate 9004-600103 Air guide 9NG06D0 Hex nut 9SJCD04-12D Hexagon socket flat head bolt 9SJAC04-10D Socket head cap screw...
- Page 13 9163-600102 Inner filter 9163-600101 Outer filter 9046-600101 Rubber foot 9152-600101 Remote control label 9053-600103 Remote control top cover 9160-600101 Battery cover 9164-600101 Remote control PCB 9053-600104 Remote control bottom cover 9053-600105 Battery cover 9053-600106 Remote control front cover 9029-600102 Power cord 9172-600101 Strain relief 9042-600101...
- Page 14 6NC05D0 Stop nut 9NA05D0 M5 Nut 9027-600101 Wire 9031-600101 Fan wheel 9142-600101-1 Fan housing cover 9142-600101-2 Fan housing 9161-600101 Rubber spacer 9WF05D1 Large washer 9004-600105 Motor 9SJAB04-14D Self tapping screw 9042-600102 Capacitor cover 9WO04D0 Outer tooth washer Φ4 9033-600102 Capacitor 9142-600101-3 Fan housing cover 9SFDD05-25D...
-
Page 15: Wiring Diagram
9. WIRING DIAGRAM (220-240VAC ONLY) -
Page 16: Disposal And Recycling
BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, déclare que， Product: Air Filtration system Model: AIRCLEAN Serial number: 20230800001-20230801400 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. -
Page 17: Warranty
12. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 18: Product Failure
13. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 19: Warranty Exclusions
14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 20 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in China in 2023...
