Summary of Contents for Opop LP6 AQUA

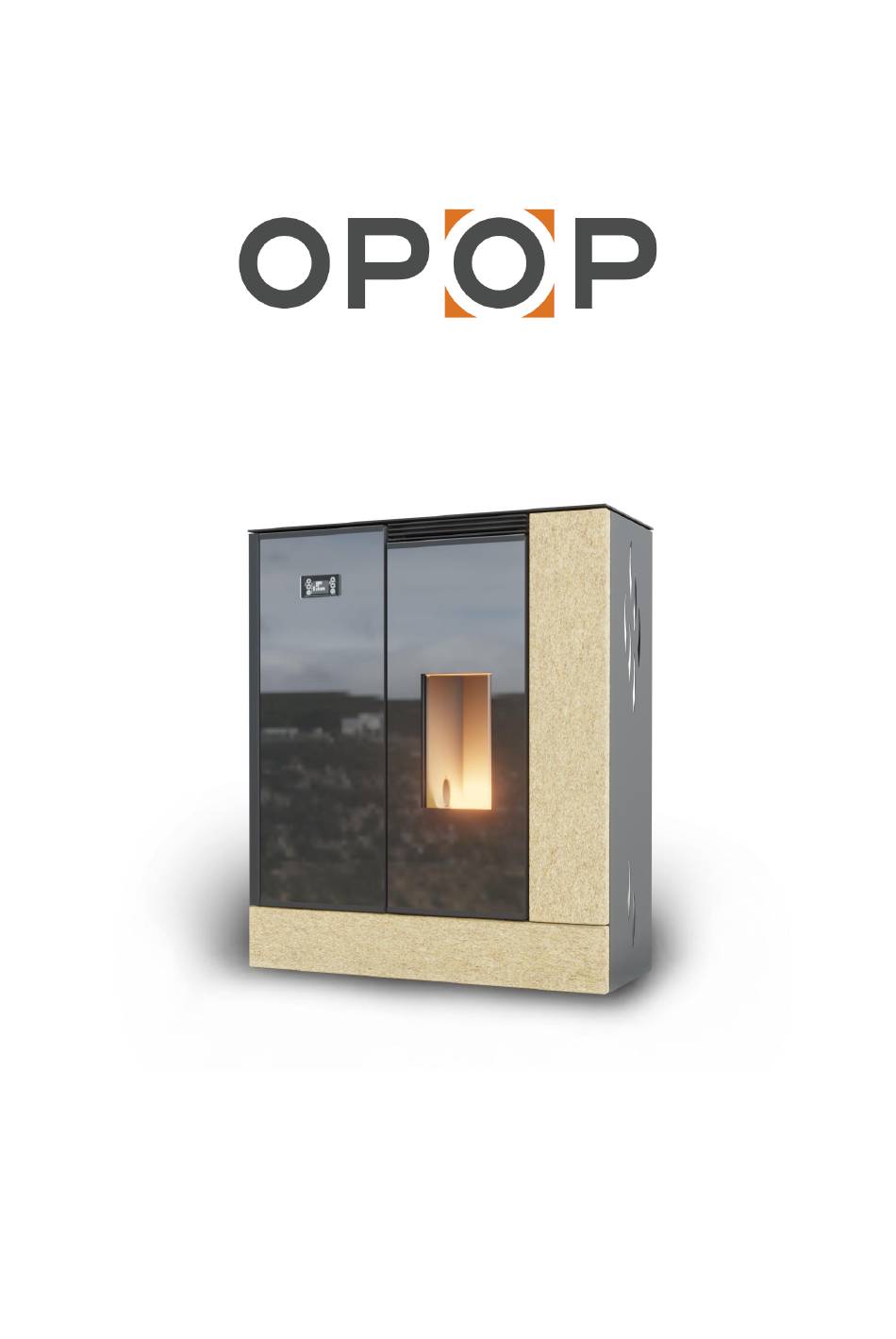

Page 1 Instruction Manual Pellet stove LP6 AQUA...
Page 2: Table Of Contents
Pellet stove LP6 AQUA – instruction manual INTRODUCTION ................................ 3 TECHNICAL PARAMETERS ............................3 STOVE OPTIONS ................................ 5 OPTIONAL HYDRAULIC SET ............................5 TRANSPORT AND STORAGE ............................6 STOVE PLACEMENT ..............................6 CHIMNEY CONNECTION ............................8 CENTRAL AIR CONNECTION ............................9 PUTTING INTO OPERATION ............................
Page 3: Introduction
Pellet stove LP6 AQUA – instruction manual CIRCUIT DIAGRAM ............................. 19 ROOM TEMPERATURE SENSOR ......................... 20 REPLACING THE IGNITION CARTRIDGE ......................20 DISPOSAL OF TRANSPORT PACKAGING AND THE PRODUCT AFTER ITS SERVICE LIFE ........20 ONLINE CONNECTION ............................21 WARRANTY TERMS ............................21 WARRANTY CARD...............................
Page 4 Pellet stove LP6 AQUA – instruction manual Noise level Max 50 dB pozition name Part number Protective grille ND22346A Bottom stone ND21842 Hopper ND21531A Ceramic insulation ND21724 - ND21726 Auger feeder ND21528 Rear casing ND22441A Feeder motor 359426600003 Burner bowl...
Page 5: Stove Options
3. STOVE OPTIONS LP6 SE (serpentine) LP6 SA (sandstone) 4. OPTIONAL HYDRAULIC SET Pellet stoves can also be purchased with a hydraulic set. This ensures water circulation and pressure equalization in the system, a mixing valve to extend the life of the stove, and a safety valve to protect the stove in the event of an accident.
Page 6: Transport And Storage
Pellet stove LP6 AQUA – instruction manual 5. TRANSPORT AND STORAGE Pellet stoves can only be transported in an upright position, in their original packaging and must properly secured against movement and falling. Transport must take place in a confined space to avoid damage due to weather conditions. It is necessary to maintain a vertical position when handling, the stove must not be tilted in any way to prevent damage.
Page 7 Pellet stove LP6 AQUA – instruction manual The pellet stove is attached to a pallet with 2 screws. These screws must be removed before taking the stove off the pallet. To remove these screws, first remove the 2 end caps on the stove's rear casing (marked with a red frame in the figure above).
Page 8: Chimney Connection
Pellet stove LP6 AQUA – instruction manual chimney. Similarly, the stove manufacturer bears no responsibility for an inappropriately designed flue pipe passage through a flammable wall or ceiling. If flue pipes run through walls made from flammable construction materials or with flammable components, it is necessary to make a filler of non-flammable materials with very low thermal conductivity around the flue pipe (see ČSN 061008 Fire protection...
Page 9: Central Air Connection
Pellet stove LP6 AQUA – instruction manual 8. CENTRAL AIR CONNECTION Central air connection must be implemented in airtight buildings, where oxygen content may be reduced in a room heated by a pellet stove. Connect the hose to the air intake nozzle on the rear wall (Ø 50 mm).
Page 10: Fuel
Pellet stove LP6 AQUA – instruction manual • NEVER touch the pellet stove's outer surfaces - risk of burns and possible danger to life, except for the control and regulating elements! • NEVER extinguish a pellet stove fire with water!
Page 11: First Start-Up
Pellet stove LP6 AQUA – instruction manual 9.5 FIRST START-UP it is necessary to constantly ventilate and provide the room with enough fresh air when warming the pellet stove's surface paint during the first use! Prior to using the stove for the first time, we recommend that you carefully read the following chapter "Control Unit Control".
Page 12: Starting The Stove
Pellet stove LP6 AQUA – instruction manual The figure below shows the meaning of the status symbols on the left side of the display. Activation of one of the symbols on the display indicates the activation of the stove's corresponding electrical equipment.
Page 13: Adjusting Power Settings
Pellet stove LP6 AQUA – instruction manual 10.3.4 ADJUSTING POWER SETTINGS To adjust maximum power setting, simply press the T5 button the unit display. The display shows the Set Power. Press T5 (to decrease power) and T6 (to increase power) to change this number. After approximately 5 seconds, the heater saves the entered number in memory and the display returns to its normal state.
Page 14: User Menu Structure
Pellet stove LP6 AQUA – instruction manual 10.4.2 USER MENU STRUCTURE The following table briefly describes the menu structure, especially with regard to the setting options available to the user. Set clock Sets the current time and date. The circuit board is equipped with a lithium battery to allow the internal clock to be autonomous for 3 to 5 years.
Page 15: Burning Adjustment
Pellet stove LP6 AQUA – instruction manual 10.5 BURNING ADJUSTMENT Burning adjustment can be performed using 2 functions in the control unit menu. Fan speed adjustment – Chimney type function, adjustment range from -9 to +9% Pellet load adjustment – Pellet type function, adjustment range from -9 to +9%...
Page 16: Alarm Messages
Pellet stove LP6 AQUA – instruction manual 10.7 ALARM MESSAGES If the control unit detects problems during operation, it will shut the stove down and sound an alarm accompanied by an acoustic signal (if activated in the Buzzer Mode). Alarm origin...
Page 17: General Recommendations
Pellet stove LP6 AQUA – instruction manual 11.1 GENERAL RECOMMENDATIONS Before each igniting, check that there is not a large amount of ash in the burn pan (above the level of the side holes). If so, clean the burn pan and the area under the pan from ash and return the burn pan back to its position.
Page 18: Cleaning Flue Gas Paths
Pellet stove LP6 AQUA – instruction manual 11.5 CLEANING FLUE GAS PATHS A Upper flue gas exchanger B Side flue gas exchanger C Space under the ashpan Soot from the flue pipes and chimney should be removed annually by a qualified chimney sweep.
Page 19: Circuit Diagram
Pellet stove LP6 AQUA – instruction manual 12. CIRCUIT DIAGRAM Flue Firmare flue gas upload sensor encoder Room sensor base welded jacket earthing bridge vacuum sensor flue neutral bridge on DIN rail combustion products fan Rocker switch with AC 230 V fuse...
Page 20: Room Temperature Sensor
Pellet stove LP6 AQUA – instruction manual 13. ROOM TEMPERATURE SENSOR The room temperature sensor is at the rear of the stove. This sensor senses the temperature in the space. In order for the sensing temperature to correspond to real values, it is necessary to install the stove so that there is sufficient space for air flow at the rear of the stove.
Page 21: Online Connection
Pellet stove LP6 AQUA – instruction manual 16. ONLINE CONNECTION Each LP6 Aqua pellet stove can be connected online to the Plain application. The procedure for activating the online functions can be found below 1. Download the Plain application from MICRONOVA SRL to your mobile phone.
Page 22 Pellet stove LP6 AQUA – instruction manual 19. Opening the door to the combustion chamber during operation when there is a flame in the stove is prohibited. 20. Interfering with the stove's design and wiring is prohibited. 21. The manufacturer bears no responsibility for damage caused by the product's improper adjustment or improper operation.
Page 23: Warranty Card
Pellet stove LP6 AQUA – instruction manual 18. WARRANTY CARD LP6 Pellet Stove Manufacturer: OPOP spol. s r.o., Valašské Meziříčí Date of dispatch from the plant:_________________________________________ The user is obliged to entrust commissioning, regular maintenance and repairs to a professional assembly company / service organisation.
Page 24 We are very pleased with your decision to buy our product. This decision entitles you to a 20% discount on spare parts. In order to receive the above benefits, it is necessary complete the registration card and send it to our address: OPOP spol s r.o., Obchodní oddělení, Zašovská 750, 757 01 Valašské...
