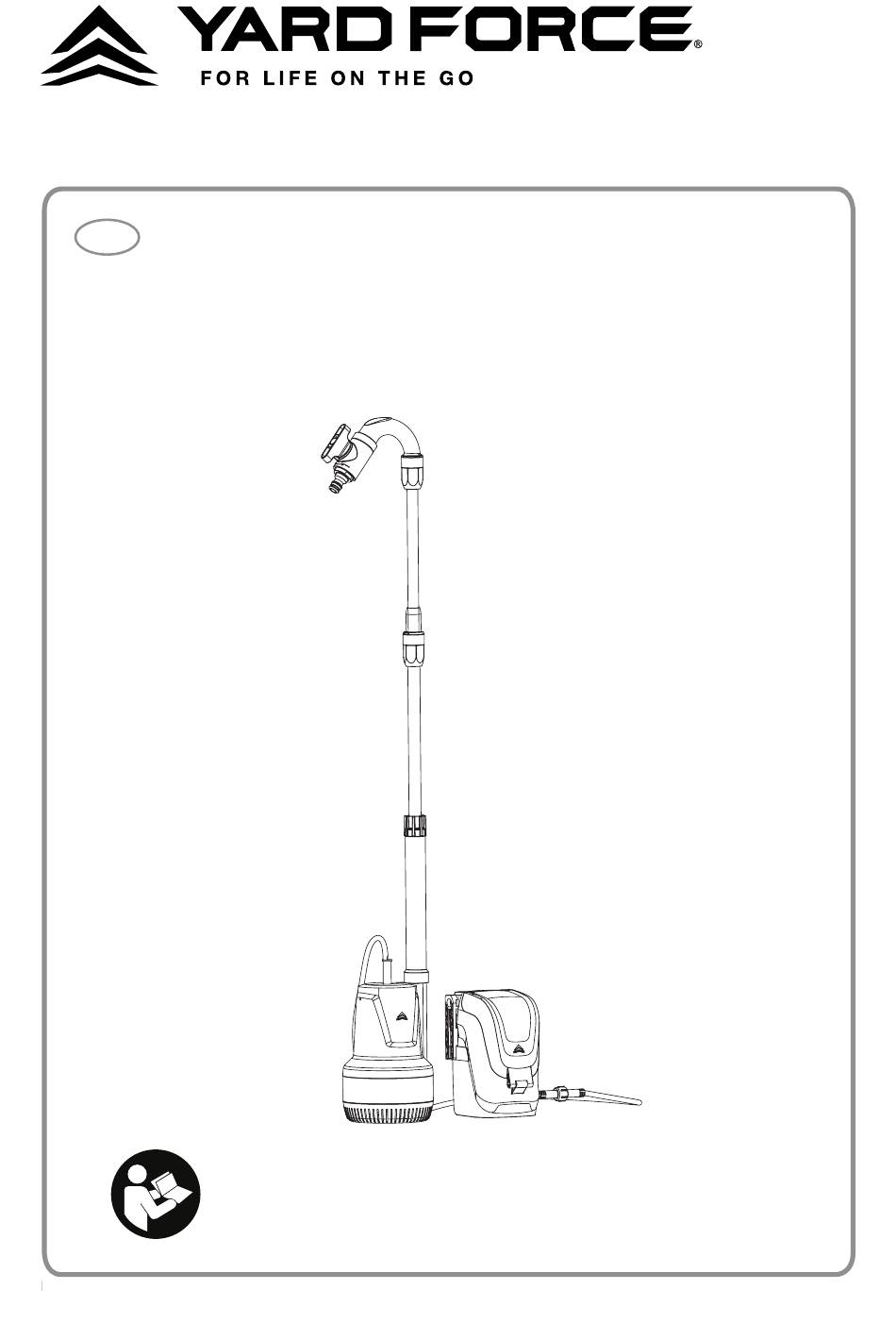

- Page 1 LX CWP1 20V CORDLESS RAIN WATER PUMP Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
- Page 5 30 cm 60 cm...
-
Page 6: Table Of Contents
LX CWP1 Original Instructions CONTENT Intended use General safety warnings Product safety warnings Symbols Technical data Description of product Assembly Operation Maintenance and storage Troubleshooting CE declaration... -
Page 7: Intended Use
INTENDED USE The rain water pump is intended for removing water from containers such as paddling pools, from rain barrels. The pump is completely submersible (waterproof) and is submerged in the water. For safety reasons it is essential to read the entire instruction manual before first operation and to observe all the instructions therein. -
Page 8: Circuit Breakers
GENERAL SAFETY WARNINGS DANGER! The pump should not be used for the delivery of salt water, muddy water, corrosive, easily inflammable or explosive liquids (e. g. petrol, paraffin, thinners), oil, heating oil or foodstuffs. Circuit breakers 1. Dry-running protection: If no water is pumped (undercurrent) the pump switches off automatically. - Page 9 GENERAL SAFETY WARNINGS 2. Before using, always subject the pump to a visual inspection. 3. A pump which is damaged should not be used. In the event of damage, have the pump checked by service centre. 4. Protect the battery contacts from moisture. Personal safety DANGER! Risk of suffocation! Small parts can be easily swallowed.
-
Page 10: Product Safety Warnings
PRODUCT SAFETY WARNINGS can only be loosened with great force and the vent valve can become stuck. If necessary, loosen the vent valve with compressed air or a wire. Charger 1. Recharge only with the charger specified by the manufacturer. Do not use the original charger on other li-ion batteries or on any other type of battery as this can increase the risk of fire or explosion. -
Page 11: Battery Pack
PRODUCT SAFETY WARNINGS If water accesses the battery charger there is an increased risk of electric shock. 9. The Battery will heat up whilst charging. To reduce the risk of fire, do not operate battery charger on flammable surfaces such as paper or textiles. 10. - Page 12 PRODUCT SAFETY WARNINGS allowed to cool before putting it into the charging station. 5. To reduce the risk of explosion, ensure the battery pack is not left in the sun for extended periods of time and that it is kept away from fire. 6.
- Page 13 PRODUCT SAFETY WARNINGS pack. There are no customer serviceable parts inside. Return to any authorised service centre. 6. Store the appliance with battery pack fully charged at room temperature (around 20ºC). 7. Every deep discharge cycle decreases the capacity of battery pack. To prolong battery life, it is recommended that you charge the battery every six months within extended periods of time when the product is not in use.
-
Page 14: Safety Symbols
SYMBOLS Safety symbols The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them require your careful attention and full understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures. - Page 15 SYMBOLS This symbol, before a safety comment, indicates a precaution, a warning or a danger. Ignoring this warning can lead to an accident for yourself or for others. To limit the risk of injury, fire, or electrocution always apply the recommendations indicated.
- Page 16 SYMBOLS Degree of protection against ingress of water (Pump). IPX 8 Degree of protection against ingress of water (Battery pack tank). IPX 4 Max. media temperature 35 °C <35°C Conforms to relevant UK regulatory requirements.
- Page 17 SYMBOLS Warning symbols on the battery pack To reduce the risk of injury, user must read instruction manual carefully. Do not throw into water. Do not throw on fire. Do not subject the battery to strong sunlight over long periods of time. Do not leave on a heater (max.45 °C).
-
Page 18: Warning Symbols On The Charger
SYMBOLS Warning symbols on the charger To reduce the risk of injury, user must read instruction manual carefully. The charger is for indoor use only. Double insulation T3.15A Protective 3.15 A limited WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. -
Page 19: Technical Data
TECHNICAL DATA Model LX CWP1 Max. delivery capacity 2000 l/h No load speed 13000 min Max. delivery head 20 m Max. submersion depth Max3 m Max. media temperature 35 ºC Weight 2.06 Kg Battery pack Model B0P-SP07-20-ZJ Battery capacity 2.5 Ah Battery charging time Max. -
Page 20: Description Of Product
DESCRIPTION OF PRODUCT Parts description (Fig. A) Extension tube Height adjustment locking knob Telescopic pipe Battery housing and timer Filter cover Pump Hose connector Flow rate adjustment knob Delivery contents (Fig. B) Carefully unpack the appliance and check that it is complete. Dispose of the packaging material correctly. -
Page 21: Assembly
ASSEMBLY Attaching the telescopic pipe (Fig. C) Screw the telescopic pipe onto the pump connector. Make sure that the sealing washer lies in the connecting thread of the telescopic pipe. Adjust the length of telescopic tube Release the height adjustment ring Pull out the tube tighten the height adjustment ring Attaching the extension tube (Fig. -
Page 22: Operation
OPERATION Charging the battery pack NOTE: Remove the battery pack from the charger after it has been fully charged. NOTE: Battery should be fully charged before first use. NOTE: Make sure the mains voltage is the same as rating label which is located on the charger. - Page 23 OPERATION Control panel : ON / OFF button (s): Push the ON / OFF button on the control panel. The pump starts with the previously selected power level. After the pump is switched on, the battery capacity status indication is displayed with green LEDs.
- Page 24 OPERATION Mode 3 high flow: Pumping capacity: max. 2000 l/h Battery life: approx. 15 minutes (with 2.5 Ah battery). Ideal for water transfer with height differences or long hoses, irrigation with shower or sprinkler, cleaning or feeding a garden shower. Applications: CAUTION! Destruction of the battery! The battery unit is destroyed when they are immersed in water.
-
Page 25: Maintenance And Storage
MAINTENANCE AND STORAGE DANGER! Risk of injury! Injury when the product starts accidentally. - Remove the battery before you maintain the product. To clean the pump: DANGER! Risk of injury! Risk of injury and risk of damage to the product. Do not clean the product with a water jet (in particular high-pressure water jet). -
Page 26: Troubleshooting
TROUBLESHOOTING Fault/malfunction Cause Remedy Wait for about max. 60 seconds until the pump has vented; if necessary, Air in suction filter switch off / on several times if housing. necessary. If this does not help briefly start Pump is running, the pump in the water once but doesn’t deliver without the hose. -
Page 27: Ce Declaration
MEROTEC GmbH, Otto-Brenner-Straße 8, 47877 Willich/ Deutschland Declare that the product: Description: 20V Rain pump Model No. LX CWP1 Function: Pumping water Complies with the essential health and safety requirements of the following directives: Machinery Directive 2006/42/EC Electromagnetic Compatibility Directive 2014/30/EU... - Page 28 Unit A&B Escrick Business Park Escrick, York YO19 6FD United Kingdom Declare that the product: Description: 20V Rain pump Model No. LX CWP1 Function: Pumping water Complies with the essential health and safety requirements of the following directives: Supply of Machinery (Safety) Regulations 2008...
