Ariens SENDEC 59208200 Instruction Sheet

Instruction Sheet
Kit Number: 59208200
HOUR METER KIT
WARNING: FAILURE TO FOLLOW
INSTRUCTIONS could result in personal injury
and/or damage to unit.
Read, understand, and follow all safety practices
in Owner/Operator Manual before beginning.

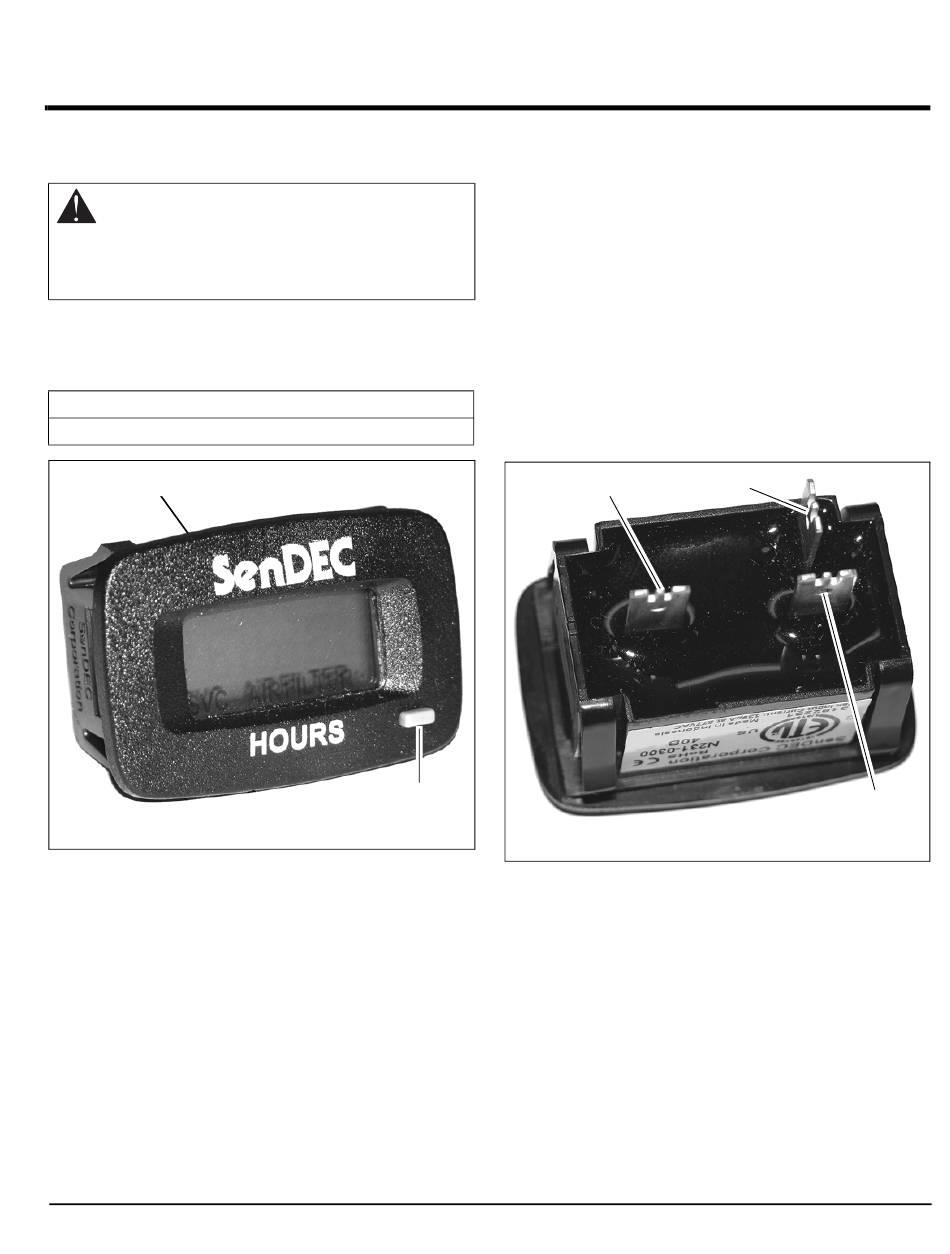

Package Contents
Check the contents of your kit for the parts listed below
(Figure 1):
Item Description
1 Digital Hour Meter
1
© Copyright 2010 • Ariens Company • Brillion, WI 54110-1072
Qty Ariens P/N
1 03966800
Mode
Button
Figure 1
INSTALLATION
NOTE: Some units may have a one-piece connector on
the wire harness that connects to the old hour meter. On
units with this connector, the one-piece connector must
be cut off and two 1/4" insulated female connectors
installed on the wire harness.
1. Disconnect the wires from the old hour meter and
remove hour meter.
2. Instal the new digital hour meter.
NOTE: The digital hour meter is not polarity sensitive.
3. Connect the two wire connectors to one of two pairs
of terminals on the back of the new hour meter,
either A-B or B-C as shown in (Figure 2). Do not
connect to terminals A-C.
A
4. Put the key in the "ON" position and see if the hour
meter is working. If the hour meter is functioning
correctly, an hourglass will flash on the screen.
C
Figure 2
00472100A 4/10 Page 1 of 2
B
