GFE MCPA Instruction Manual

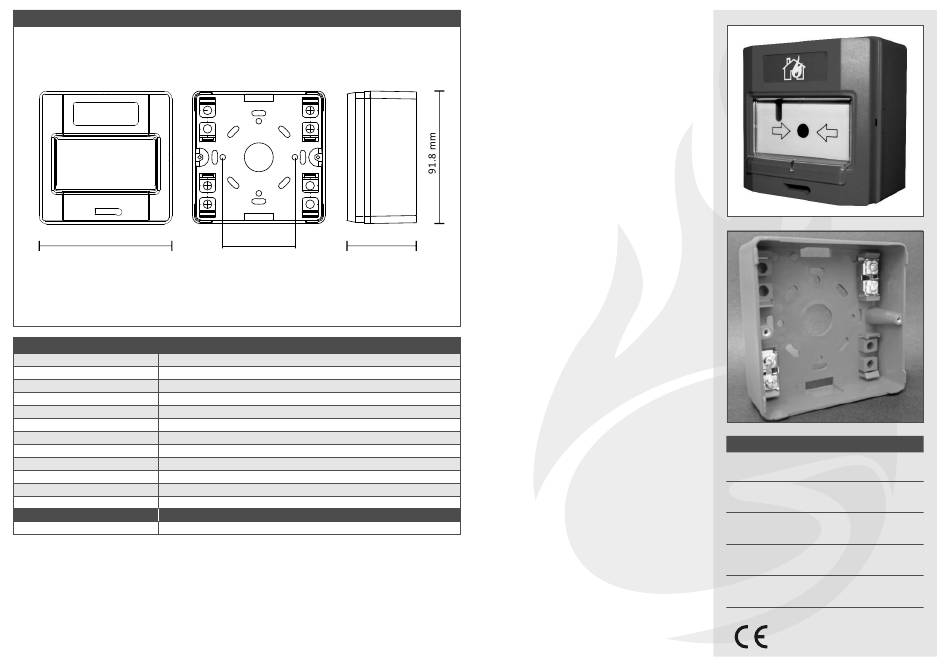

MECHANICAL SPECIFICATION
91.8 mm
TECHNICAL SPECIFICATIONS
OPERATING VOLTAGE
CURRENT CONSUMPTION
QUIESCENT
ALARM
OPERATING TEMPERATURE
STORAGE TEMPERATURE
INGRESS PROTECTION GRADE
MAXIMUM HUMIDITY
COLOUR / CASE MATERIAL
WEIGHT
DIMENSIONS - SURFACE MOUNTED
DIMENSIONS - FLUSH MOUNTED
ORDER CODE
GFE-MCPA
GLOBAL FIRE EQUIPMENT S.A.
Sítio dos Barrabés, Armazém Nave Y, Caixa Postal 908-Z, 8150-016 São Brás de Alportel - PORTUGAL
Tel: +351 289 896 560 • Sales: sales@globalfire.pt • Technical Support: techs@globalfire.pt • www.globalfire.pt
51 mm 53.8 mm
17V to 30V DC
-
500 uA
3.5 mA
-10ºC to +50ºC
-30ºC to +60ºC
IP64
95% RH Non-Condensing @ 40ºC
Red / ABS - Flame Retardant - Rating 94 V0
152 g includes black box and fixings
91.8 (W) x 91.8 (H) x 53.8 mm
91.8 (W) x 91.8 (H) x 21.7 mm
DESCRIPTION
Addressable Manual Call Point
GFE-MCPA
Addressable Manual Call Point
The GFE-MCPA is an Analogue Addressable
M a n u a l C a l l P o i n t , d e s i g n e d a n d
manufactured to comply with EN-54 part 11,
compatible with all GFE Addressable Control
Panels.
With its enhanced communications
mechanism the typical response time, when
in alarm, is approximately one second,
depending on the number of call points
connected to the device loop.
A bi-colour LED flashes Green when the unit
is interrogated by the control panel and is
illuminated Red when in alarm.
The command to illuminate the Red LED is
emitted by the control panel in response to
activation of the individual call point thus
confirming that the Alarm signal has been
received at the control panel.
The individual address, up to 125, of each call
point is set via an eight way DIL switch.
The unit is supplied complete with a hinged
flap which protects the trigger element from
accidental activation and reduces malicious
activations as 2 actions are required in order
to activate the device.
This unit can be both surface and flush
mounted and can be easily reset using the
supplied key after activation.
Instruction Manual V1.1- 06/13
FEATURES
Fast Activation Response
Bi-colour Status LED
Surface or Flush Mounting
Easy Reset Mechanism
EN-54 pt.11 compliant
Made in Portugal-EU
