U.S.SAWS MC-60
OPERATING MANUAL
Notice of Copyright Protection
Copyright 2020, by U.S.SAWS . All rights reserved. This work may not be reproduced or disseminated in whole or in part by any
means without the prior written permission of U.S.SAWS
05-07-2025
P: 877-817- 6687
Surface Prep
Visit us at www.ussaws.com
Division
sales@ussaws.com
Advertisement
Table of Contents
Related Manuals for U.S.SAWS MC-60
Summary of Contents for U.S.SAWS MC-60

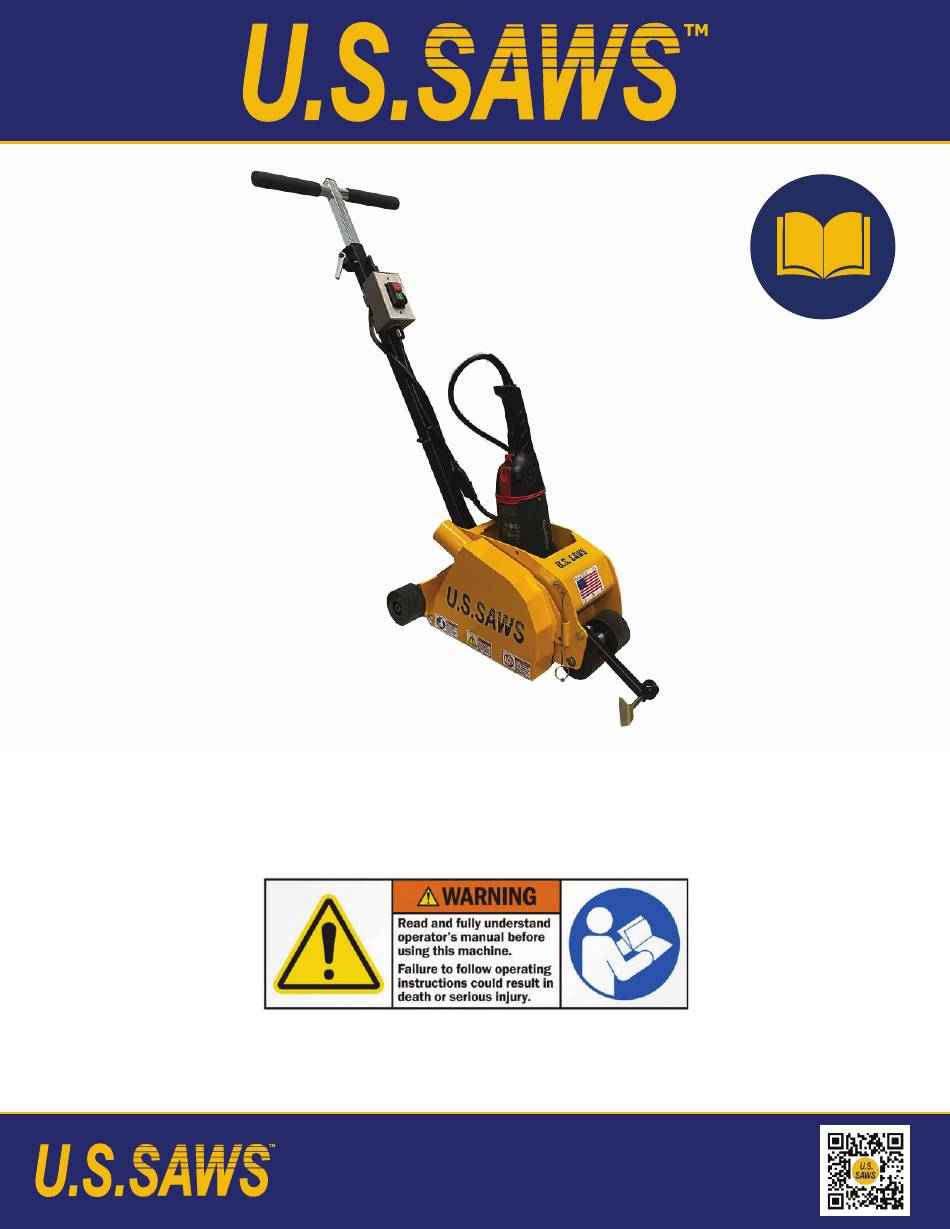

- Page 1 U.S.SAWS MC-60 OPERATING MANUAL Notice of Copyright Protection Copyright 2020, by U.S.SAWS . All rights reserved. This work may not be reproduced or disseminated in whole or in part by any means without the prior written permission of U.S.SAWS 05-07-2025...
-
Page 2: Introduction And Specifications
& maintenance of the U.S.SAWS MC-60 Machine & to instruct you in safety practices for dealing with these conditions. Keep all manuals provided with your SPECIFICATIONS machine in a safe place at all times. -
Page 3: Symbols And Decals
You must clearly understand the written instructions supplied by U.S.SAWS, be trained - including actual operation - & know the safety rules & regulations for the job site. It is a safety practice to point out & explain safety signs & practices to others & to make sure they Wear appropriate clothing understand the importance of following these instructions. -
Page 4: Safety Instructions
RECEIVE PROPER TRAINING. electric shock. Do not operate this machine unless you have received operational and maintenance training from a U.S.SAWS representative or from an autho- 4.11 AVOID ANY AREAS OR ACTIONS THAT EXPOSE YOU TO CARBON rized distributor for U.S.SAWS. -
Page 5: Dust Warning
S A F E T Y I N S T R U C T I O N S 4.29 LOAD AND UNLOAD SAFELY. 4.18 DO NOT OVERREACH. Use proper heavy lifting procedures. Read & understand manuals before Keep proper footing and balance at all times. loading &... -
Page 6: Pre-Operation Check List
Always perform a pre-operation inspection before each operation and correct any problem. CAUTION: Running the MC-60 generates heat in the motor, blade. Do Observe the condition of your work environment. Walk over not touch these components without wearing proper heat protecting area work area and look for hazards. - Page 7 DONE WITH THE MC-60 UNPLUGGED Blade Setup Instructions The MC-60 is designed to operate with 1 to 8 diamond blades (6” diam- eter). The machine comes standard with 5 blades and a set of spacers for width customization. Blade & Spacer Configuration: 1.
- Page 8 If an accurate depth must be cut, install the blade to be Step 3. Lock the locking arm tightly and you are ready to cut. used with the motor in the OFF position. Place the MC-60 in a secure position that allows the blade to overhang and be visibly measured at Step 4.
- Page 9 5.13 MC-60 premium dry cut diamond blades U.S.SAWS recommends soft blond blades for use with the MC-60. Blades can be used in a variety of sizes and spacing options up to 1.5” wide.
-
Page 10: Operation
The blade will turn as soon as the MC- SETTING THE BLADE DEPTH 60 is started. This could damage the blade or cause the MC-60 to jump backwards. The accurate way: Lay the saw on its side in the same position you would to change the blade. -
Page 11: Operating The Saw
O P E R AT I O N LINING UP THE BLADE WITH THE CUT The inner most blade position ( closest to motor) is naturally aligned with the edge of the yellow rolling frame along the right hand side. This makes overlap and cutting on chalk lines extremely easy. -
Page 12: Parts Breakdown
US31100 Quick Release Pin US32102-3 5/16 e-clip SX45025 Front Axle US31053-13 Wheel US31053-13 Wheel US32235 Wheel Bearing US30183-20 Shoulder Bolt Axle US31165 3/8-16x3-1/2” Blade Guard Bolt SX45111 MC-60 Chassis P: 877-817- 6687 Surface Prep Visit us at www.ussaws.com Division sales@ussaws.com... - Page 13 PA R T S B R E A K D O W N ITEM PART NUMBER DESCRIPTION SX45141 Pointer Arm SX45142 Pointer US32372-1 Pointer Knob US31105-5 5/16-18x1-1/4 Hex Bolt US31321 5/16 Washer US31110-1 5/16 Nyloc Nut US32102-3 5/16 e-clip SX45142-3 MC60 Front Pointer Wheel SX45026 Front Wheel Spacer...
- Page 14 PA R T S B R E A K D O W N ITEM PART NUMBER DESCRIPTION US32409 Foam Handle grip SX45024 MC60 Upper Handle US32415 Handle height adjustment lever SX13770 Mag Switch 110V SX45021 MC-60 Lower Handle P: 877-817- 6687 Surface Prep Visit us at www.ussaws.com Division sales@ussaws.com...
- Page 15 PA R T S B R E A K D O W N ITEM PART NUMBER DESCRIPTION US31156-1 3/8-16x1-3/4 Hex Bolt SX13742 Handle Mount Clamp Plate SX73902 SX73904 Washer US32416 MC60 Depth Adjustment Lever SX45128 MC60 Grinder Mount Bracket P: 877-817- 6687 Surface Prep Visit us at www.ussaws.com Division...
- Page 16 PA R T S B R E A K D O W N ITEM PART NUMBER DESCRIPTION SX81134 MC-E Outer Blade Nut SX81135 MC-F Inner Blade Nut SX45028 Blade Spacer .125 TNB06100DF 6x100x7/8 Turbo Wave Blade P: 877-817- 6687 Surface Prep Visit us at www.ussaws.com Division sales@ussaws.com...
- Page 17 FILL OUT THE ATTACHED CARD COMPLETELY AND ACCURATELY. WARRANTY REGISTRATION CARD IMPORTANT! To ensure that your U.S.SAWS machine is covered under warranty, please fill in the following information and mail or fax it to U.S.SAWS, 8004B E. Broadway Ave. Tampa, FL 33619, Fax No. (813) 621-7125...
-
Page 18: Warranty And Service
Warranty This document is to be used as a guide in determining warranty policies and procedures for U.S.SAWS and its U.S.SAWS products. It is to be used in determining whether a warranty is justified and as a procedural guide in completing a U.S.SAWS warranty claim form.
