Always read and observe safety
considerations and published
installation instructions.
a. Use this product only in the manner intended
by GAF.
b. If you have installation questions,
please contact GAF Master Flow
™
Services at 1-800-211-9612 or email
MasterFlowTech@gaf.com. In the unlikely event that
accessories or parts are missing, or this product
does not function properly, please contact GAF
Master Flow Technical Services. Do NOT return
™
this rooftop accessory to retailers or distributors.
c. Install only on roof slopes 3:12 – 12:12.
d. Compatible with the inside diameters of Schedule
40 PVC, ABS, and Steel plumbing vent pipes
and may be used with 6" – 15" - (152 mm –
381 mm) tall pipes (see Figure 1 and
Compatibility Chart).

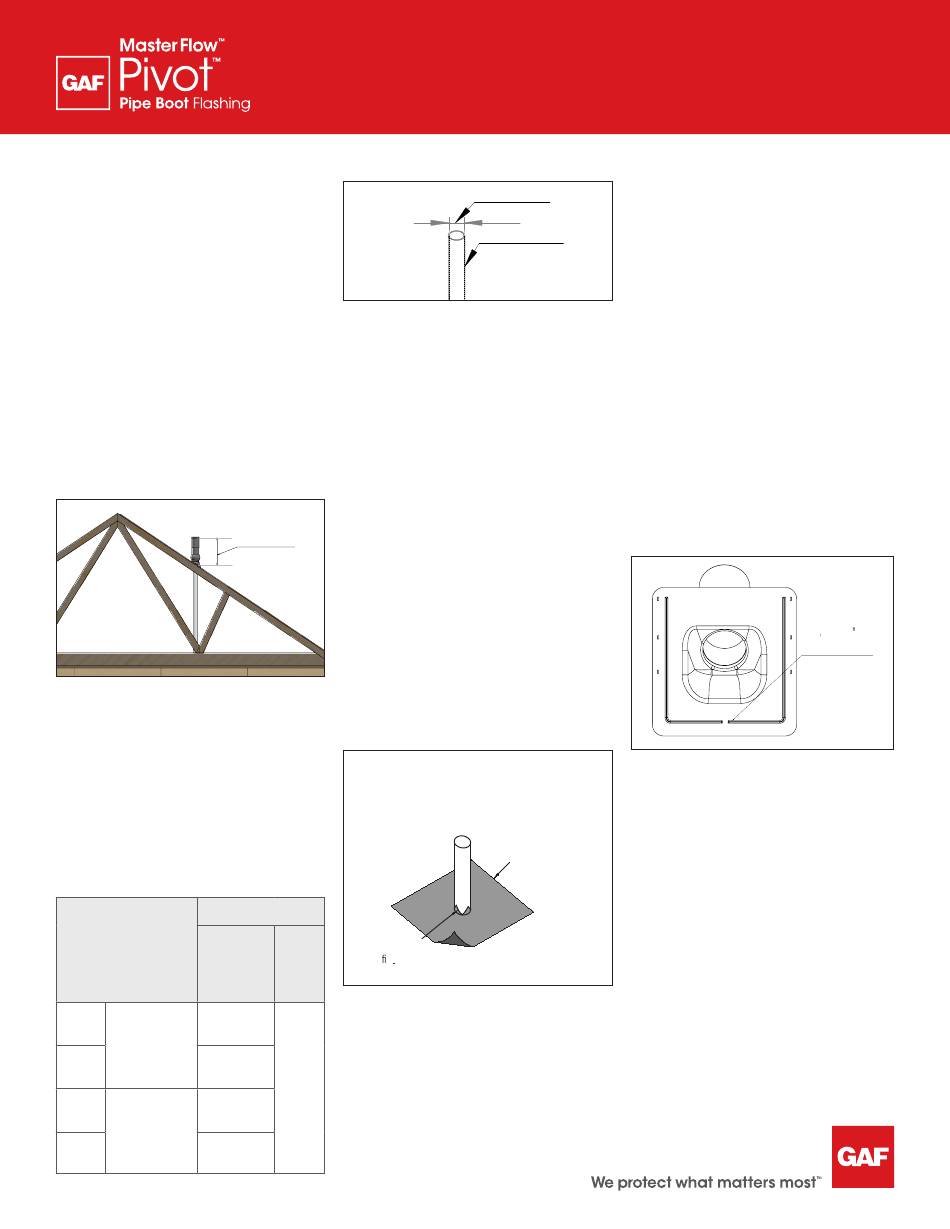

Figure 1
Note: If necessary, taller plumbing pipes can be cut
down to 15" (381 mm) or less.
e. During installation and handling, always wear
appropriate Personal Protective Equipment
(PPE) such as safety glasses, durable work
gloves, hard hats, fall restraints, and other safety
equipment to avoid injury.
Always review and observe all applicable local
building and plumbing codes in your area. Note:
plumbing codes often require plumbing vent pipes
to extend vertically at least 6" (152 mm) above the
roof deck.
Compatibility Chart
Compatible with the
Schedule 40
PVC, ABS &
Pivot Model
™
Steel Plumbing
Vent Pipes
Pipe Inside
Diameters
Pivot Small
Pivot 1.5
1.5"
(38 mm)
Combo — 1.5 & 2
PPBG1.5
PPBGSC
with 1.5" (38 mm) & 2"
Pivot 2
(51 mm) 2"
(51 mm)
PPBG2
Pipe Inserts
Pivot Large
Pivot 3
3"
Combo — 3 & 4
(76 mm)
PPBG3
PPBGLC
with 3" (76 mm) &
Pivot 4
4"
4" (102 mm)
(102 mm)
PPBG4
Pipe Inserts
Figure 2
Technical
Preparation:
1. Install roof deck protection (i.e., underlayment),
such as GAF Deck-Armor
Roof Deck Protection, per manufacturer's published
installation instructions. The roof deck protection
should always be installed leaving at least 6"
(152 mm) of exposed roof deck around the
plumbing pipe.
2. Cut a minimum 24" x 24" (610 mm x 610 mm)
square piece of self-adhering leak barrier, such
as GAF StormGuard
and center the square over the top of the
plumbing pipe.
For pipe heights 6" - 15"
3. Cut an "X" in the leak barrier square from one
(152 mm - 381 mm)
above roof deck
outside edge of the plumbing pipe to the other,
ensuring the "X" is slightly smaller than the pipe's
overall width to allow the leak barrier to fit tightly
around the pipe.
4. Remove the release liner on the leak barrier and
lower the leak barrier down around the plumbing
pipe, firmly pressing it in place to the roof deck,
roof deck protection, and up the side of the
plumbing pipe itself. Reference (Figure 3)
for a sample of the completed preparation.
Note: A handheld roller can be used to help ensure
maximum adhesion of the self-adhering leak barrier.
Figure 3
GAF Roof Deck
Protection
DRAWN
Following:
Pipe
Cut over pipe
Height
in an "X" for
Above Roof tight t
Deck
5. Proceed with shingling up to the plumbing
pipe, following the manufacturer's published
installation instructions.
6" – 15"
(152 mm –
381 mm)
Inside Diameter
Outside Diameter
Premium Breathable
™
Film-Surfaced Leak Barrier,
®
D
D A
GAF Leak Barrier
at least 24" x 24"
(610 x 610 mm)
square
A
INSTRUCTIONS
Pivot Installation:
™
6. Separate the Pivot cap assembly from its base
™
flashing assembly.
7. Using the base flashing's built-in ball/socket pitch
adjustment feature, adjust the Pivot
oriented vertically toward the sky. This feature
allows for simple rooftop pitch adjustment from
3:12 – 12:12.
8. With the "UP" arrow inscribed in the base flashing
pointing towards the roof peak, center and slide
the base flashing down over the plumbing pipe.
The bottom portion of the base flashing must
always sit on TOP of the shingle course below
the plumbing pipe. Vertically orient the Pivot
toward the sky using the rooftop pitch adjustment
feature, centering the plumbing pipe in the
base flashing.
Note: For additional weather protection, a bead
of asphalt plastic roofing cement (ASTM D4585
Type I or Type II) or polyurethane roofing and flashing
sealant (ASTM C920) is recommended to be applied
in a 'U' shape pattern underneath the bottom and
sides of the base flashing (Figure 4).
Figure 4
Sealent applied under bottom
and sides of base ashing.
Leave /
sealent under bottom section
to allow for drainage.
so that it is
™
™
" (6.4 mm) gap in
4
D
DRAWN
A
