Summary of Contents for REKOR Edge Pro

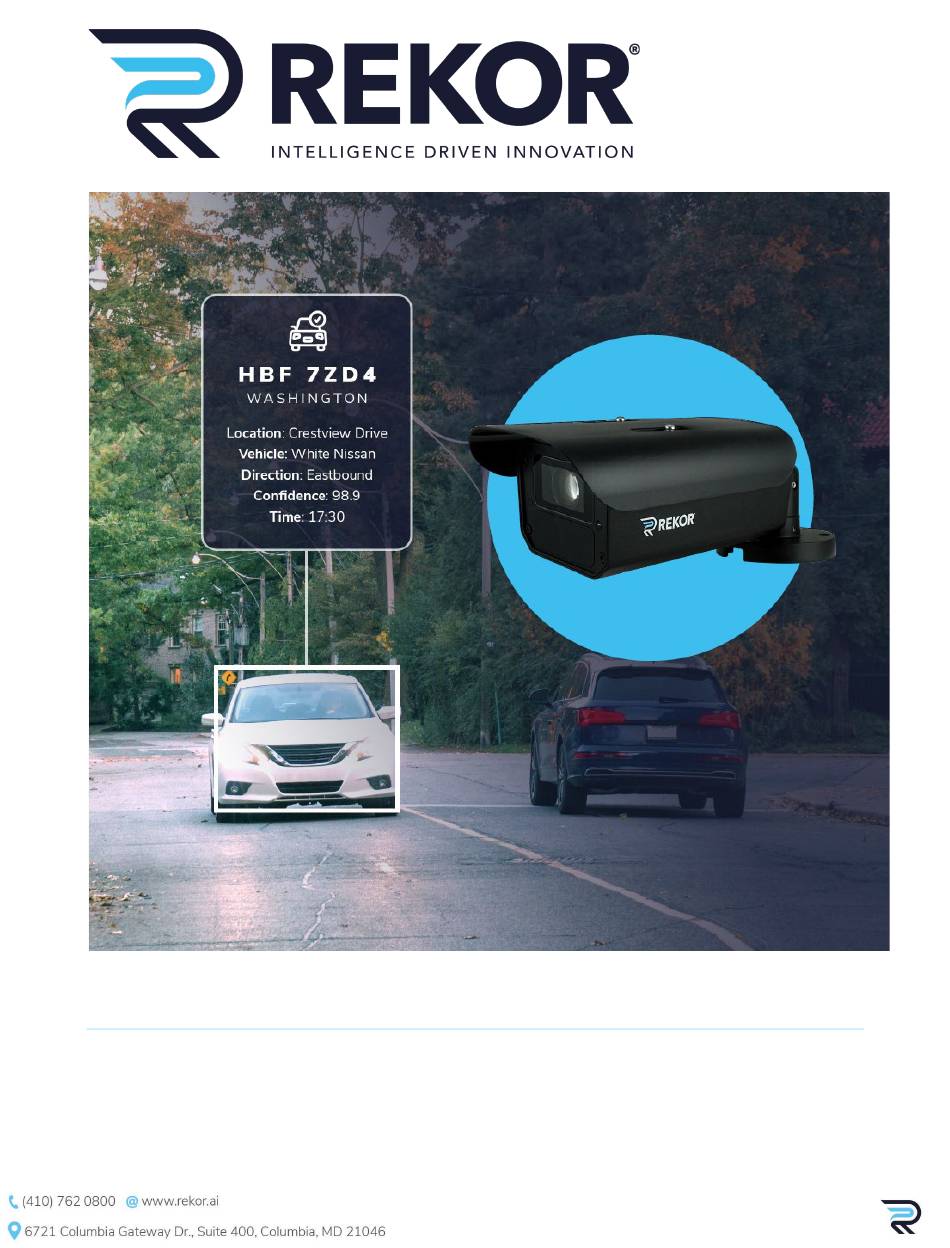

- Page 1 Edge Pro with Comms Installation Manual Version 1.0...
-
Page 2: Revision History
Rekor Systems, Inc. Furthermore, the purchase of Rekor Systems products shall not be deemed to grant either directly or by implication, estoppel or otherwise, any license under the copyrights, patents, or patent applications of Rekor Systems, except for the normal non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. -
Page 3: Table Of Contents
Edge Pro with Comms Installation Manual Contents Overview ..........................1 Packing List ........................1 Cable Connections ......................1 Installation ..........................2 SIM Card Installation (If not already installed) ............... 2 Sun Shield Cover ......................4 Mounting Bracket Assembly ................... 5 Pole Mounting......................... -
Page 4: Overview
Edge Pro with Comms Installation Manual 1 Overview 1.1 Packing List Component Pieces Camera Drilling sticker Power terminal Crimping terminal (support 0.75mm2 and 1.0mm2 cable) 2 Allen wrench (M4) Waterproof connector for network cables Quick Start Guide Expansion tube Tapping screw... -
Page 5: Installation
1. Disconnect the cable for the GPS module. 2. Remove the 6 screws in the top cover plate of the Edge Pro using the Allen wrench. 3. Pop the SIM card out of the card, down to the smallest card. - Page 6 Edge Pro with Comms Installation Manual 4. Insert the SIM card into the slot on the bottom center of the carrier board. 5. Re-attach the cable for the GPS module and the camera cover, using the 6 screws. NOTE: Ensure that the camera cover is fit, flush, and secured with the screws to avoid weather damage and voiding the warranty.
-
Page 7: Sun Shield Cover
Edge Pro with Comms Installation Manual 8. Attach an antenna to each side of the camera. 2.2 Sun Shield Cover Use a Philips screwdriver to install the sun shield cover, as shown below, then adjust the cover to the positioning most suitable for the sun angle at the camera installation location. -
Page 8: Mounting Bracket Assembly
Edge Pro with Comms Installation Manual 2.3 Mounting Bracket Assembly 1. Disassemble the top of the mounting base from the bottom of the mounting base plate. 2. Drill a hole for ethernet cable into the mounting structure (pole, building, etc.). This cable will feed into the base plate. -
Page 9: Pole Mounting
Edge Pro with Comms Installation Manual 2.4 Pole Mounting 1. Open the hose clamps and thread them through the installation holes on the mounting bracket. Use hose clamps to affix and install the pole-mount bracket to the pole. 2. Place the junction box on the pole-mount bracket so that the arrows of bottom point to the ground as well as. -
Page 10: External Wall Mounting
Edge Pro with Comms Installation Manual 7. Loosen the three hex socket bolts and adjust the camera to the required angle. Then re-tighten the screws, and adjust the position of the sunshield. 2.5 External Wall Mounting 1. Confirm that the cable outlet on the wall is large enough for the pigtails to pass through. - Page 11 Edge Pro with Comms Installation Manual 3. Connect the external cabling to the camera pigtails, insulate the connections (see Cable Connections), and feed the cabling through the cable entry on the wall. 4. Fasten the tapping screws. NOTE: Make sure the cable outlet at the camera base is installed facing downwards and is sealed with waterproof glue or caulking to prevent water from getting into the camera.
-
Page 12: Cable Connections
Edge Pro with Comms Installation Manual 2.6 Cable Connections 2.6.1 Safety Precautions • The lightning arrester must be installed and grounded if the camera is installed outdoors. • Strong and weak current cables must be kept at least 3” apart from each other. When connecting the cables to the device, take care to avoid connecting strong current cables close to weak current interfaces or the device could be damaged. -
Page 13: Ethernet/Poe Connection
Edge Pro with Comms Installation Manual 2.6.3 Ethernet/POE Connection Connect the network cable. Mount the number O-ring for the waterproof connector onto the network cable port and install the remaining components of the waterproof connector in the sequence shown below. The waterproof connectors of the network cable must be secured tightly. -
Page 14: Installation Checklist
Edge Pro with Comms Installation Manual 3 Installation Checklist Result The SIM card is installed. Yes ☐ No ☐ The camera is securely installed to the pole or wall. Yes ☐ No ☐ The ambient temperature meets the device specifications.
