Summary of Contents for stereo labs ZED Box Mini Series

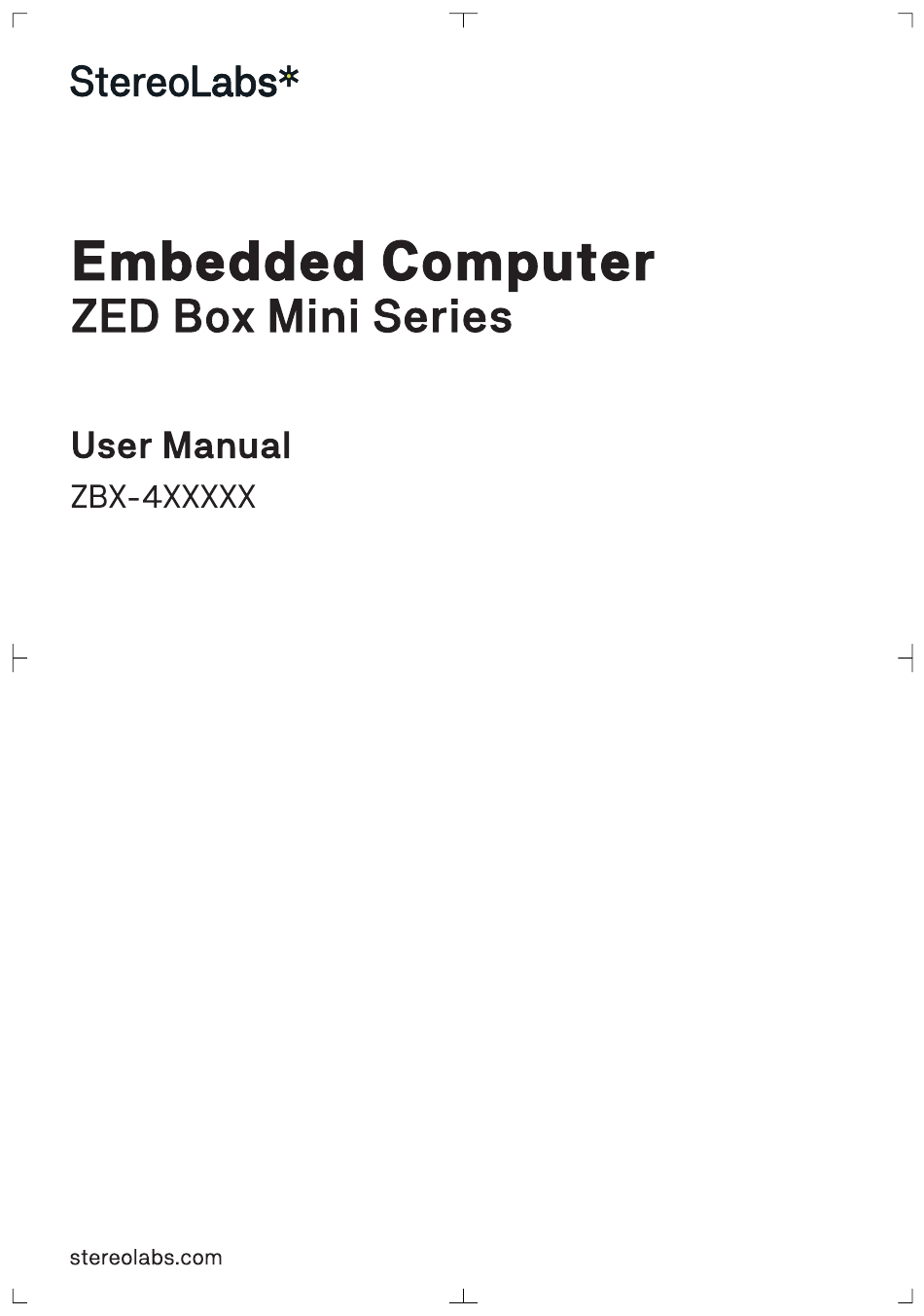

- Page 1 Embedded Comp ter ZED Box Mini Series User Manual ZBX-4XXXXX...
- Page 5 Ventilation Keep the device in a clean, dust-free environ ent to prevent overheating Software Updates Periodically check for fir ware and software updates fro Stereolabs to aintain syste security and stability Storage and Transport If the device is not in use for an extended period, disconnect the power supplQ Store the device in a cool, dry place...
- Page 8 1.4. Product Dimensions Note that all following dimensions are in millimeters ZED Box Mini ZED Box Mini with Fan...
- Page 12 %) Getting Started 3.1. Basic Operations 3.1.1. Plug in Power Suppl 3.1.2. Connect to our network using the Ethernet port 3.1.3. Connect to our displa using the HDMI port...
- Page 13 3.1.4. Connect your keyboar an mouse 3.1.5. Complete the operating system setup NVIDIA® JetsonTM embeds Linux for Tegra. To access the operating system, use the following access credentials : Identifier : user Password : admin 3.1.6. Connect your ZED cameras...
- Page 14 3.2. Fan Installation, mandatory for when operating in MAXN SUPE mode 3.2.1. Fan mounting on Fan support 3.2.2. Fan and Fan support mounting on the ZED Box Mini...
- Page 15 3.3. Multi-ZED Box Mini Deplo ment 3.2.1. Fan mounting on Fan support Coordinating multiple vision systems for large camera deployments is no longer a challenge. The ZED Box Mini’s camera synchronization over GMSL interfaces guarantees precise data alignment across multiple ZED Box Mini for the same capture.
