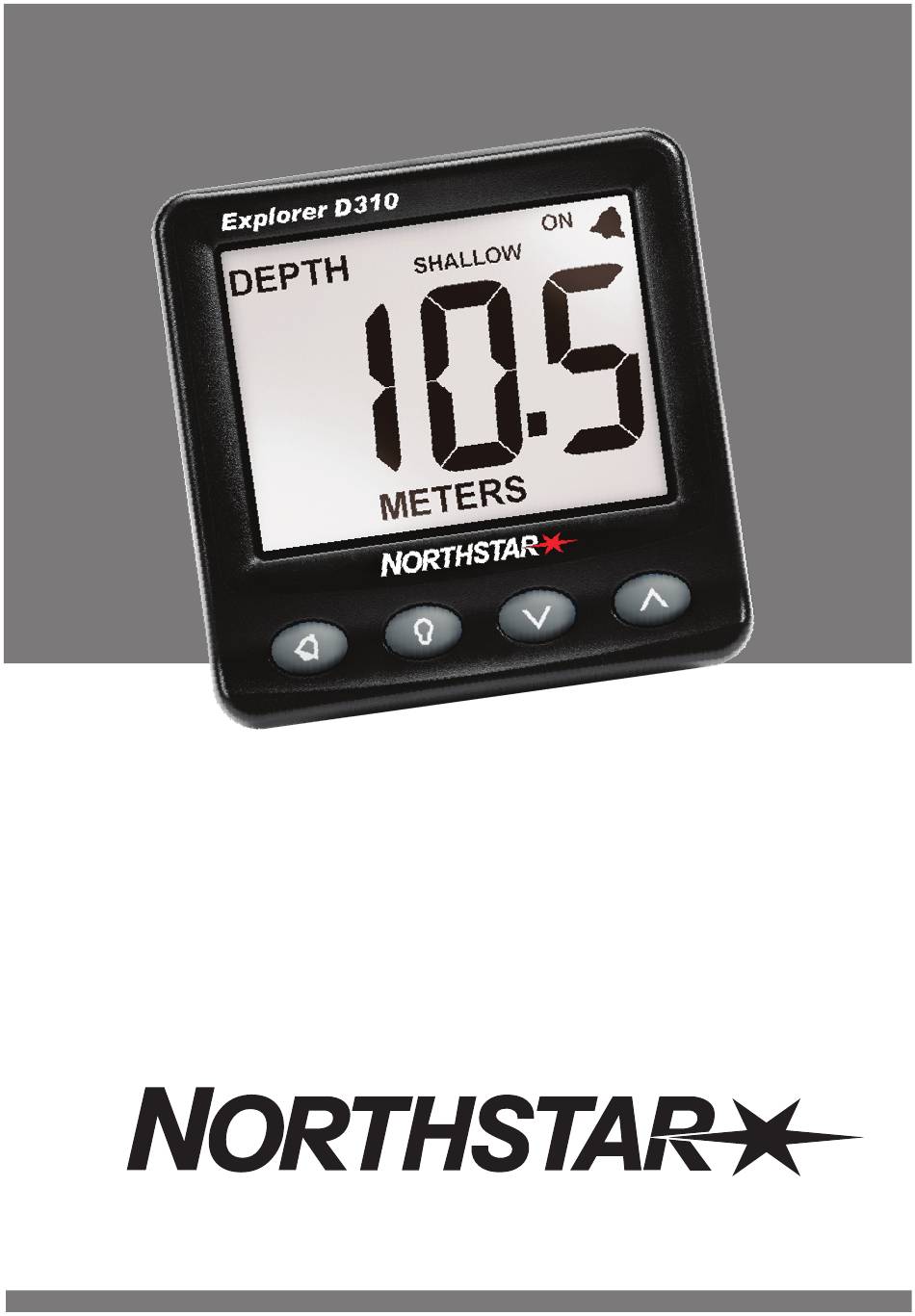

- Page 1 Explorer D310 Depth Instrument Installation and Operation Manual www.northstarnav.com Download from Www.Somanuals.com. All Manuals Search And Download.
- Page 2 Documentation. NAVICO HOLDING AS. AND ITS SUBSIDIARIES, This manual represents the Explorer D310 as at BRANCHES AND AFFILIATES DISCLAIM ALL the time of printing. Navico Holding AS. and its LIABILITY FOR ANY USE OF THIS PRODUCT IN A...
-
Page 3: Table Of Contents
Appendix B - Troubleshooting ..............11 Units The factory default units are metres. To change these units, please refer to section 3-1 of this manual. Download from Www.Somanuals.com. All Manuals Search And Download. Northstar Explorer D310 Installation and Operation Manual... -
Page 4: Introduction
The unit is powered from the boat’s power supply. pulse and receiving its echo. The Explorer D310 is part of the Northstar family of Cleaning and maintenance instruments for boats, which includes instruments Clean the display unit and any plastic transducers for speed, depth, wind and repeaters. -
Page 5: Alarms
Set backlight for screen and keys 2-3 Alarms You can set the backlight to one of four brightness The Explorer D310 can be set to sound an alarm levels or off. Press once to display the current when the water is too deep or too shallow (see sections 3-2 and 3-3). -
Page 6: Depth, Keel Offset, Too Deep Alarm, Too Shallow Alarm
To change the alarm depth, press To turn the alarm on or off, press Press To change the alarm depth, press To turn the alarm on or off, press Press Download from Www.Somanuals.com. All Manuals Search And Download. Northstar Explorer D310 Installation and Operation Manual... -
Page 7: Anchor Watch
Press to change the keel offset. Press 4 Systems of several instruments Several Northstar instruments can be connected together to share data. There are two ways of connecting instruments together, NavBus or NMEA. 4-1 NavBus NavBus and the Explorer D310... -
Page 8: Explorer D310 Hardware
(see section 4 or the NavBus Installation and Operation manual). 5-3 Transducer The Explorer D310 is usually used with a through hull depth transducer. However, the unit can take NavBus junction box 4 m (13 ft) depth... -
Page 9: Installation And Setup
Transducers shared (see section 4-1). Send and receive NMEA data from other If the Explorer D310 does not come with a DANGER transducer, choose a suitable transducer (see instruments (see section 4-2). section 5-3). If the Explorer D310 is supplied... -
Page 10: Set
NavBus Installation and Operation manual. Tape or cover any unused wires or connectors to protect them from water and keep them from shorting together. Download from Www.Somanuals.com. All Manuals Search And Download. Northstar Explorer D310 Installation and Operation Manual... -
Page 11: Appendix A - Specifications
Operating temperature 0 to 50°C (32 to 122°F). waterproof. Repairs to the unit must only be carried Transducer cable length 8 or 9 metres (26.25 or out by a service centre approved by Northstar. 29.5 ft). Users who service the unit themselves will void the Power Cable length 1 m (3.25 ft). - Page 12 FOR FURTHER CONTACT DETAILS GO TO: www.navico.com Made in New Zealand MN000626B-G Download from Www.Somanuals.com. All Manuals Search And Download.
- Page 13 Free Manuals Download Website h p://myh66.com h p://usermanuals.us h p://www.somanuals.com h p://www.4manuals.cc h p://www.manual-lib.com h p://www.404manual.com h p://www.luxmanual.com h p://aubethermostatmanual.com Golf course search by state h p://golfingnear.com Email search by domain h p://emailbydomain.com Auto manuals search h p://auto.somanuals.com TV manuals search h p://tv.somanuals.com...
