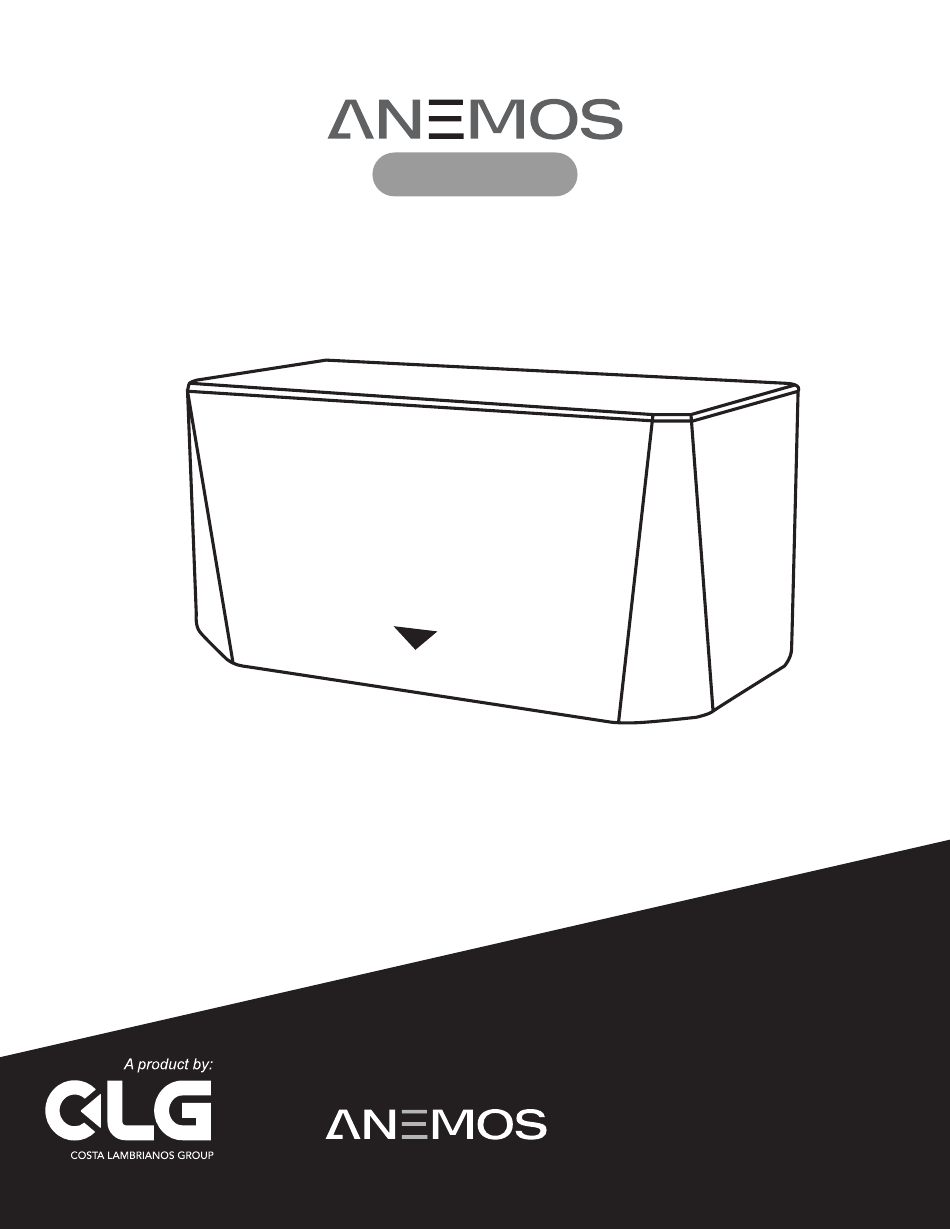

UV-C LAMP
Anemos Hand Dryer Series
00800, 00801
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or service the product
described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in
personal injury and/or property damage. Retain instructions for future reference.
Costa Lambrianos Group
Unit G1 Gewel Street
Isando Business Park,
Kempton Park,
Johannesburg,
1609
www.clghygienesupplies.co.za
Advertisement
Summary of Contents for ANEMOS 00800
- Page 1 UV-C LAMP Anemos Hand Dryer Series 00800, 00801 Please read and save these instructions. Read carefully before attempting to assemble, install, operate or service the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage.
- Page 2 Tech Details / Product Specifications This hand dryer is a new generation high speed hand dryer activated by infrared sensor and intelligent temperature control function. A compact hand dryer with a silver/graphite finish to elegantly match the rest of our stainless steel range of washroom equipment. FEATURES BENEFITS * Sleek Design...
- Page 3 Unpacking / Unboxing 1. Remove all packing material. Recycling is recommended. 2. U sing care not to drop the appliance. Carefully remove the hand dryer from the shipping carton. 3. Inspect carefully for any damage that might have occured during transit. Check for any loose, missing or damaged parts.
- Page 4 Remove the Front Cover 1. Place the main cover on a cloth to avoid marking its surface 2. Remove the [2] security screws from the main body, using the service tool [Allen-Key] 3. Lift the front cover off the main body Positioning CAUTION 1.
- Page 5 Remove the filter kit then fix the backplate to the wall. Screw to the wall and secure with the appropriate fitting. Replace the filter kit as shown in the next diagram. Heater Switch, Quiet (Q) Mode Switch & Air Sterilization (S) Mode 1.
- Page 6 Attaching Unit Reposition the front cover on the unit. Power Switch Insert and tighten the two security screws into the front cover Turn power switch “ON” Test the unit for correct operation. The LED light on the cover should flash x5 times with a red light after the power supply has been correctly connected and followed by continous white LED light Note: If the LED light remains off, the unit must be refitted correctly Installing Power Cable &...
- Page 7 1. Give power to the electrical system 2. Check the power switch on (Factory default setting “ON”) 3. Test the unit for correct operation. The LED light on the cover should flash x5 times with a red light after the power supply has been correctly connected and followed by a continous light white LED. Note: Ensure the LED light on the front of the unit is OFF before opening the front cover, if the LED light is still ON, wait until the light goes off.
- Page 8 UV-C Lamp Replacing 1. Remove the filter cover and filter 2. Remove the two screws on the UV-C lamp and pull out the UV-C lamp wire jack from the UV light board The sterilisation function of UV-C lamp will be weakened after 3 years of usage, UV-C lamp needs to be replaced for maintaining proper operation.
- Page 9 Maintainance & Cleaning WARNING: Lift the unit off the wall mounting bracket before maintainence or repair. Regular Maintainence Regularly clean the outer casing. Use a soft, damp cloth to gently wipe away any dirt. CAUTION: Never use abrasives or chemicals to clean the cover. Do not soak in water.8 Periodical Deep Clean 1.
- Page 10 Warranty Anemos Range of products – 60months warranty against manufacturing defects on all ANEMOS units from date of invoice. WARRANTY POLICY Warranty claims are subject to the following terms and conditions: • All warrantee claim approvals and repairs will be done at Costa Lambrianos (PTY) Ltd. Workshop at address Unit G1, Gewel Street, Isando Business Park, Kempton Park by our technical team.
