XT5 Handlebar Clamp Kit Installation Instructions
Kit Contents
669786 Handlebar Clamp........................2
400110 Screw, Hex Head 1/4"-20 x 7/8" ..4
444830 Nut, Hex, 1/4"-20 Nylock ............4
669788 Installation Instruction Sheet ......1
REMOVE SCREW TO
REMOVE DIRECTION
HANDLE
Use the following instructions to install the XT5
Step 1. Prepare XT5 for kit installation.
● Locate the machine on a level surface, stop engine.
Step 2. (See Figure 1) Remove the direction control
handle from the handlebar.
● First disconnect the control cable by removing the
pin that connect the cable yoke to the direction
handle.
DO NOT DISTURB THE CABLE ADJUSTMENT
Qty
● Remove the socket head screw on the left side of
the control handle and remove the control handle
from the handlebar.

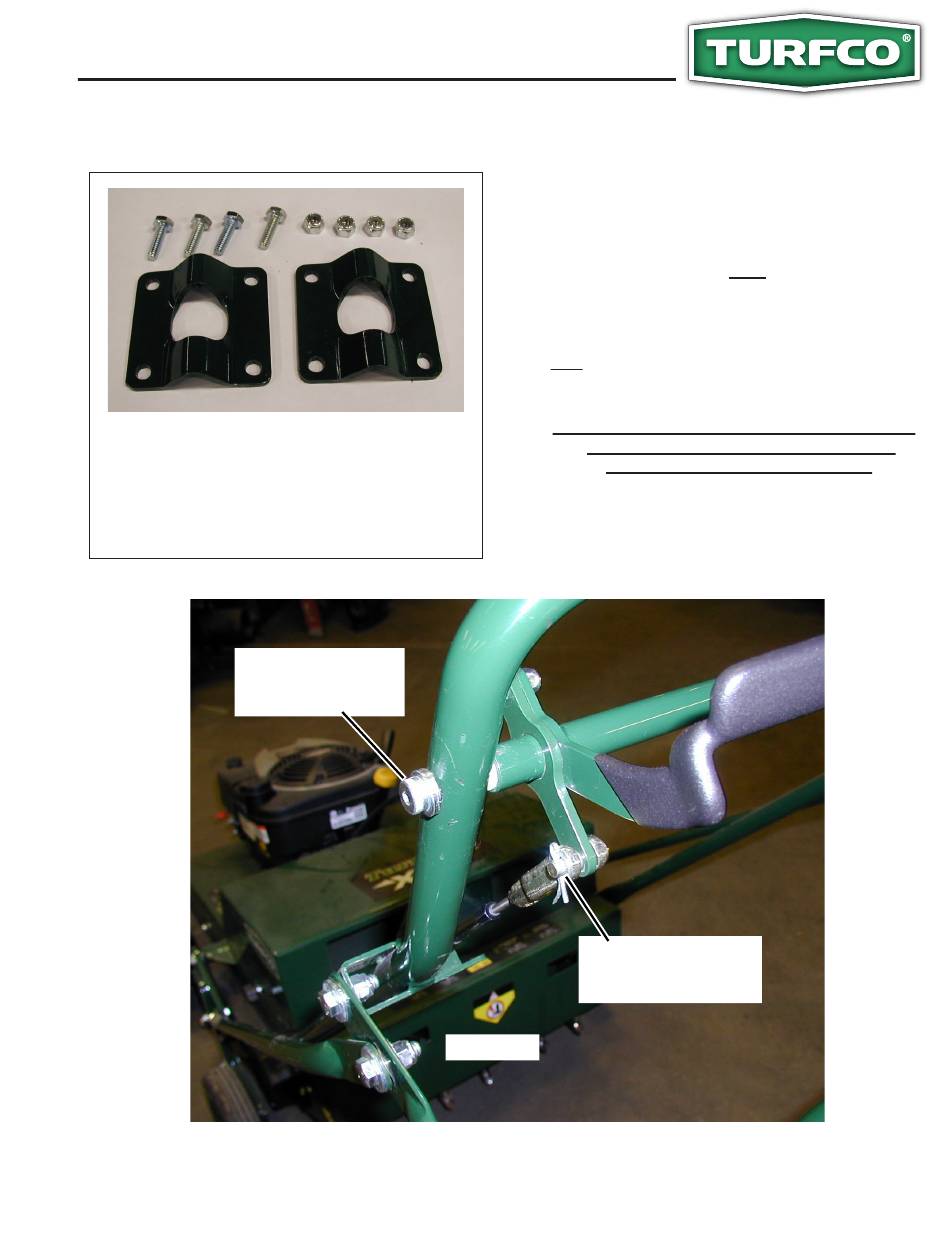

Figure 1
Handlebar Clamp Kit.
AT THE YOKE OR WHERE THE CABLE
ATTACHES TO THE HANDLEBAR.
FIRST DISCONNECT
CONTROL CABLE BY
REMOVING PIN
AS669787-02

Advertisement

loading
Need help?

Need help?

Do you have a question about the XT5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TURFCO XT5

  • Page 1 XT5 Handlebar Clamp Kit Installation Instructions Use the following instructions to install the XT5 Handlebar Clamp Kit. Step 1. Prepare XT5 for kit installation. ● Locate the machine on a level surface, stop engine. Step 2. (See Figure 1) Remove the direction control handle from the handlebar.
  • Page 2 ● Check that forwards and backwards operating speeds are correct. Handle returns to “neutral” when released. ● If needed, adjust the cable. Refer to instruction in the service section of the XT5 operators manual. Figure 3 AS669787-04 Instruction Sheet 669788 0114...
