Summary of Contents for Nalnor HRQ-GATE

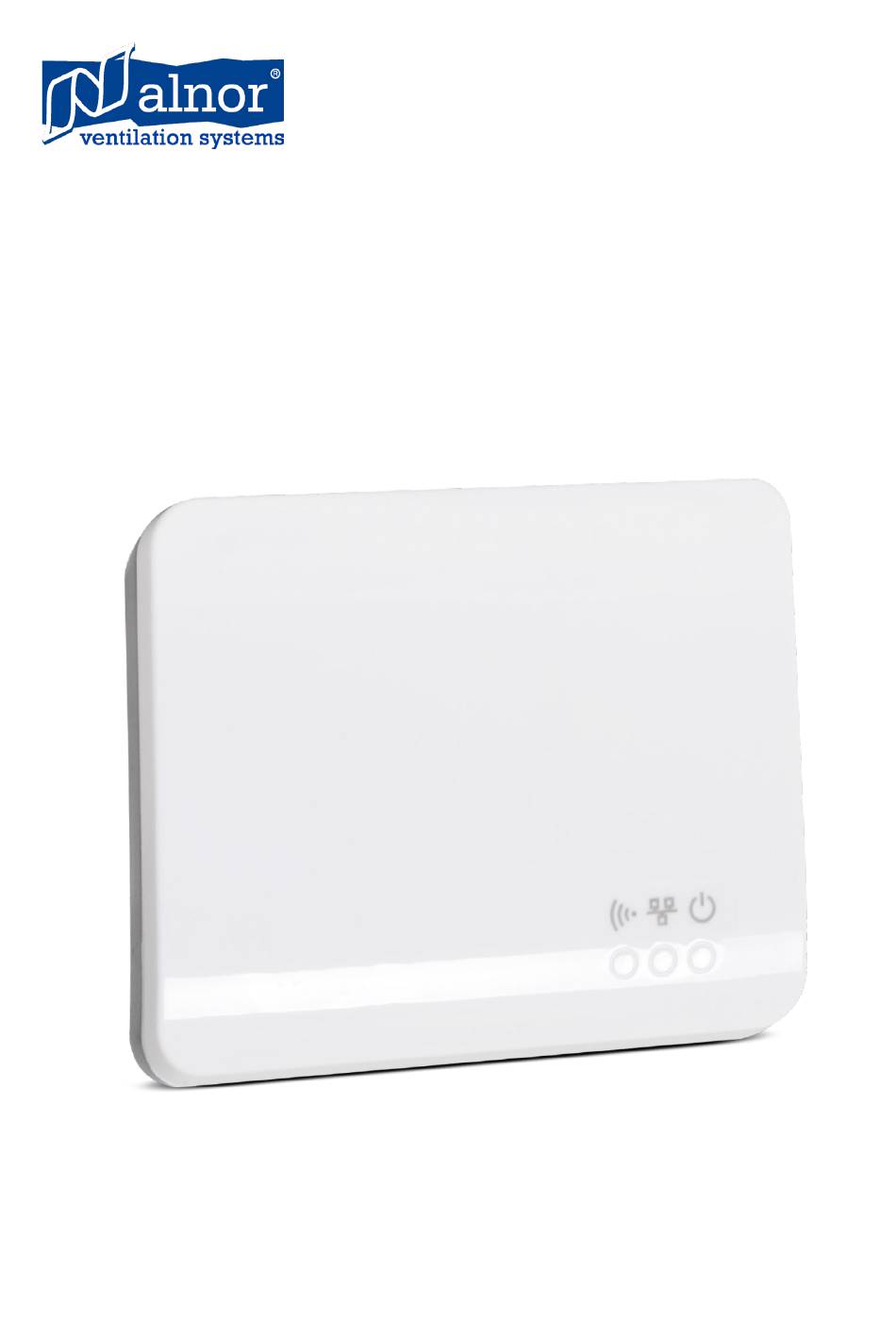

- Page 1 User manual Internet module reset HRQ-GATE...
-
Page 2: Table Of Contents
User manual Table of contents Information on the manual ..........................3 1.1. Description of the system ........................3 1.2. How to use the manual........................... 3 1.3. Original manual ............................3 Technical data ..............................3 2.1. Construction ............................. 3 3.1. Reset module ............................4 3.2. -
Page 3: Information On The Manual
1.2. How to use the manual This manual is intended as a reference book by which qualified installers can install the HRQ-GATE and all optional device as well. This device must be used according to its purpose. Make sure you have read and understood the manual before you install and/or use the device. -
Page 4: Reset Module
Resetting the Internet module will forget all assigned devices and restore the device to factory settings. 3.2. Connection Connect the HRQ-GATE with the Ethernet cable to the router. Connect the power adapter with the USB cable to the device and power supply. After a few seconds the power LED will light up. - Page 5 User manual Register new account a) Select the “Register Now” box from the application's main menu b) Enter username(will be used to log in) Enter e-mail adress d) Password / Confirm password...
- Page 6 User manual Log in with your registration informations...
-
Page 7: Internet Gateway Configuration
User manual 3.4. Internet Gateway configuration Connect gateway to the network NOTE: The mobile device on which the application is installed and the Internet gateway must be connected to the same Internet network. - Page 8 User manual Scan the QR code or manually enter the code on the back of the gateway.
- Page 9 User manual...
- Page 10 Once the gateway is properly configured, a message should appear...
-
Page 11: Adding Heat Recovery Unit Or External Sensor
User manual 3.5. Adding heat recovery unit or external sensor 1. From the previous window, select the “Add Product” button to select more system components. The example shows the addition of a heat recovery unit. Step 1 – Select product... - Page 12 User manual Step 2 – Follow the commands described on the screen and press the 'Next' button.
- Page 13 User manual The correct addition of a product should be confirmed with the following message.
- Page 14 User manual Incorrectly adding a product will show the following message.
-
Page 15: Adding More Components
User manual 3.6. Adding more components Further system components are added from the “Devices” tab by selecting the “plus” sign. -
Page 16: Troubleshooting
User manual 3. Troubleshooting Urządzenie posiada trzy diody komunikacyjne na froncie Symptom Cause Solution not lit No Radio communication Perform the binding procedurę again not lit No internet connection 1. Perform gateway registration 2. Check the wired Ethernet/ Internet connection not lit No power Connect the USB power adapter... - Page 17 User manual Manufacturers and importers fulfil their responsibilities for recycling, processing and environmentally compatible disposal either directly or by participating in collective systems.
