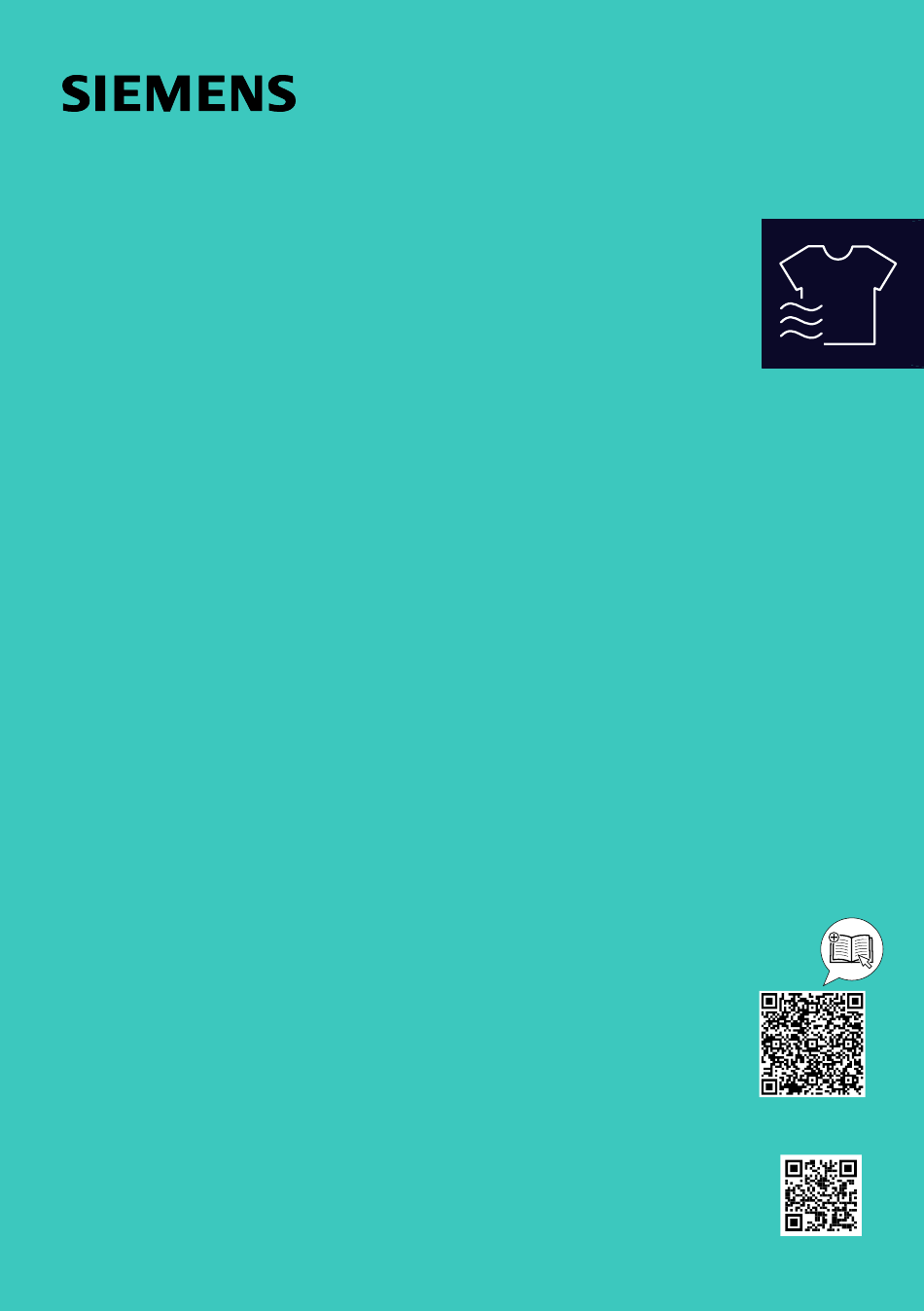

- Page 1 WT45HV0FDN Tumble dryer EN User manual and installation instructions Register your appliance on My Siemens and discover exclusive services and offers. Siemens Home Appliances...
-
Page 2: Table Of Contents
en Table of contents You can find additional information and explanations online. Scan the QR code on the title page. Table of contents Table of contents 1 Safety .......... 3 11 Basic operation ....... 2 0 1.1 General information... -
Page 3: Safety
Safety en 18.1 Product number (E-Nr.) and 19 Consumption values .... 3 3 production number (FD) .. 3 3 20 Technical data ...... 3 6 1 Safety Safety Observe the following safety instructions. 1.1 General information ¡... -
Page 4: Safe Installation
en Safety 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. Connect and operate the appliance only in accordance with the specifications on the rating plate. Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. The protective conductor system of the domestic electrical in- stallation must be properly installed. - Page 5 Safety en WARNING ‒ Risk of injury! The heavy weight of the appliance may result in injury when lifted. Do not lift the appliance on your own. If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall. Only stack the dryer on a washing machine using the connec- tion kit from the dryer manufacturer .
-
Page 6: Safe Use
en Safety 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. Never operate a damaged appliance. Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. If the appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box. - Page 7 Safety en Detergents and care products may result in poisoning if con- sumed. If accidentally swallowed, seek medical advice. Keep detergents and care products out of the reach of children. WARNING ‒ Risk of fire! The refrigerant R290 in this appliance is environmentally friendly yet combustible and may ignite if it comes into contact with open flames or ignition sources.
-
Page 8: Safe Cleaning And Maintenance
en Safety CAUTION ‒ Risk of injury! The covering plate may break if you stand on or climb onto the appliance. Do not stand on or climb onto the appliance. The appliance may tip over if you sit on or lean against the open door. -
Page 9: Preventing Material Damage
Preventing material damage en WARNING ‒ Risk of poisoning! Poisonous fumes may be given off if you use cleaning agents that contain solvents. Do not use cleaning agents that contain solvents. fluff guard is incomplete or defective, 2 Preventing material this may result in damage to the ap- Preventing material damage damage pliance. -
Page 10: Saving Energy
en Installation and connection 3.2 Saving energy damage and damage to the appli- ance. If you follow these instructions, your Remove these objects, along with appliance will use less power. all supplied accessories, from the Operate the appliance in a well- drum before starting the appliance. ventilated room and keep the vent- Remove any packaging and pro- ilation opening on the appliance... -
Page 11: Aligning The Appliance
Installation and connection en ATTENTION Against a wall If the appliance is tilted at an angle greater than 40°, residual water may leak out of the appliance and cause material damage. Tilt the appliance carefully. Transport the appliance in an up- right position. -
Page 12: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Check the mains plug is inserted The appliance is now ready for properly. use. 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. -
Page 13: Control Panel
Display en 5.2 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. Page 16 Page 13 Programmes Display Programme selector Buttons Page 15 Page 20 6 Display Display The display shows the current settings, options or relevant information. Depending on the programme status, the display shows some information in area, e.g. - Page 14 en Display Indicator Description 0:40 1 Expected programme duration or programme time re- maining in hours and minutes. Page 17 1:25 The timed programme is set. 1 Program end time "Buttons", Page 15 Lights up: The childproof lock is activated. Flashes: The childproof lock is activated and the appli- ance has been operated.
-
Page 15: Buttons
Buttons en 7 Buttons Buttons Below is an overview of the buttons and their setting options. Button Selection Description Start Start, cancel or pause the Cancel programme. Pause 3 Sec. Activate Activate or deactivate the Deactivate childproof lock. Disable the control panel to prevent unwanted or accidental operation. -
Page 16: Programmes
en Programmes Button Selection Description The programme duration is already included in the set number of hours. Once the programme has started, the programme duration is displayed. Multiple selection Set the programme dura- tion for timed pro- grammes. "Timed programmes", Page 17 Note: The laundry's care labels 8 Programmes provide you with additional informa-... -
Page 17: Timed Programmes
Programmes en Programme Description Max. load (kg) Energy-saving programme. Strygelet Ekstra skab- Dry items made of synthetic materials or størt (Easy Care Cup- blended fabrics. board Dry Extra) The dryness level is defined in this pro- Page 24 gramme. Strygelet Skabstørt Dry items made of synthetic materials or (Easy Care Cupboard blended fabrics. -
Page 18: Accessories
en Accessories Programme Description Max. load (kg) Uldfinish (Wool Finish) Dry machine-washable items made of wool or containing wool. Note: The laundry becomes fluffier but not dry. Remove laundry once the programme has ended and allow it to dry. Tidsprogram koldt Fluff/loosen all fabric types except for (Time Program Cold) wool and silk. -
Page 19: Laundry
Laundry en Order number Wool basket Dry or air individual wool- WZ20600 len items, sports shoes and soft toys. Y-distributor Connect the water outlet 15000490 hose of an additional ap- pliance to the same si- phon outlet. Water outlet hose Drain away excess con- WZ20160 densation directly into the waste water system,... -
Page 20: Basic Operation
en Basic operation Open the door. Symbol Fabrics impermeable and rubber- coated fabrics, synthetic curtains 11 Basic operation Basic operation 11.1 Switching on the appli- ance Requirement: The appliance has been correctly installed and connec- 11.4 Loading laundry Page 10 ted. Note: To prevent creasing, note the Turn the programme selector to a maximum load for the programmes. -
Page 21: Adding Laundry
Basic operation en 11.6 Adding laundry while the appliance is in operation, clean the fluff filter after the pro- After the programme starts, you can gramme end. remove or add laundry at any time. Note: If you do not clean the appli- Press ance as described, the appliance's The cooling process starts auto-... -
Page 22: Filter System On The Base
en Basic operation Open the two fluff filters and re- Close the two fluff filters and put move the fluff them together. Dispose of the fluff with the house- Insert the two-part fluff filter. hold waste in order to prevent the water from being contaminated with microplastics. - Page 23 Basic operation en If you do not clean the appliance Clean the filter mat thoroughly un- as described, the appliance's func- der warm, running water and tionality may be impaired. squeeze it out by hand. Requirement: The display shows the following during operation: Page 21 .
-
Page 24: Condensation Container
en Dryness level Page 28 Close the base unit. If the drying programme is paused, Page 20 start the programme. 11.12 Condensation container Inserting the condensation con- Condensation that forms in the appli- tainer ance as it dries the laundry is collec- Push the condensation container ted by default in the condensation in as far as it will go. -
Page 25: Changing The Dryness Level
Childproof lock en 13.1 Activating the childproof Programme Description lock Bomuld Stry- For normal, single- getørt (Cotton layered laundry. Press on both 3 Sec. buttons Iron Dry) The laundry is still for approx. 3 seconds. Strygelet Stry- slightly damp after the The display shows getørt (Easy programme ends. -
Page 26: Changing The Basic Set
en Cleaning and servicing 15.1 Base unit No basic setting. The base unit is the accessible area Set the spin speed of the wash- at the bottom of the appliance in ing machine: which you will find the heat ex- 1 600 (low) to 1800 (high) changer. - Page 27 Cleaning and servicing en Pull out the heat exchanger cover Lift the middle tab on the insert by the handle. slightly. Pull the insert out horizontally. Cleaning the base unit You can remove any visible dirt in the base unit. CAUTION Risk of cutting! Touching sharp edges on the heat exchanger may lead to cuts.
-
Page 28: Moisture Sensor
en Cleaning and servicing Clean the opening with a soft, Close the lever for the heat ex- damp cloth. changer. Push the insert in horizontally until Close the maintenance flap. the tab clicks into place. 15.2 Moisture sensor Page 28 Close the base unit. ... -
Page 29: Troubleshooting
Troubleshooting en Note: If you do not clean the appli- Clean the moisture sensor with a ance as described, the appliance's sponge. functionality may be impaired. Open the door. 16 Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. - Page 30 en Troubleshooting Fault Cause and troubleshooting and programme Water outlet hose is blocked. terminated. Rinse the water outlet hose with tap water. A foreign object is in the base unit. Page 26 Open the base unit. Remove any foreign objects. Page 28 Close the base unit.
- Page 31 Troubleshooting en Fault Cause and troubleshooting The laundry is too The selected programme is unsuitable for the type of damp. fabric. Set a time programme for subsequent drying. Page 17 The load is too large. Observe the programme's maximum load capacity. Page 16 ...
-
Page 32: Transportation, Storage And Disposal
en Transportation, storage and disposal Fault Cause and troubleshooting Water is leaking from The seal for the heat exchanger cover is dirty. the appliance. Clean the seal for the heat exchanger cover. Page 22 Water outlet hose is not connected correctly. Check the installation of the water outlet hose. -
Page 33: Customer Service
Customer Service en Nr.) and the production number (FD) plicable throughout the of your appliance. You can find the contact details for our customer service via the QR 18 Customer Service code on the enclosed document on Customer Service service contacts and warranty condi- Function-relevant genuine spare parts tions or on our website. - Page 34 en Consumption values Programme Final Load Spin Initial Pro- Energy mois- (kg) speed mois- gramm con- ture (rpm) ture e dura- sump- level level tion tion (h:min) (kWh/ cycle) Bomuld Ekstra skab- -3.0 1400 3:52 2.10 størt (Cotton Cup- board Dry Extra) Bomuld Ekstra skab- -3.0 1400...
- Page 35 Consumption values en Programme Final Load Spin Initial Pro- Energy mois- (kg) speed mois- gramm con- ture (rpm) ture e dura- sump- level level tion tion (h:min) (kWh/ cycle) 1400 3:00 1.50 1400 1:53 0.91 1 1000 3:25 1.74 1000 2:05 1.02 3:50 1.98...
-
Page 36: Technical Data
en Technical data Programme Final Load Spin Initial Pro- Energy mois- (kg) speed mois- gramm con- ture (rpm) ture e dura- sump- level level tion tion (h:min) (kWh/ cycle) Strygelet Strygetørt 12.0 1:27 0.70 (Easy Care Iron Dry) Nominal power 600 W 20 ... - Page 40 EN Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom BSH Hausgeräte GmbH Carl-Wery-Straße 34...
