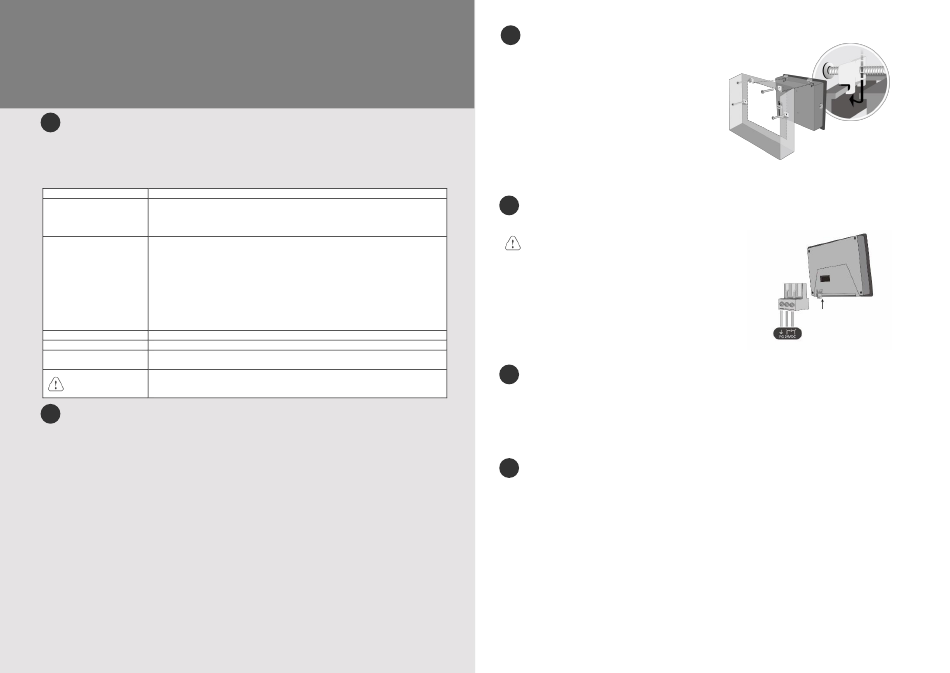

cMT3218XP series
1
Installation and Startup Guide
This document covers the installation of cMT3218XP Series HMI, for the detailed specifications and
operation, please refer to Datasheet, Brochure and EasyBuilder Pro User Manual. Please read all
warnings, precautions, and instructions on the device carefully before use.
Install Environment:
NEMA Rating
The HMI product is NEMA 4 rated (indoor use only).
The
HMI product has been tested to conform to European CE
requirements. This means that the circuitry is designed to resist the effects
Electrical Environment
of electrical noise. This does not guarantee noise immunity in severe
cases. Proper wire routing and grounding will insure proper operation.
(1) Make sure that the units are installed correctly and that the operating
limits are followed. Avoid installing units in environments where
severe mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental
flammable gases, vapors or dusts.
Considerations
(3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on
the flat surface enclosure.
(5) For use in Pollution Degree 2 Environment and dry location.
(6) Relative Humidity: 10% ~ 90% (non-condensing)
Altitude
3,000 m
IP Rating
IP 66
Cleaning
Clean the device using dry cloths. Do not use liquid or spray detergents for
Considerations
cleaning.
Protection impairment if used in a manner not specified by the
manufacturer.
Warning
Déficit de protection si utilisé d'une manière non spécifiée par le fabricant.
Unpacking the Unit
2
Unpack and check the delivery. If damage is found, please contact the supplier.
NOTE:
Place the operator panel on a stable surface during installation. Dropping it or letting it
fall may cause damage.
The package includes:
(1) Installation Instruction, 2-sided A4 *1
(2) Human Machine Interface *1
(3) Power Connector *1
(4) Brackets & Screws *1 pack
Installation Instruction
3
Installation Instructions
Use a control box that provides enough stiffness.
Cutout Dimension: 532 mm x 340 mm. Secure the
operator panel in position, using all the fastening holes
and the provided brackets and screws. Screw Torque:
2.6 ~ 3.9 lbf.in. (For reaching waterproof effect and
preventing the panel from being deformed.)
Plan for adequate space around the unit and inside the
enclosure, for ventilation and cables. Consider the heat
from other devices inside the enclosure. The ambient
temperature around the unit must be 0 ~ 50°C.
Minimum required clearances (along the overlay):
Top 15 mm / Bottom 15 mm / Sides 15 mm
Maximum panel thickness: 12 mm
4
Power Connections
Power Connector Specifications:
Wire AWG: 24~12
Wiring Conductor Minimum Temperature: 75°C
Screw Torque: 4.5 lbf-in (max.)
Copper conduct only.
Spécifications du connecteur d'alimentation:
AWG de fil: 24 ~ 12
Température minimale du conducteur de câblage: 75°C
Couple de vis: 4.5 lbf-in (max.)
Conducteur en cuivre seulement
NOTE:
Connect positive DC line to the '+'
terminal and the DC ground to the '-' terminal.
5
System Settings
When the HMI powers up and displays an image, tap the round Start Button in the upper-left corner to
open the Setting page. To configure the network, go to the Network tab, tap "configure", and a login
window will appear. The settings can be modified by entering the system password (default: 111111).
In the Setting page, you can see device information, configure general settings, set HMI
Time/Date/Name, and more.
EasyBuilder Pro Software Settings
6
Launch EasyBuilder Pro software, select your project file, press F7 shortcut key to open the download
dialog box: Select Ethernet > IP tab > Enter your HMI IP > Click Download to download this project
file to HMI.
Using screensaver and backlight saver is recommended in order to avoid image persistence caused
by displaying the same image on HMI for a long time.
Flash memory has a limited write lifespan, and frequent data writing (e.g., Event Log, Data Sampling)
can accelerate degradation. Consider write frequency and lifespan management in system design to
prevent data loss. Refer to "3.2.1. Prolong the Lifespan of Flash Memory" in the Product Security User
Manual for guidance.
(Please refer to EasyBuilder Pro User Manual for software operation details.)
