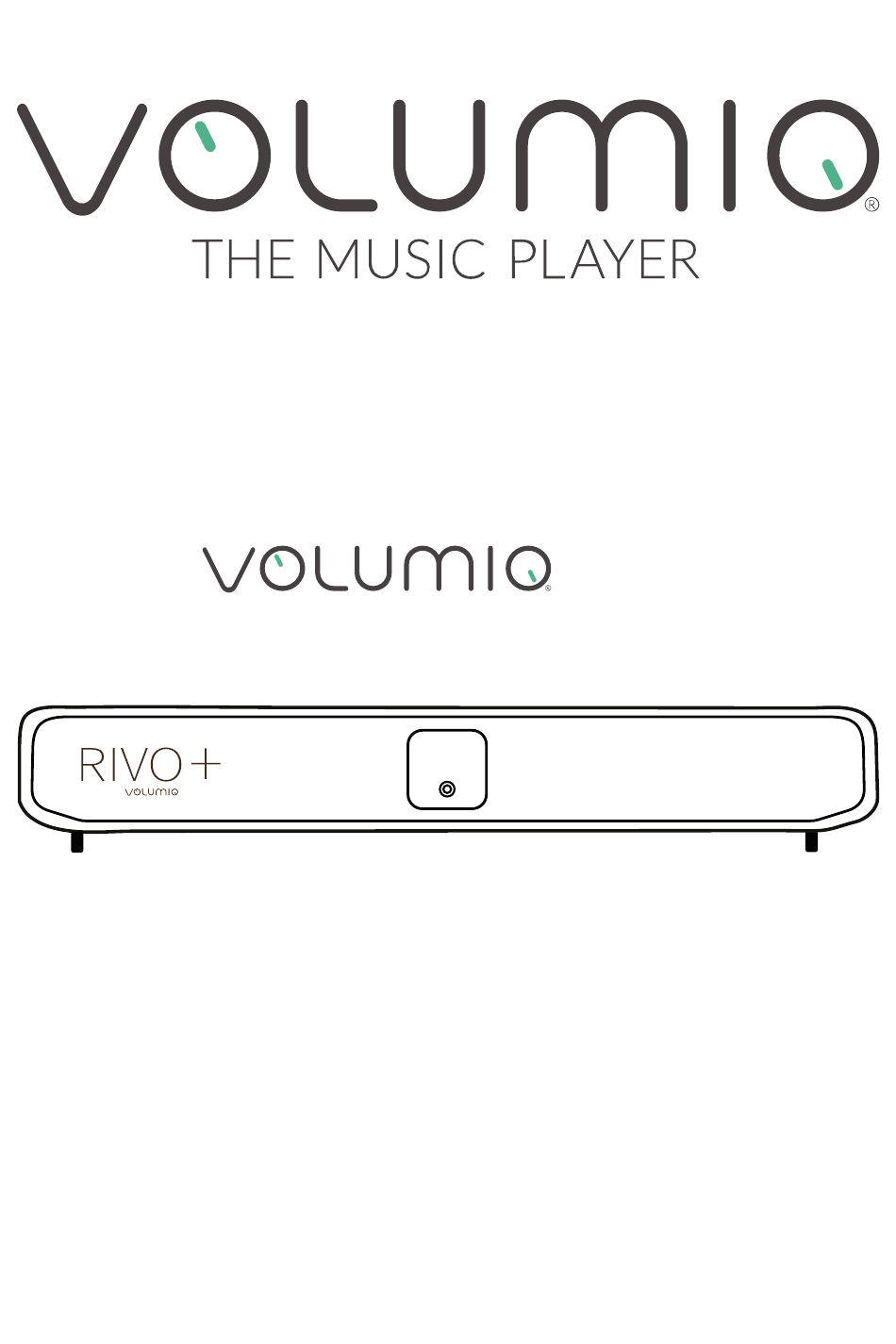

- Page 1 RIVO+ Audiophile Music Player Transport Audiophile Music Player Transport USER MANUAL ENGLISH...
- Page 2 FOR MUSIC LOVERS, BY MUSIC LOVERS...
- Page 4 INTRODUCTION Congratulations on your purchase! Volumio Rivo+ is an integrated audiophile music player transport designed with three key principles in mind: ease of use, universal compatibility with music sources and sound quality. To take full advantage of Rivo+’s capabilities, please read this manual carefully.
-
Page 5: What's In The Box
WHAT’S IN THE BOX? • Volumio Rivo+ audiophile music player transport • 5V 3A Switching Power Supply* • NFC Information Card (*) Power Adapter is optional, depending on the region and local seller’s policy. I\O OVERVIEW USB type-c (not used) - Page 6 WI-FI ANTENNAS: Rivo+ has two integrated wi-fi antennas to ensure optimal wireless performances on 2.4/5GHz network. USB 3.0: this port can be used to attach USB hi-speed drives, such as SSD, or digital sources such as CD drives. GIGABIT NETWORK: Wired Network interface. This is the suggested network connection for playing Hi-Resolution content.
-
Page 7: Front Panel Overview
FRONT PANEL OVERVIEW The front panel has a single square button • Short press from Power-off state: Turn the device on • Short press from Ready State: Enter standby mode • Short press from Stand-by State: Enter ready mode • Long press for 5 seconds: Turn the device off The colored led will show the status of the device. -
Page 8: First Setup
Rivo+ is the Android/iOS APP. Alternatively: • You can connect a 4K/60fps screen/touchscreen to the HDMI video output port. • You can type the http://volumio.local name previously selected in the First Setup Wizard, in the web addresses bar of your favourite web browser. -
Page 9: Software Updates
A free MyVolumio account is however required if you want to add more functions with plugins, available for free in the Volumio plugin store. In short, Volumio OS is all about making your music sound great, easy to use, and comes with cool features ready to go if you have Rivo+. -
Page 10: Restore To Factory Settings
RESTORE TO FACTORY SETTINGS Volumio Rivo+ can be reset to factory settings and all settings and music stored on the device will be deleted (no changes will be made on the software version!) There are two ways to perform a Factory Reset: •... -
Page 11: Specifications
SPECIFICATIONS XLR AES/EBU output: up to PCM 192kHz/24bit, DSD64 (DoP Mode) COAX S/PDIF output: up to PCM 192kHz/24bit, DSD64 (DoP Mode) I2S/DSD over HDMI output: up to PCM 768kHz/32bit, DSD256 USB: 1X USB 2.0 , 1X USB 3.0 (memory units dedicated), 1X USB 2.0 5V power filtered (DAC dedicated), up to PCM 768kHz/32bit, DSD256 CPU: Amlogic S905D3-N0N x4, Quad Core Cortex A55, 1.9GHz RAM: 2GB DDR4... - Page 12 I2S/DSD over HDMI specs The I2S/DSD over HDMI digital output can be configured to match the pin assignment of most of the DACs available on the market, selecting the corresponding brand in the Playback Options menu. Details on the pin assignment can be found in the table below: PIN NUMBER TYPE DESCRIPTION...
-
Page 13: Important Safety Information
IMPORTANT SAFETY INFORMATION • Review this user manual carefully. • Keep this user manual for future reference. • Heed all warnings. • Follow all instructions. • Do not use the Rivo+ near water or liquids of any sort. • Clean only with dry soft cloth. Household cleaners or solvents can damage the finish of the Rivo+. - Page 14 this apparatus to rain or moisture. • Do not expose apparatus to dripping or splashing and do not place objects filled with liquids, such as vases, on or near the apparatus. • AC outlet voltages vary from country to country. Before connecting to the mains, make sure that the voltage in your area meets the voltage requirements printed on the power supply.
-
Page 15: Warranty
The Volumio Warranty is valid for all new products purchased from an officially authorized Volumio retailer or from our online store (volumio. - Page 16 20$ no more than the cost of preparing and mailing a DVD to you. Please contact foss@volumio.org This offer is valid to anyone in receipt of this information. Additionally, complete source code of open source components included in this product is available at: http://sources.volumio.org...
-
Page 17: Disposal Information
DISPOSAL INFORMATION For private households: Information on Disposal for Users of WEEE This symbol on the product(s) and / or accompanying documents means that used electrical and electronic equipment (WEEE) should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of... -
Page 18: Copyright And Trademarks
Volumio is a registered Trademark of Michelangelo Guarise. This guide was produced by: Volumio Srl © 2024. All rights reserved. Volumio Srl Borgo Albizi 15... - Page 19 Contains FCC ID: 2AVFM-VIM3 FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 20: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY Model Name: Volumio Rivo+ EU DIRECTIVES 2014/53/EU, Radio Equipment 2011/65/EU, RoHS... - Page 21 EU DECLARATION OF CONFORMITY Model No. : Volumio Rivo+ This declaration of conformity is issued under the sole responsibility of the manufacturer: Volumio Srl Borgo Albizi 15 50122 Firenze ITALY Object of the declaration: Audiophile Music Player Transport The object of the declaration described above is in conformity with:...
- Page 22 EN Emissions: Radiated ETSI EN 301489-1 V. 2.2.3 ETSI EN 301489-17 V. 3.2.4 CEI EN 55032:2015 +/A11:2021 Emissions: Conducted ETSI EN 301489-1 V. 2.2.3 ETSI EN 301489-17 V. 3.2.4 CEI EN 55032:2015 +/A11:2021 Emissions: Radio Requirements ETSI EN 301893 V.2.1.1 Emissions: Radio Requirements ETSI EN 300328 V.2.2.2 Emissions:...
- Page 23 Where applicable, the notified body (name and number), description of intervention and certificate Not applicable, the declaration of conformity is compliant with annex II of the European Directive 2014/53/EU, so the notified body it’s not necessary. Signed for and on behalf of Volumio Srl Firenze, November, 15, 2024 RIVO+...
- Page 24 Volumio SRL Borgo Albizi 15, 50121 Firenze, ITALY volumio.com...
